Technical Guidance Notes
©2007 Siemens Protection Devices Limited Page 13 of 29

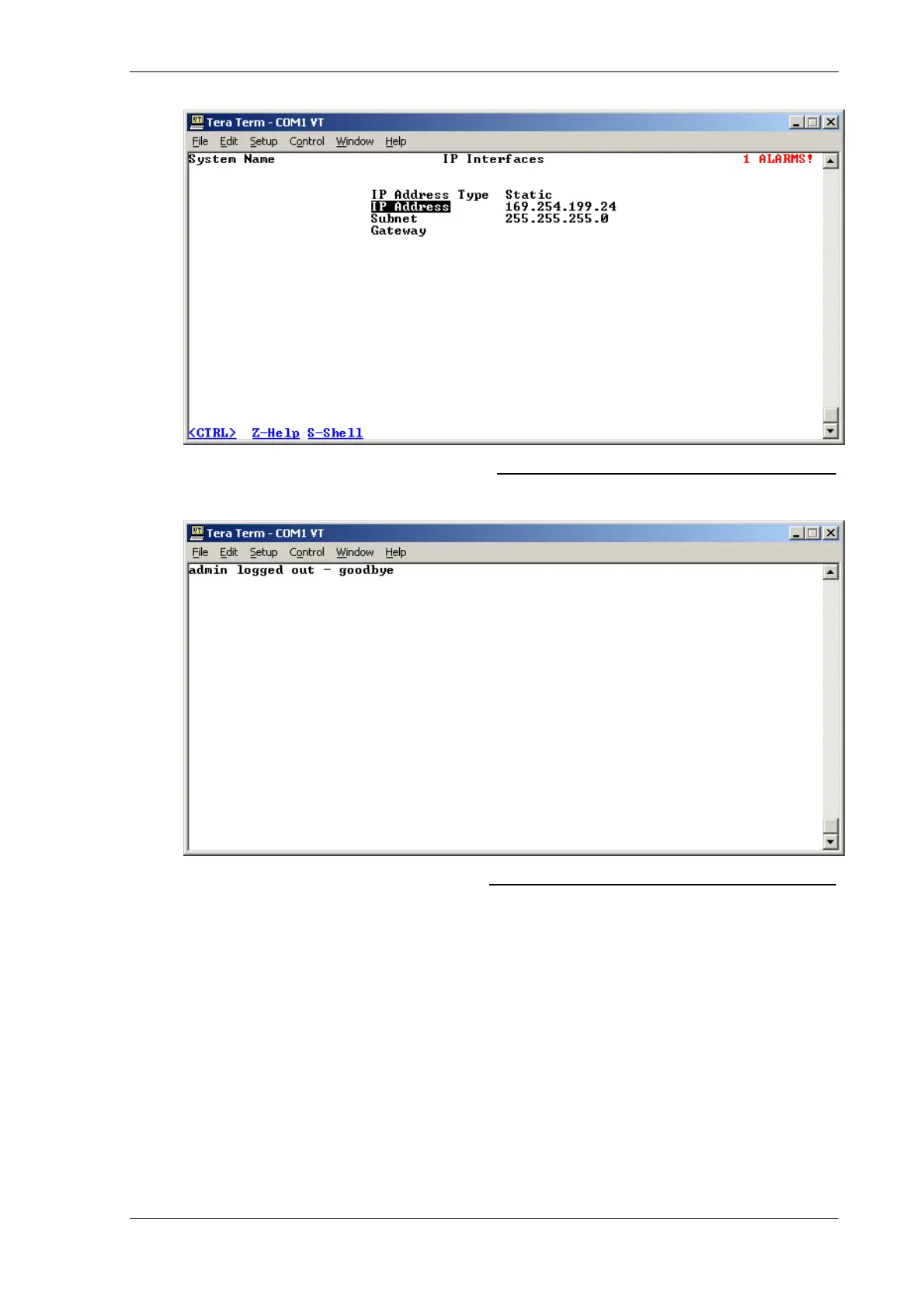

Figure 13 – RMC30 IP Address Changed
Press CTRL+X to exit the logout.
Figure 14 – RMC30 Admin Logout Screen
Reboot the RMC30
3.2 CONFIGURE RMC30 MODBUS PARAMETERS
To configure parameters, start up a web browser and attach to the IP address set in section 3.1, in this
example 169.254.199.24. You will be presented with the initial page as shown below.
