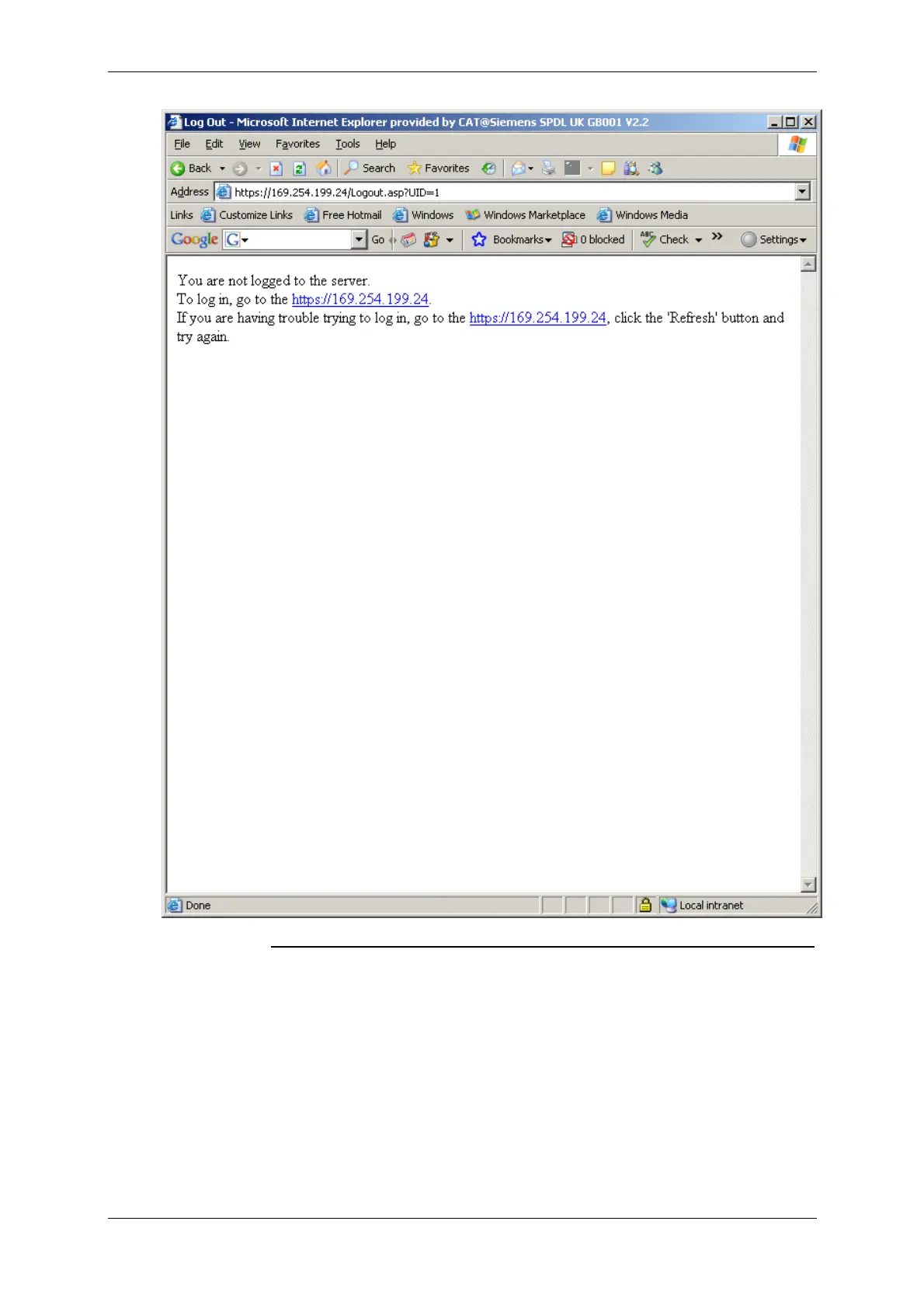

Figure 23 – RMC30 RMC30 Browser Interface –Logged Out Page
3.3 CONFIGURE RMC30 DNP3 PARAMETERS
If you have not already done so, set the IP address as described in section 3.1.
After setting the IP address start the web browser and login. From the Main Menu open the Serial
Protocols page, refer back to Figure 17 – RMC30 Browser Interface – Serial Protocols Menu. Then
click Serial ports. Set the protocol to be DNP3 and the baud rate, parity etc. to be those you intend to
use with the relay, see example below.
