Technical Guidance Notes
©2007 Siemens Protection Devices Limited Page 23 of 29

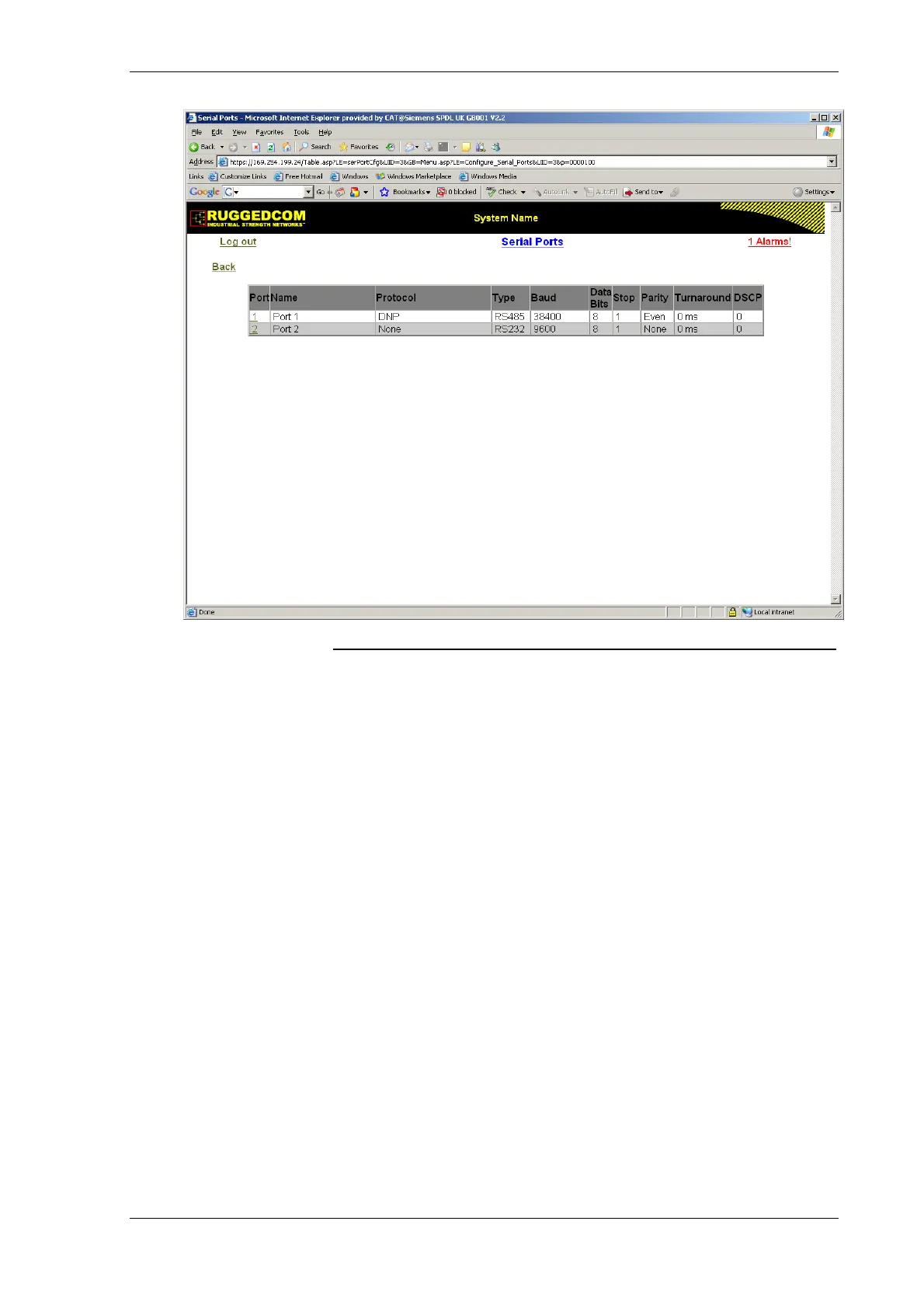

Figure 24 – RMC30 Browser Interface – Serial Port for DNP3
Click the link “Back” to return to the Main Menu and then click Configure Device Address Table to add
devices.
You need to add two devices, one for the PC (or Master) and one for the IED device.
In the example shown below I have given the PC address 3 and used its IP address (169.254.199.21)
when adding to the table.
