RUGGEDCOM RS910
Installation Guide
Chapter 3
Communication Ports
Copper Ethernet Ports 15
Communication Ports
The RUGGEDCOM RS910 can be equipped with various types of communication ports to enhance its abilities and
performance.
1
2
3

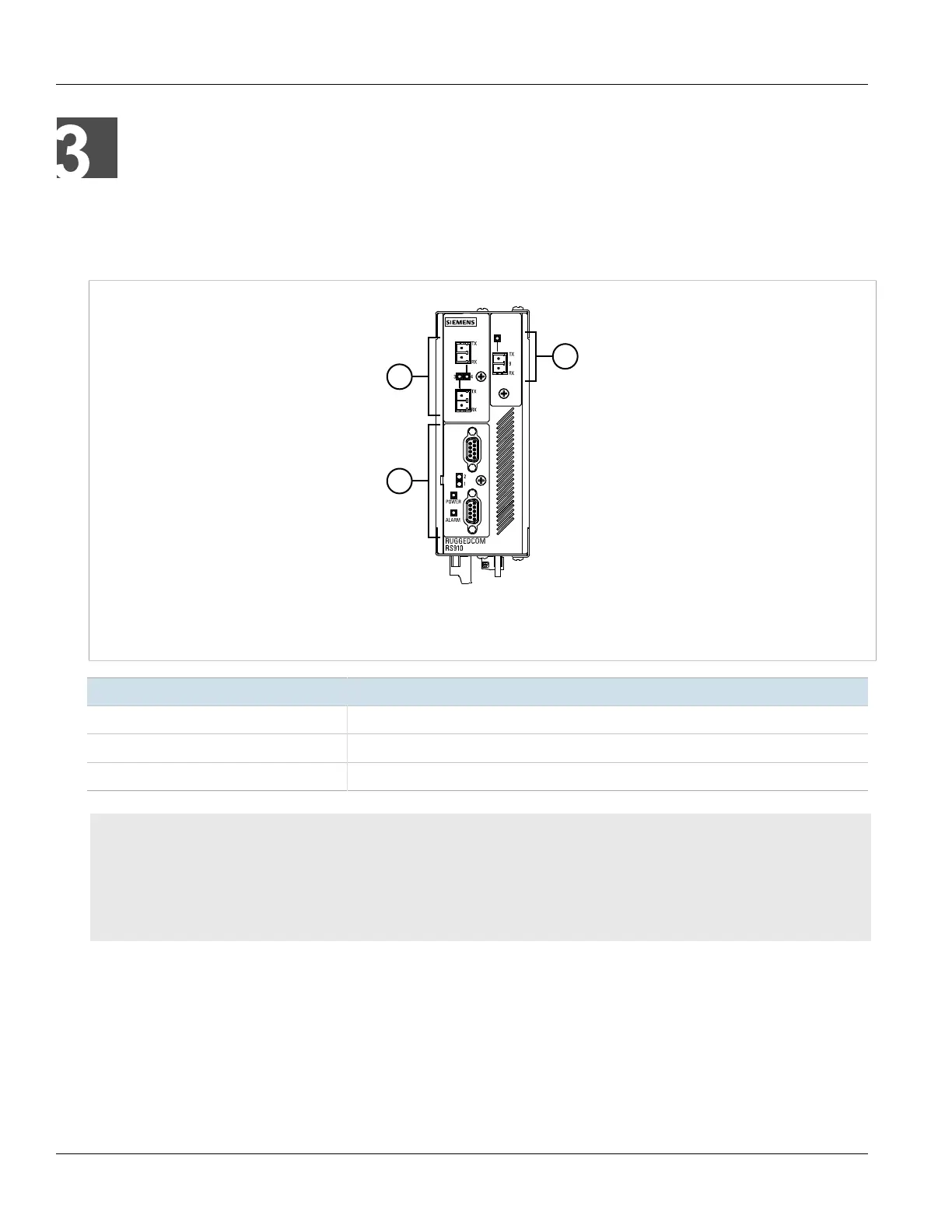

Figure9:Port Assignment
1.Ports 1 and 2 2.Ports 3 and 4 3.Port 9
Port Type
1 and 2 Serial Ports
3 and 4 Copper (10/100Base-TX) or Fiber Optic (10/100Base-FX) Ethernet Ports
9 Fast Ethernet Port (10/100Base-TX or 10/100Base-FX)
CONTENTS
• Section3.1, “Copper Ethernet Ports”
• Section3.2, “Fiber Optic Ethernet Ports”
• Section3.3, “Serial Ports”
• Section3.4, “Connecting Multiple RS485 Devices”
Section3.1
Copper Ethernet Ports
The RUGGEDCOM RS910 supports multiple 10/100Base-TX Ethernet ports that allow connection to standard
Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with RJ-45 male connectors. The RJ-45 receptacles are
directly connected to the chassis ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
