Chapter 3
Communication Ports
RUGGEDCOM RS910
Installation Guide
16 Copper Ethernet Ports
WARNING!
Electric shock hazard – risk of serious personal injury and/or equipment interference. If shielded
cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the
RJ-45 receptacles at either end. Ground loops can cause excessive noise and interference, but more
importantly, create a potential shock hazard that can result in serious injury.
LEDs
Each port features a Speed and Link/Activity LED that indicates the state of the port.

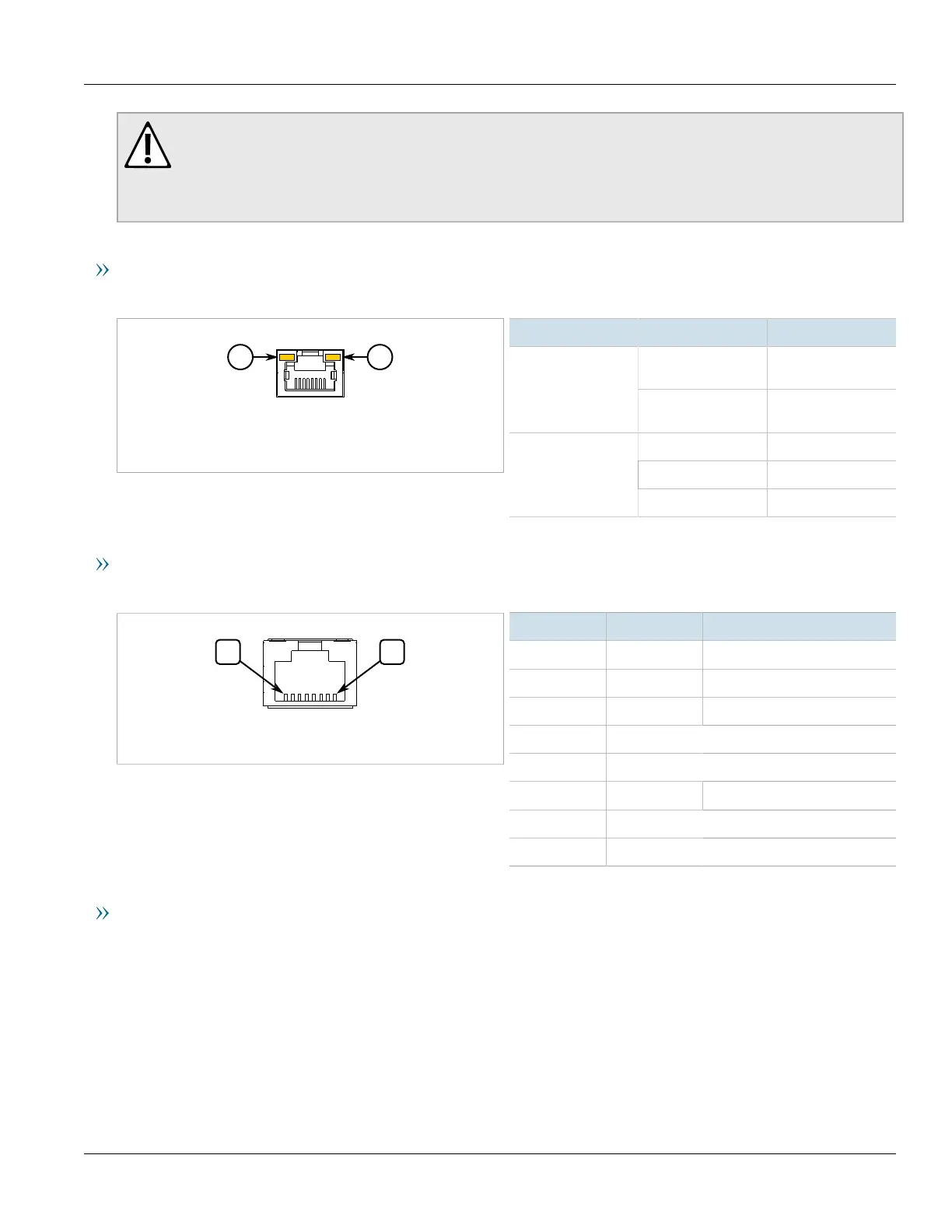

Figure10:RJ45 Port LEDs
1.Speed LED 2.Link/Activity LED
LED State Description
Yellow The port is operating
at 100 Mbps
Speed
Off The port is operating
at 10 Mbps
Yellow (Solid) Link established
Yellow (Blinking) Link activity
Link/Activity
Off No link detected
Pin-Out
The following is the pin-out for the RJ-45 male connectors:
Figure11:RJ-45 Ethernet Port Pin Configuration
Pin Name Description
1 RX+ Receive Data+
2 RX- Receive Data-
3 TX+ Transmit Data+
4 Reserved (Do Not Connect)
5 Reserved (Do Not Connect)
6 TX- Transmit Data-
7 Reserved (Do Not Connect)
8 Reserved (Do Not Connect)
Specifications
For specifications on the available copper Ethernet ports, refer to Section4.3, “Copper Ethernet Port
Specifications” .
