10/57 CC1B7865en 05.12.2002 HVAC Products
3. Installation
If several controllers are mounted side-by-side or above one another in a control panel,
minimum spacing must be observed: 30.5 mm vertically and 10.5 mm horizontally.
٭
Place the seal supplied with the unit onto the controller housing.
G
The unit must be installed with the seal so that no water or oil can penetrate
the housing!
٭
Insert the controller from the front into the panel cutout.
7865z08/0200
٭

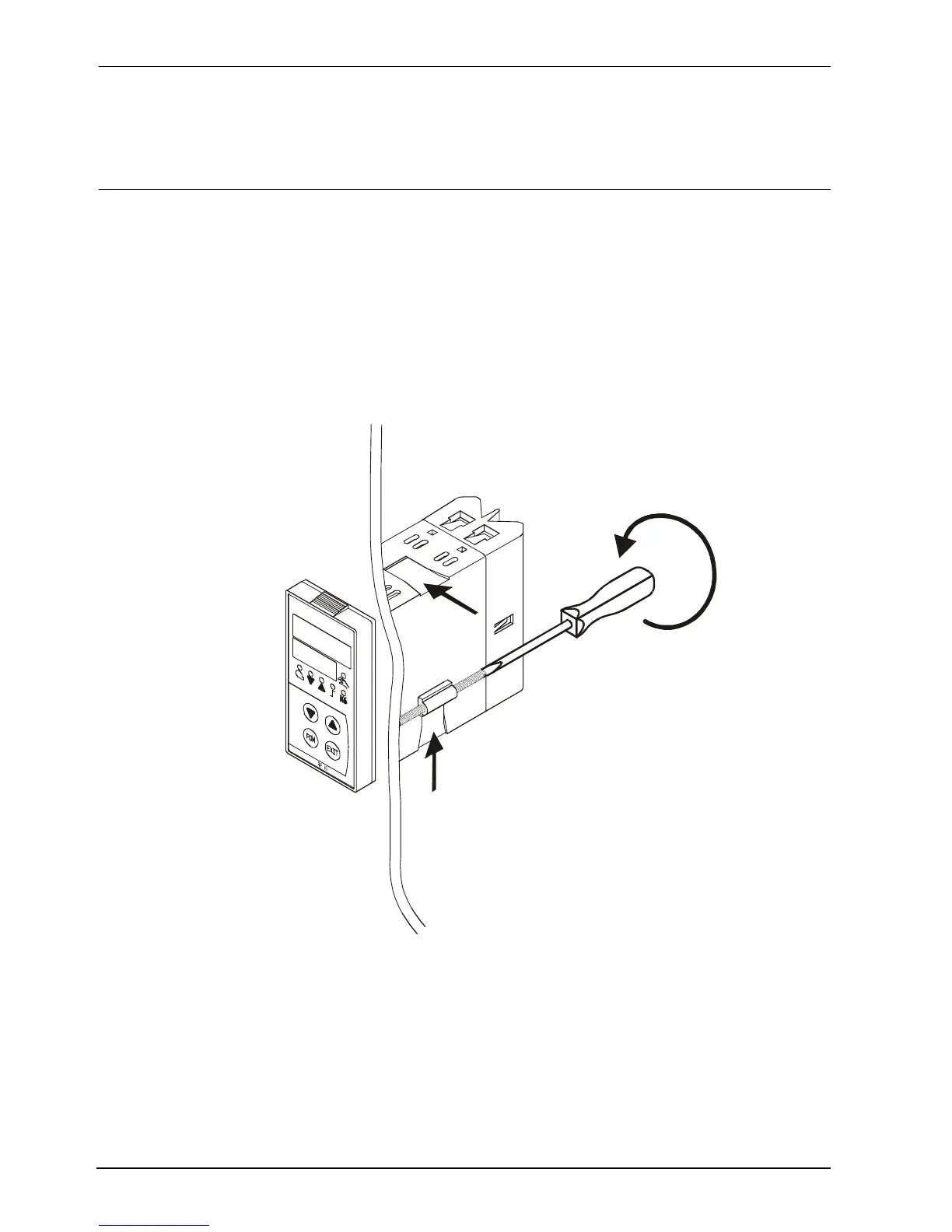

At the rear of the panel, push the fixing elements into the guide slots from the side
or top. The flat faces of the fixing elements must rest on the housing.
٭
Place the fixing elements against the rear of the panel and tighten them with a
screwdriver.
3.3 Side-by-side
3.4 Mounting in a panel cutout
