HVAC Products CC1B7865en 05.12.2002 9/57
3. Installation
- The installation site should be free from vibrations, dust and corrosive media
- The controller should be installed away from sources of electromagnetic fields, such
as variable speed drives or high-voltage ignition transformers
Relative humidity: < 95 % (noncondensing)
Ambient temperature range: -20...+50 °C
Storage temperature range: -40...+70 °C
48
96
91,5
K6
PGM
EXIT
RWF40
112
Panel cut-out to DIN 43 700
45
92
+0,6
+0,8
43,5
127,5
15,5
7865m01e/1200
3.1 Installation site and climatic conditions

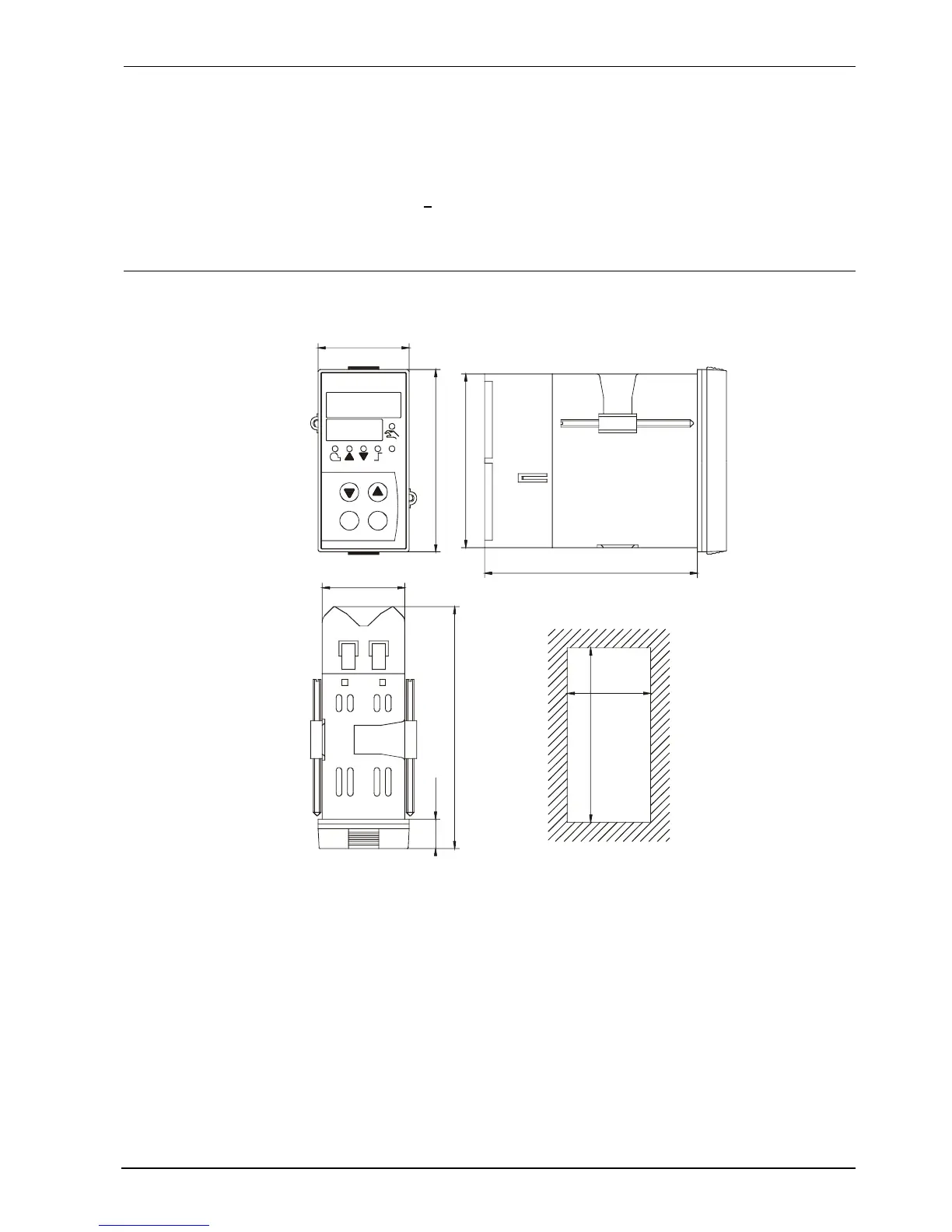

3.2 Dimensions
