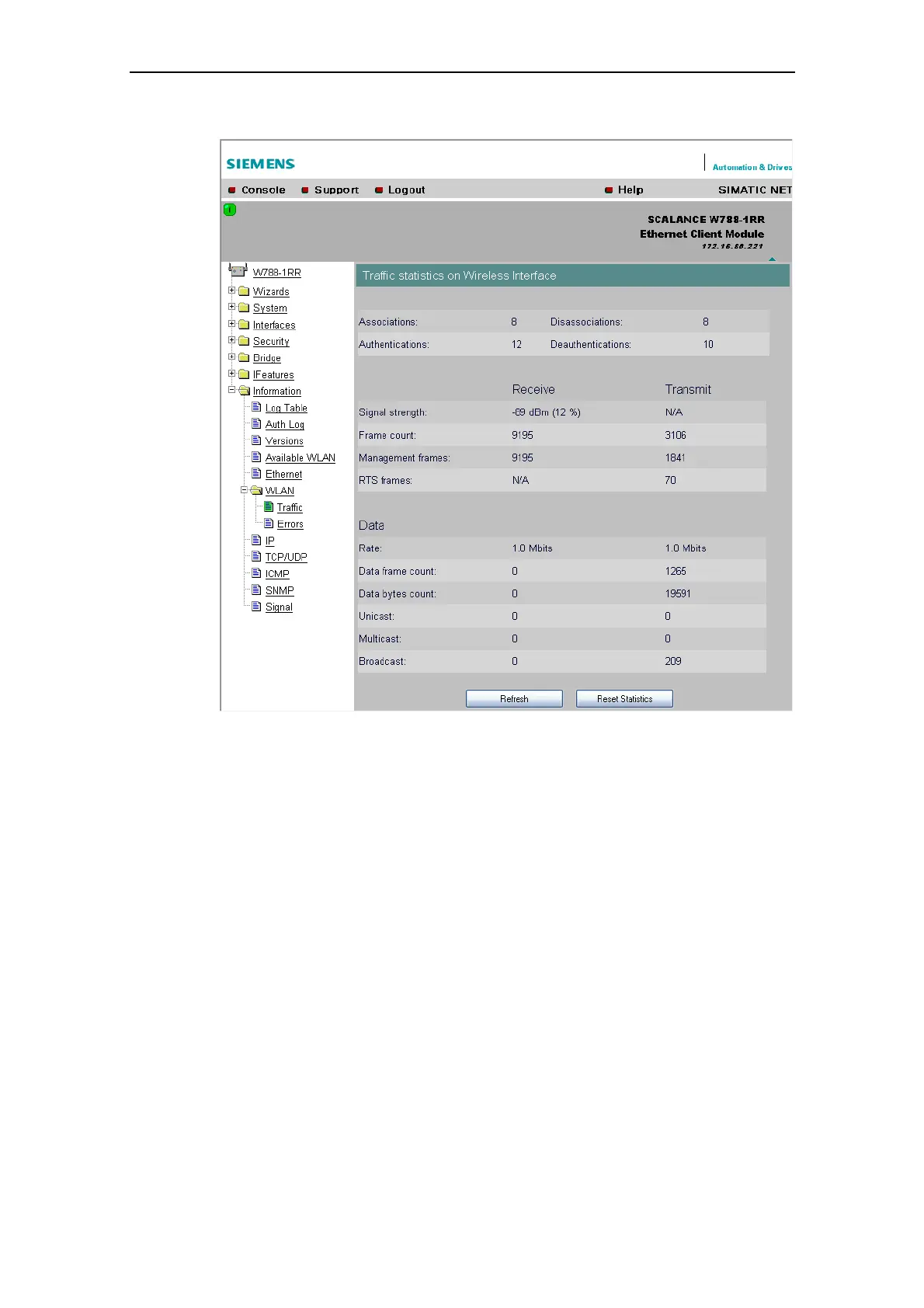

Configuration Using Web Based Management and the Command Line Interface
●
on is made between
the registration frames Association and Authentication and the deregistration
● Signal strength
ived frames or at
the sending end of the last received Acknowledge frames.
● Frame count
Counter for all successfully received or sent frames.
● Management frames
Counts all received or sent management frames.
● RTS frames
Is incremented when a CTS frame is received in response to an RTS frame.
● Rate
Displays an average data rate of the most recently received or sent data
frames.
Association / Authentication Frames
The frames relevant for registration are counted. A distincti
frames Disassociation and Deauthentication.
The signal strength is displayed as an average of the last rece
Operating Instructions SCALANCE W78x
233
C79000-G8976-C184-07
