View of a SCALANCE XM416-4C device

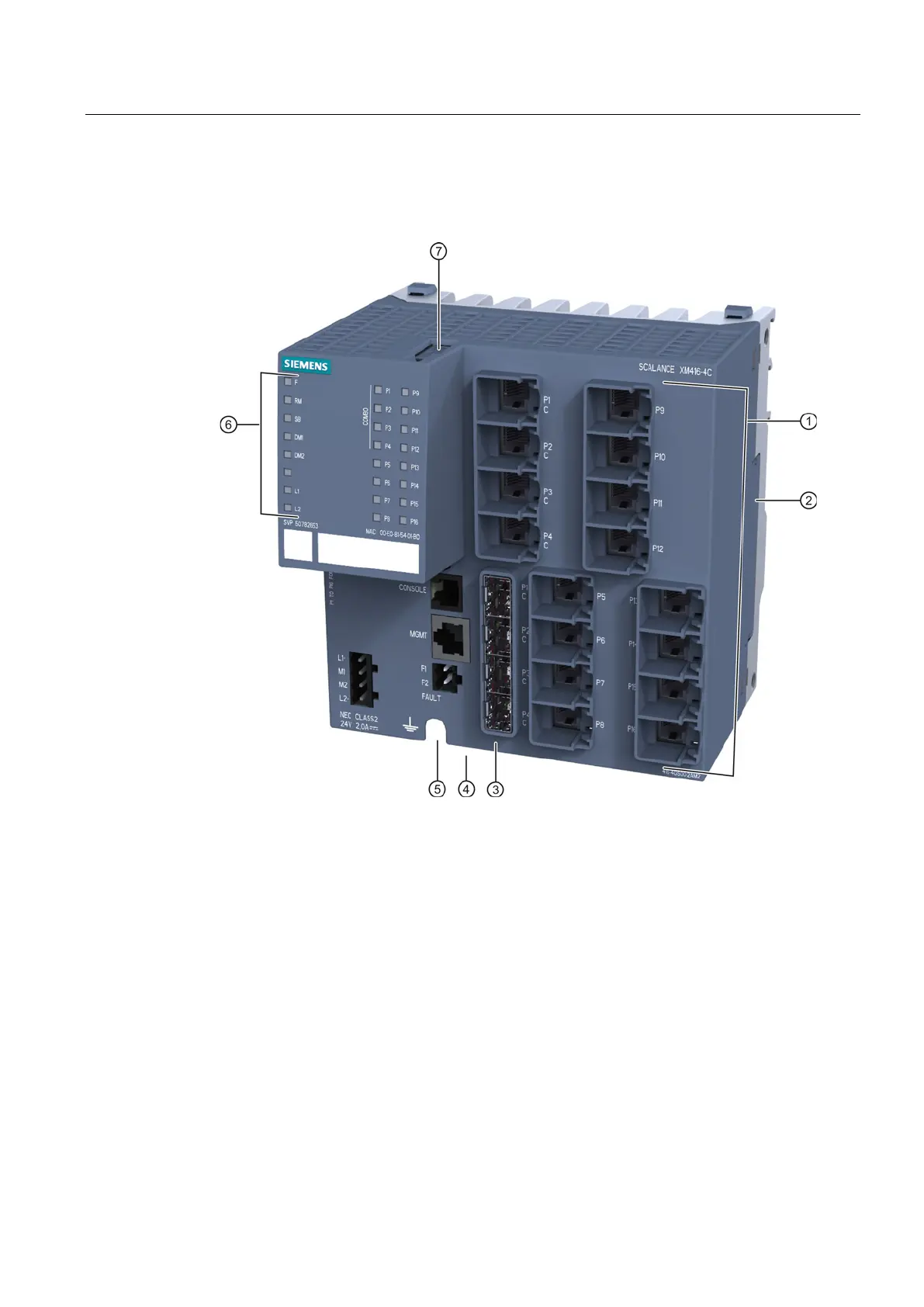

The following figure shows an overview of the components of the SCALANCE XM416-4C.
①
Electrical ports
②
Expansion interface with cover
③
Slots for SFP transceivers
④
Location for securing to an S7 standard rail
⑤
Grounding
⑥
LED display
⑦
Slots for C-PLUG / KEY-PLUG
