4.5 Serial interface
SCALANCE XM-400
Operating Instructions, 05/2014, C79000-G8976-C306-03
51
4.5
Serial interface
Information on the serial interface
● Via the serial interface on the device (RJ-11 jack), you can access the CLI of the device
directly via an RS-232 (115200 8N1) connection without assigning an IP address.
● Access to the device is also possible independent of the Ethernet ports.
● To connect the serial interface to the PC, you require a cable with an RJ-11 plug and 9-
pin D-sub female connector. The connecting cable for the serial interface ships with the
device and can also be ordered as a spare part.
Position and assignment

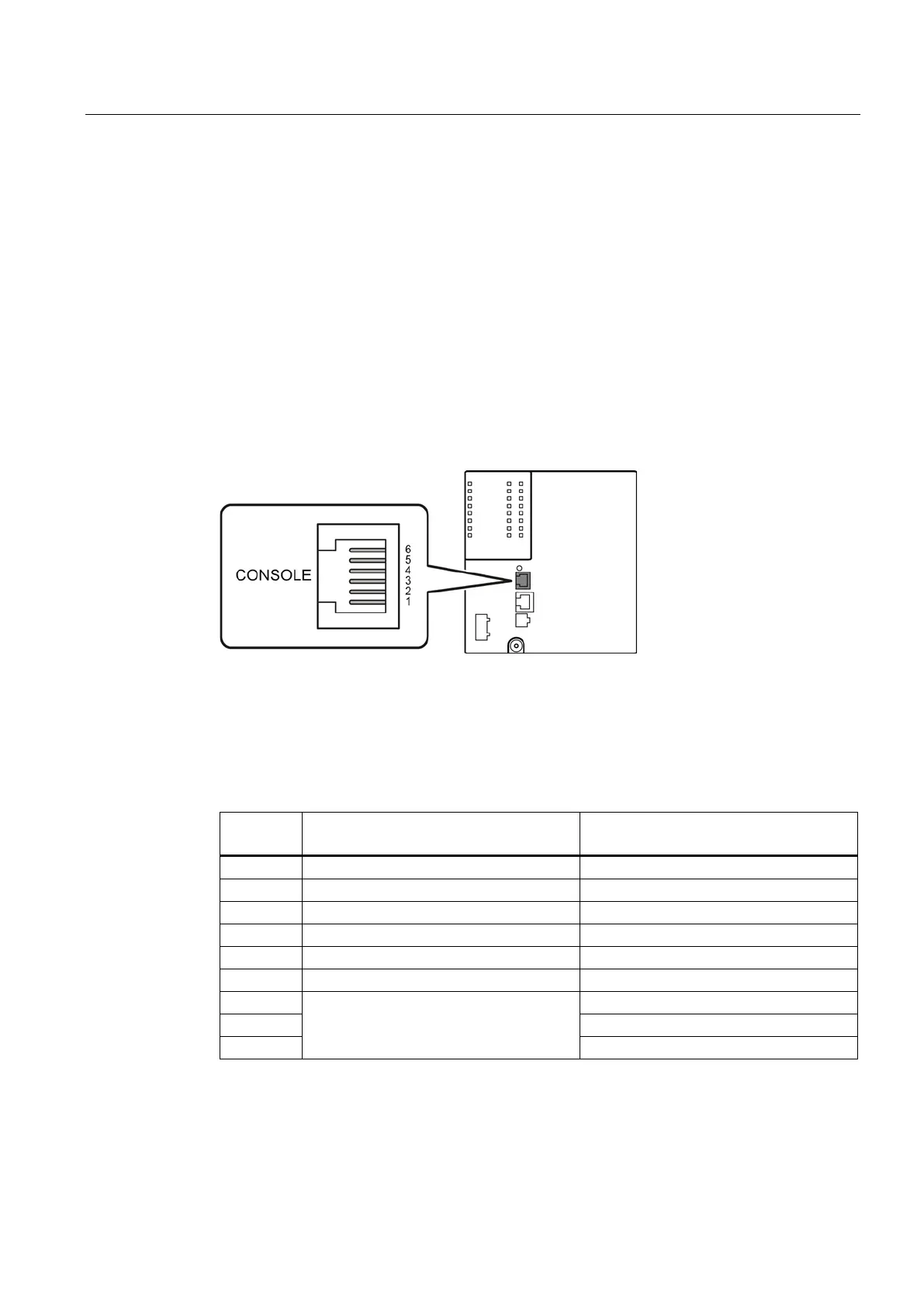

Figure 4-3 Position and pin assignment of the serial interface (RJ-11 jack) on the SCALANCE XM-
400 and the pin assignment of the D-sub female connector.
Assignment of the terminal block
The supplied connecting cable has the following assignment:
Contact
Pin assignment of the RJ-11 plug
Pin assignment of the D-sub female
connector
1 - -
2
-
TD (Transmit Data)
3
TD (Transmit Data)
RD (Receive Data)
4
SG (Signal Ground)
-
5
RD (Receive Data)
SG (Signal Ground)
6
-
-
7
-
8
-
9
-
