Siemens SIMATIC Field PG P4 User Manual

Hardware Information
7-9
SIMATIC Field PG P4 Manual
A5E00180080-04
Pin No. Designation Description Input /Output
36 12V (S5 AG)
37 BUSY (LPT) Not busy Input (4,7 kW pull up)
38 PE (LPT) Paper end Input (4,7 kW pull up)
39 SELECT (LPT) Device selection Input (4,7 kW pull up)
40 +TTY TxD (S5 AG) TTY send Output
41-42 - Unassigned -
43 –TTY TxD (S5 AG) TTY send Output
44 - Unassigned -
45 GND (COM2) Ground -
46 - Unassigned -
47 DSR (COM2) Data set ready Input
48 RTS (COM2) Request to send Output
49 CTS (COM2) Clear to send Input
50 RI (COM2) Incoming call Input

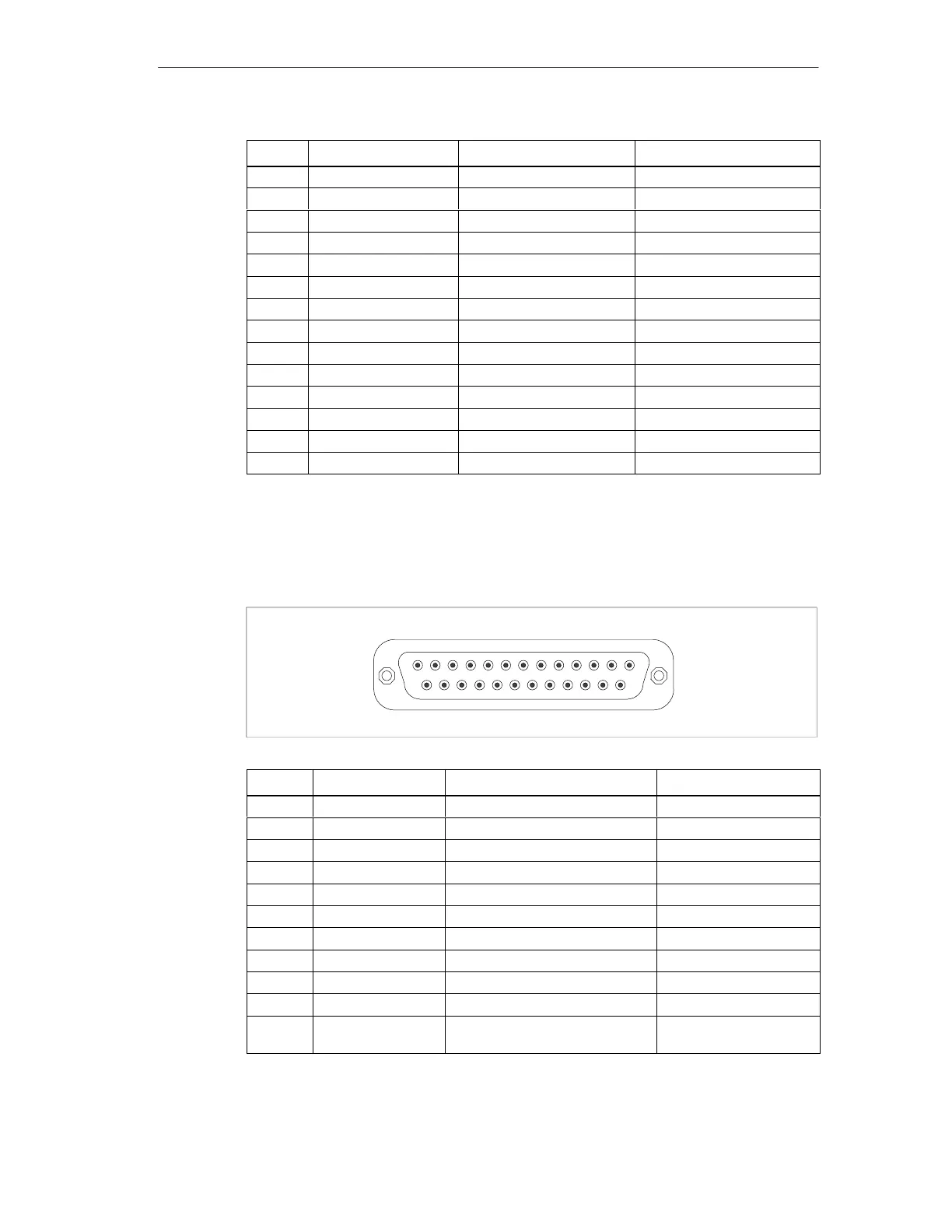

Connector assignment on the I Cable
The port S5-Online AG has the following pinout:
1
13
14
25
Pin No. Designation Description Input /Output
1 -8 - Unassigned -
9 +TTY RxD TTY receive Input
10 - Unassigned -
11 –TTY RxD TTY receive Input
12-17 - Unassigned -
18 +TTY TxD TTY send Output
19 12V Current source -
20 - Unassigned -
21 –TTY TxD TTY send Output
22-24 - Unassigned -
25 GND (COM1) Functional ground
(reference potential)
-

Siemens SIMATIC Field PG P4 Specifications

General

Brand	Siemens
Model	SIMATIC Field PG P4
Category	Laptop
Language	English
