Siemens SIMATIC Field PG P4 User Manual

Hardware Information
7-3
SIMATIC Field PG P4 Manual
A5E00180080-04

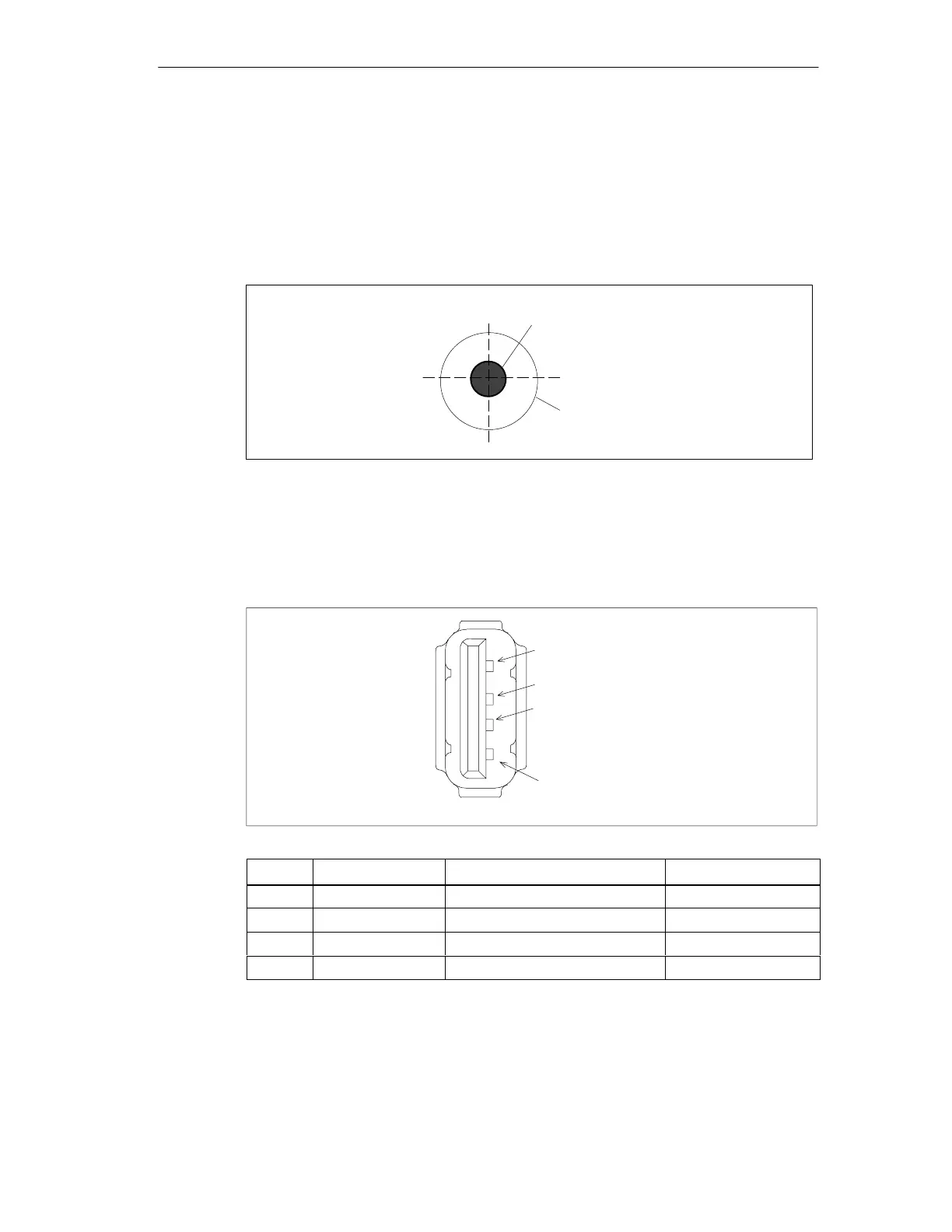

7.2 Interface Pinout
DC-In
Jack for connecting the AC/DC adapter. Potentials:
+ 17.5 VDC
0 V Ground
USB
Both interfaces are conceived for high-current USB 2.0 (500mA). However, they
cannot be used simultaneously as high-current interface.
4
3
2
1
Pin-No. Designation Description Input / Output
1 VCC +5V (fused) Output
2 - Data Data line Input / Output
3 + Data Data line Input / Output
4 GND Ground -
