Hardware Information

7-4

SIMATIC Field PG P4 Manual

A5E00180080-04

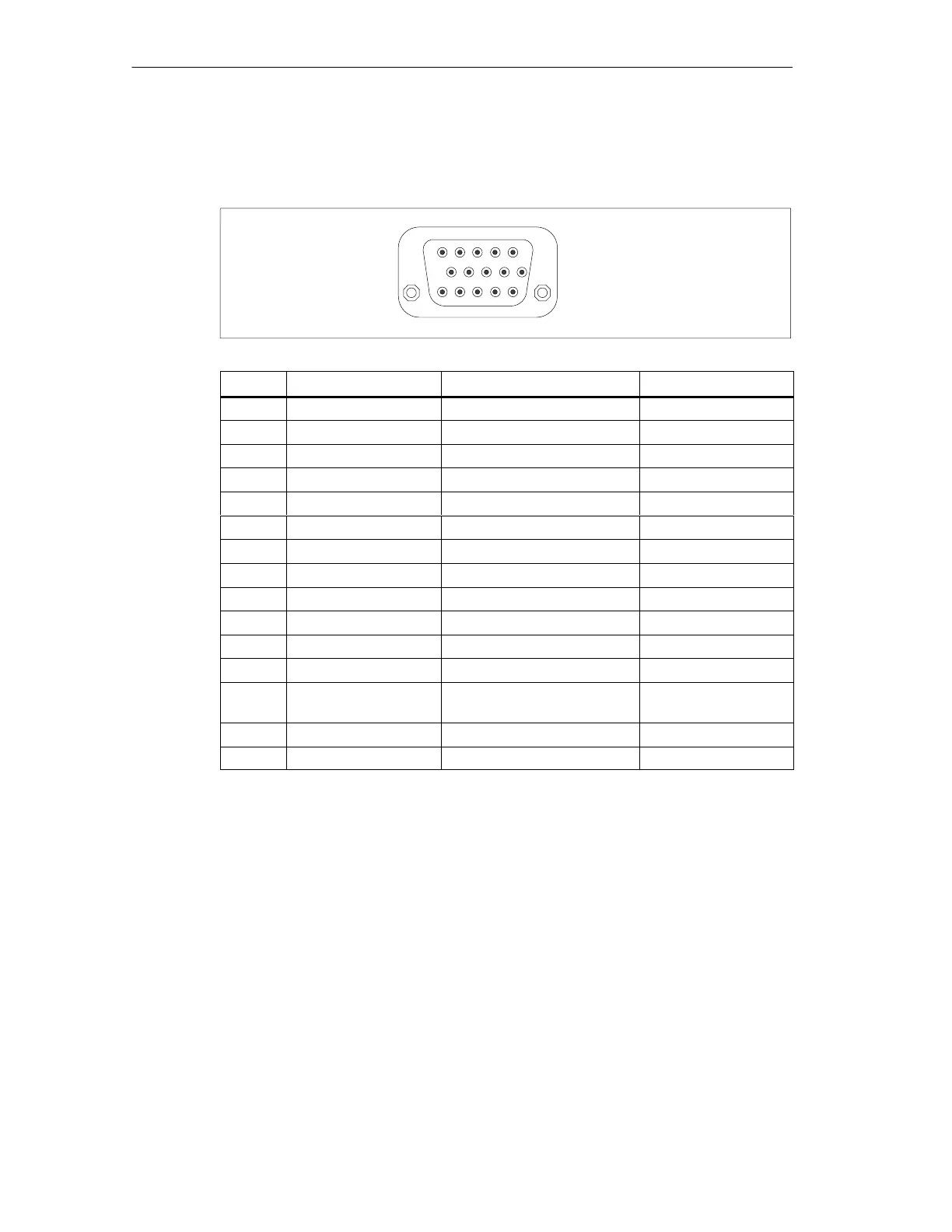

VGA

15-pole socket for an external monitor. Pinout:

1115

Pin No. Designation Description Input/Output

1 R Red Output

2 G Green Output

3 B Blue Output

4 - Unassigned -

5 GND Ground -

6 GND Ground -

7 GND Ground -

8 GND Ground -

9 - Unassigned -

10 GND Ground -

11 - Unassigned -

12 DDC_DAT Display Data Channel Data Input / Output

13 EXT_H Horizontal synchronizing

pulse

Output

14 EXT_V Vertical synchronizing pulse Output

15 DDC_CLK Display Data Channel Clock Input / Output
