SIMATIC Field PG P4 Manual
A5E00180080-04
4.1 Installing Memory Expansion Submodules
Standard Memory
The motherboard has 2 slots for SO DIMM memory submodules (DDR 266,
PC 2100) . This allows you to expand the memory capacity of your SIMATIC
Field PG P4 to a maximum of 1 Gbyte.
Memory Submodules

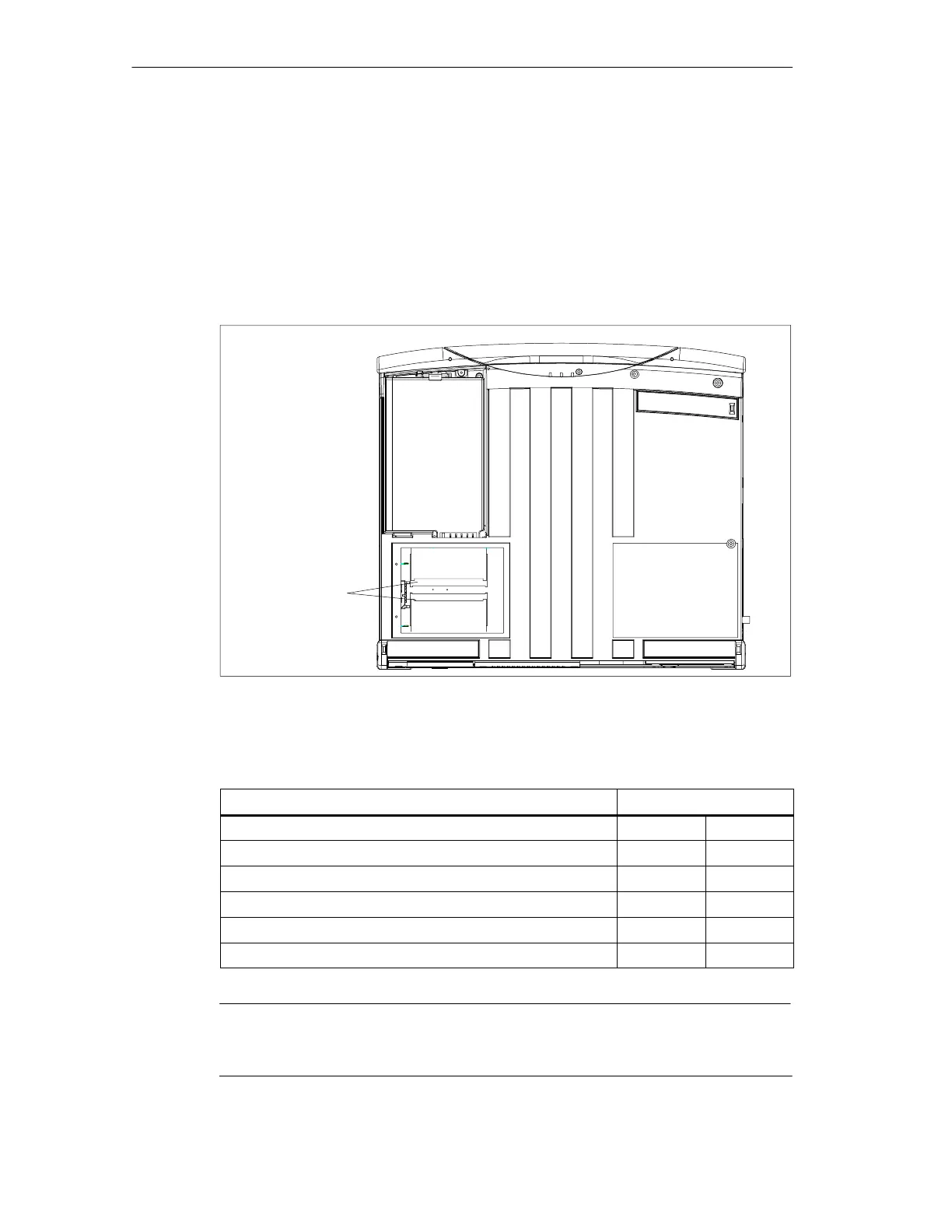

Fig. 4-1 Positions of the SO DIMM Memory Submodules
You can install submodules of different capacity. Only one module must be
installed.
Memory Modules
256 Mbytes 512 Mbytes
256 Mbytes 1 –
512 Mbytes 2 –
512 Mbytes – 1
768 Mbytes 1 1
1024 Mbytes – 2
Notice
Please only use Siemens memory modules as these are qualified and released for
this device. Refer to the catalog for the ordering data.
