Configuring And Operating The SIMATIC Field PG P4
3-20
SIMATIC Field PG P4 Manual
A5E00180080-04
3.11 Connecting the Field PG P4 to a SIMATIC S5 Network
Point-To-Point Connection
In this section, you will learn how to connect your Field PG P4 to a programming
device or S5 PLC using a point-to-point connection.
You can establish a point-to-point connection by connecting the Field PG P4 to
another programming device using a TTY connection.
Notice
The interface is connected to potential.
The SIMATIC STEP 5 programming software and the patch cord for the
connection to the S5 PLC is not supplied with all versions.
Connecting the Field PG P4 to the S5 PLC
You can connect the Field PG P4 to a SIMATIC S5 PLC via TTY port. The patch
cord for connecting to SIMATIC S5 CPUs is not included with all delivered versions
(Order no.:6ES5734-2BD20).
Interface cable port
SIMATIC S5 patch cord
I cable

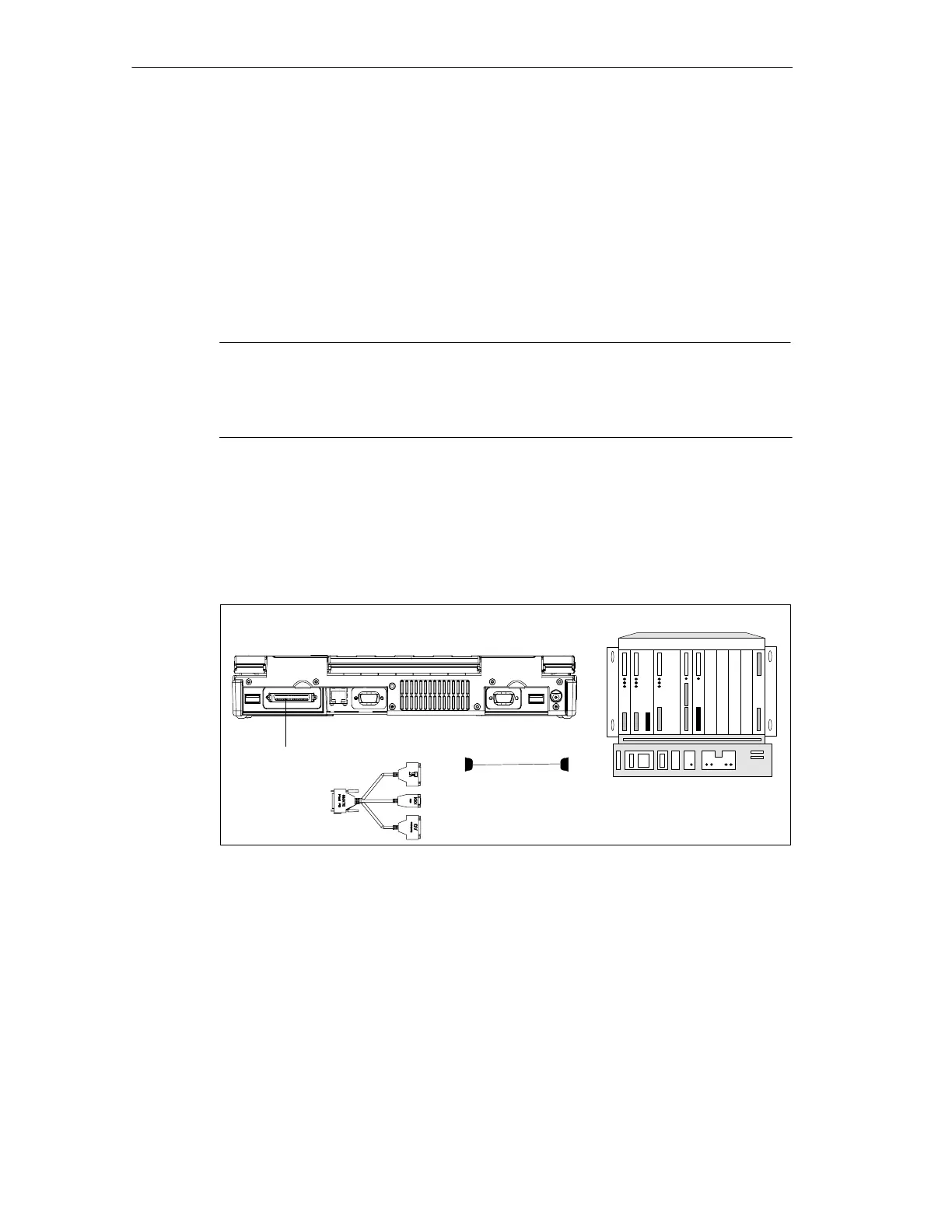

Fig. 3-13 Connecting to an S5 PLC
You connect your Field PG P4 to a SIMATIC S5 PLC as follows:
1. Switch off your device.
2. Open the cover of the ports on the rear of the device.
3. Connect the interface cable to the Field PG P4.
4. Connect the patch cord to the TTY port of the Interface cable (S5-Online AG).
5. Secure the connector with screws.
6. Connect the patch cord to the corresponding port on the CPU of the PLC.
