Siemens SIMATIC Field PG P4 User Manual

Configuring the SIMATIC Field PG P4
5-6
SIMATIC Field PG P4 Manual
A5E00180080-04
System Time und System Date
System Time and System Date indicate the current values. Once you have
selected the appropriate option, you can use the [+] and [-] keys to modify the time
setting
Hour:Minute:Second
and the date
Month/Day/Year.
You can move between the entries in the date and time options (for example, from
hour to minute) using the tabulator key.
Diskette A
The type of disk drive built-in to the PG is set here. The following entries are
possible:
[Disabled] If a floppy drive does not exist
[1.44 MB, 3 1/2”] Setting for an integrated floppy drive A: for 3 1/2 inch/1.44 MB disks
Primary Master Primary Slave Secondary Master / Secondary Slave
When you select such a menu field via Enter key the following submenu is opened:

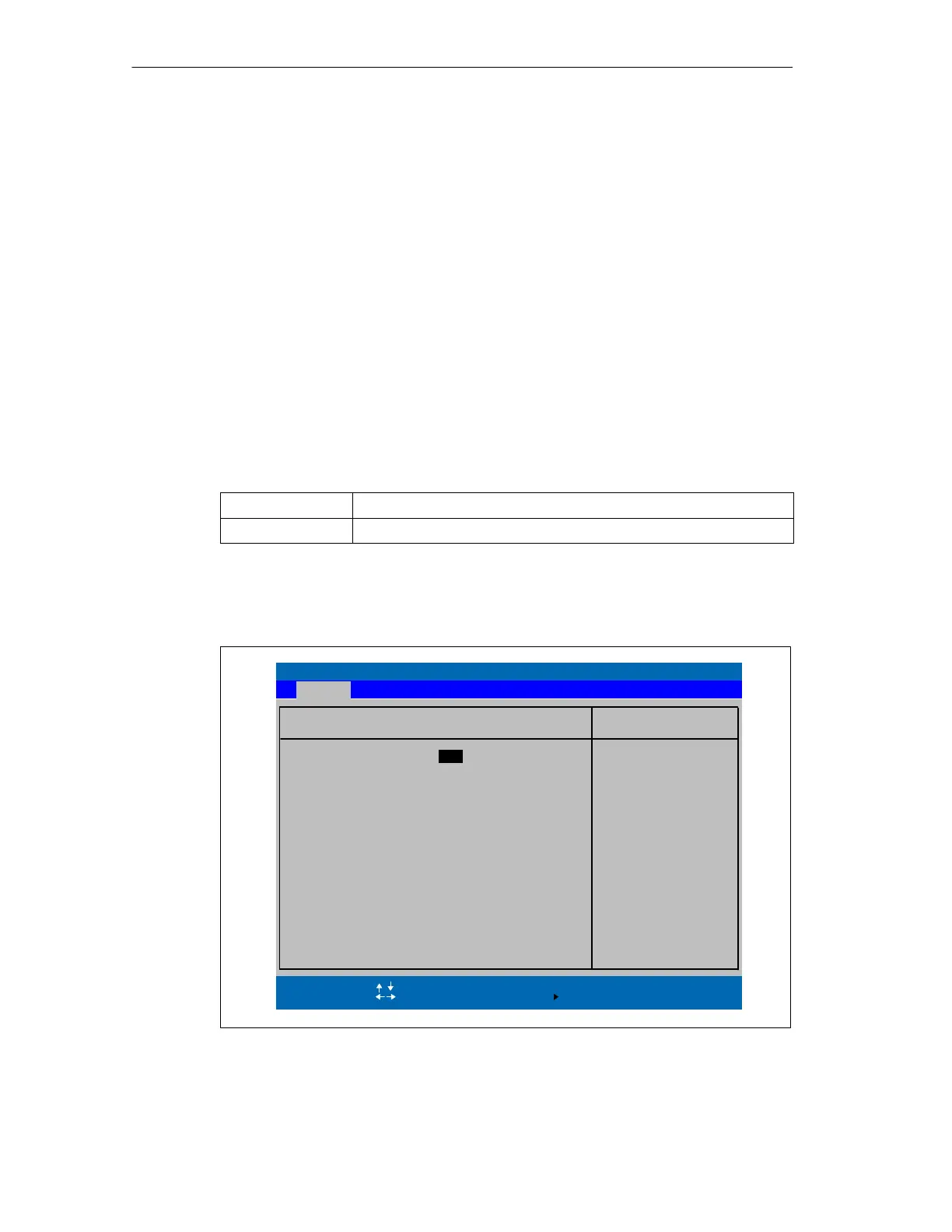

PhoenixBIOS Setup Utility
Item Specific Help
Type:
ESC Exit
Select Item
Select Menu
+ / –
Select
Change Values
Sub-Menu
F9
F10
Setup Defaults
Save and Exit
User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive
installed here.
1–39 = you select
pre-determined type of
hard-disk drive
installed here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
Enter
Help
F1
Main
Primary Master [10056 MB]
[ Auto ]
LBA Format
Total Sectors: 19640880
Maximum Capacity: 10056MB
Multi-Sector Transfers: [16 Sectors]
LBA Mode Control: [Enabled]
32 Bit I/O: [Enabled]
Transfer Mode:
[FPIO 4 / DMA 2]
Ulta DMA Mode
[Mode 5]
Fig. 5-3 Primary Master
