Hardware Information

7-6

SIMATIC Field PG P4 Manual

A5E00180080-04

Ethernet

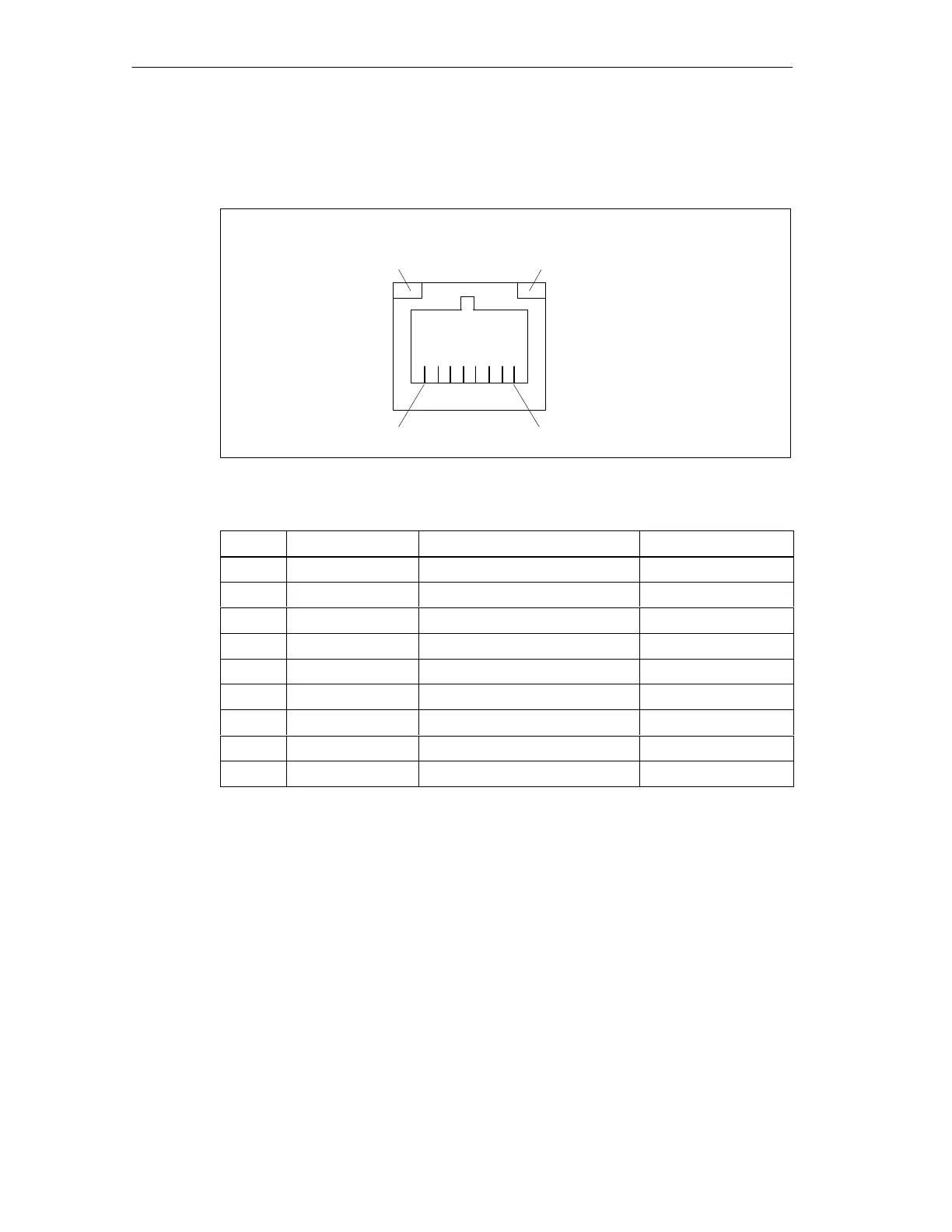

Pinout of the Ethernet interface:

LED greenLED yellow

1 8

Fig. 7-1 Ethernet port

Pin-No.

Designation Description Input / Output

1 TD+ Transmitted data Output

2 TD– Transmitted data Output

3 RD+ Received data Input

4, 5 * SYMR Internal 75 Ω output -

6 Received data Input

7, 8 * SYMT Internal 75 Ω output -

S Shield -

LED yellow Connection -

LED green Activity -

* is not necessary for data transfer
