Mounting and connecting
3.1 Preparations
Basic Panels
30 Operating Instructions, 04/2012, A5E02421799-03

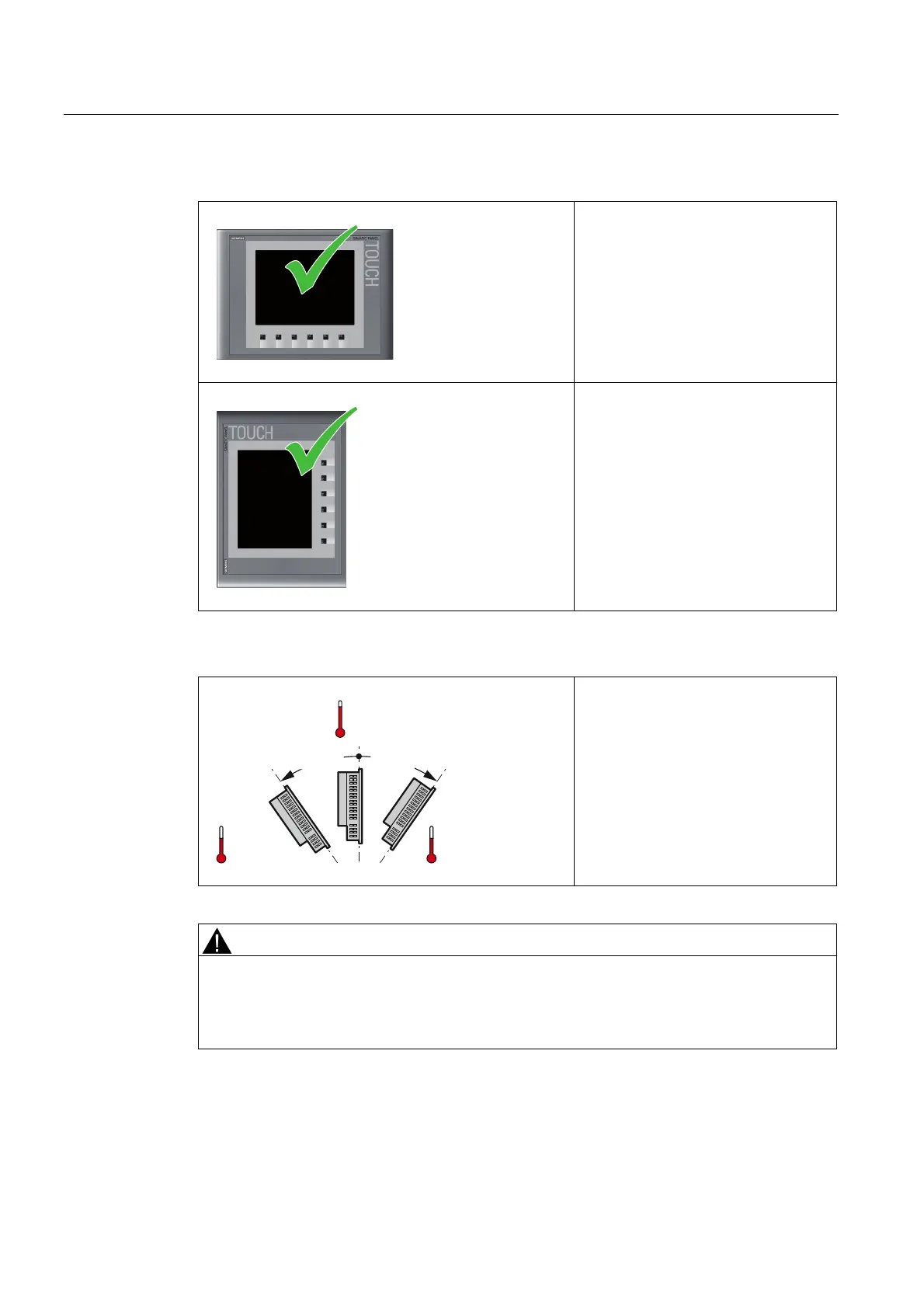

Horizontal mounting position
All Basic HMI devices are suitable for
horizontal mounting positions.
The maximum ambient temperature at
the device with vertical mounting in
horizontal positions is 50 °C
The following Basic HMI devices are
also suitable for vertical mounting
positions:
• KTP400 Basic
• KTP600 Basic
The maximum ambient temperature at
the device with vertical mounting in
vertical positions is 40 °C
Angled mounting position
40 °C
0 °C
40 °C
0 °C
50 °C
0 °C
rದr rದr
The Basic HMI devices are self-
ventilating. Vertical and angled
mounting is permitted in:
• Mounting cabinets
• Control cabinets
• Switchboards
• Consoles
CAUTION
Exceeding the ambient temperature
Forced ventilation is required if the maximum permitted ambient temperature for operating
the HMI device is exceeded. The HMI device can otherwise be damaged and its approvals
and warranty will be void.
See also
Conditions of use (Page 138)
