4.1.4 Entering data on the KTP600 Basic, KTP1000 Basic , TP1500 Basic
Alphanumerical screen keyboard

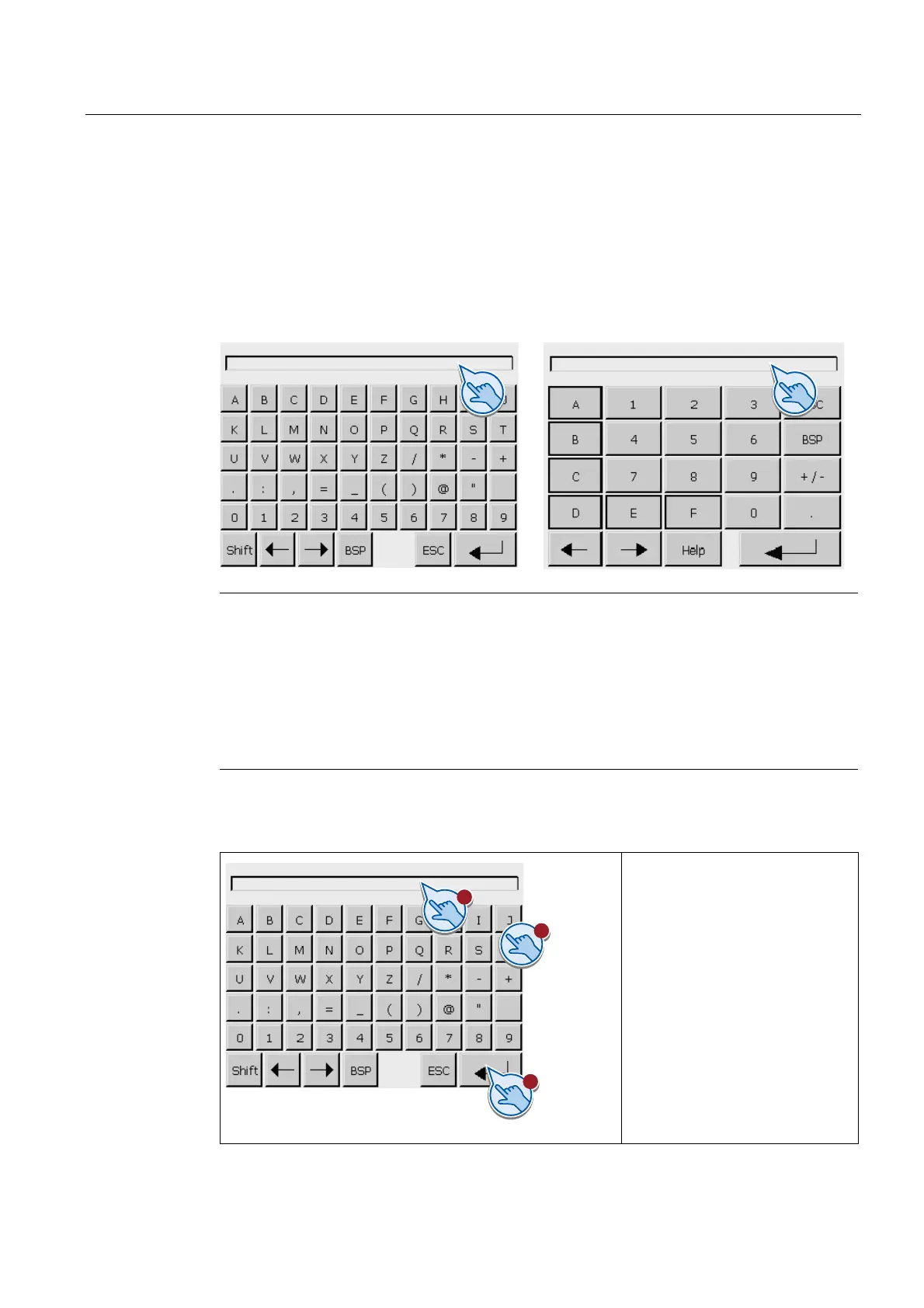

The screen keyboard appears on the HMI device touch screen when you touch an operating
element that requires input.
681 ))))
7H[W 1XPEHUV
Note
Job mailbox has no effect
PLC job 51 "Select screen" has no effect while the screen keyboard is open.
Key assignment
The alphanumerical screen keyboard layout is monolingual.
A language change within the project has no effect on the layout of the alphanumerical
screen keyboard.
Entering alphanumerical values



1. Touch the desired operating
element on the screen.
The alphanumerical screen
keyboard opens.
2. Enter the value. Depending on
the settings, the HMI device
outputs an audible signal.
Use the <Shift> key to enter
lower-case letters.
3. Press <Return> key to confirm
your entries, or cancel them with
<ESC>.
Either action closes the screen
keyboard.
