4.1.3 Entering data on the KTP400 Basic
Due to the small display, the screen keyboard and the input concept of the KTP400 Basic
differs compared to other Basic HMI devices.
681
681681
7H[W 7H[W
1XPEHUV,FRQV
The screen keyboard appears on the HMI device touch screen when you touch an operating
element that requires input.

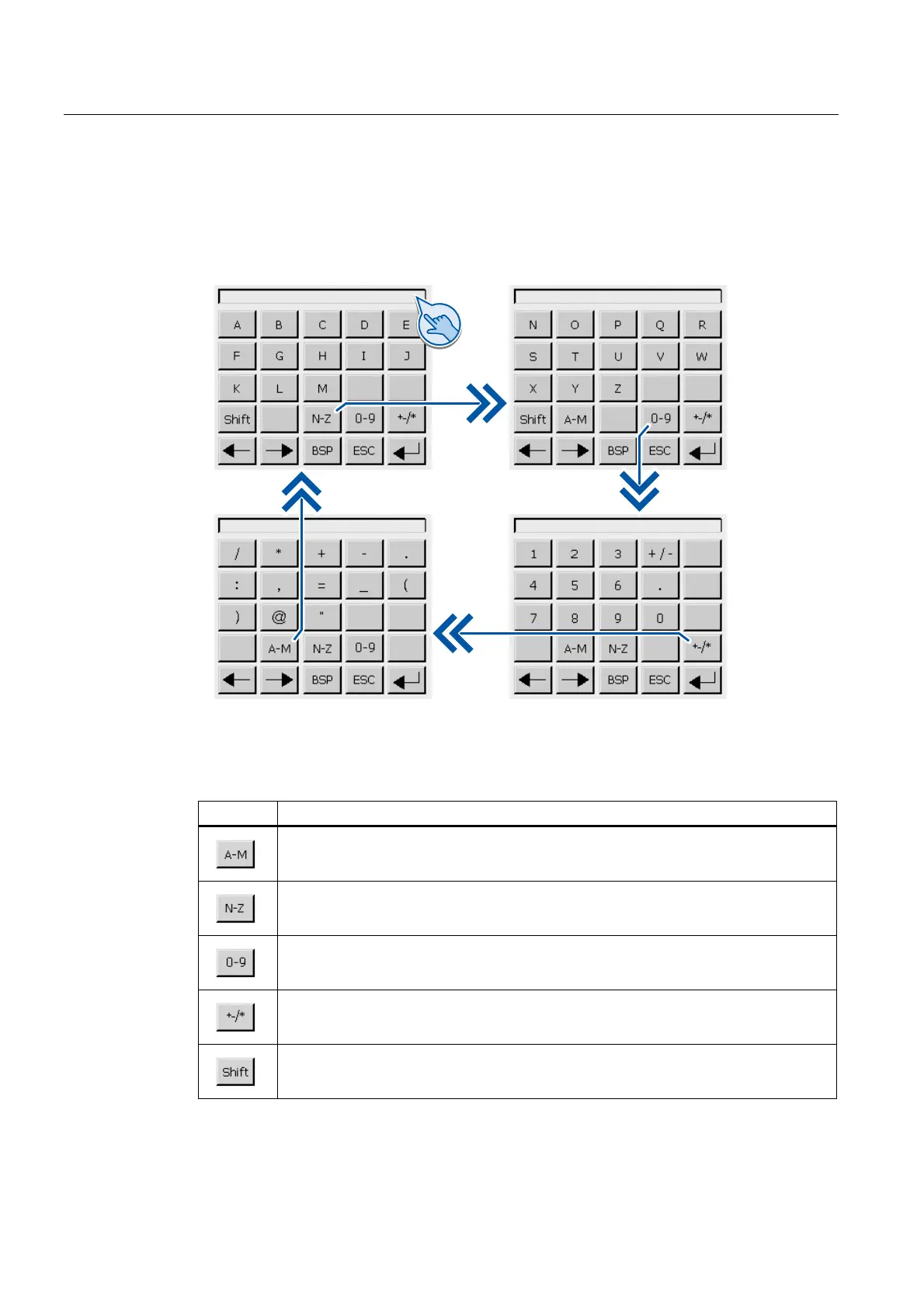

The screen keyboard of the KTP400 BASIC features four views. You can change the view
while making entries using the buttons in the fourth row of the screen keyboard:
Key Changes to the view
Entering text, characters "A" to "M"
Entering text, characters "N" to "Z"
Entering numbers, "0" to "9," signed or unsigned and with or without decimal places
Entering special characters
Entering text, shift to lower case letters
