Release 09/02 Extend Project with Simple Objects
ProTool Co nfig ur ing Win do ws-bas ed S yste ms 5–5
Start Up Instr uctions

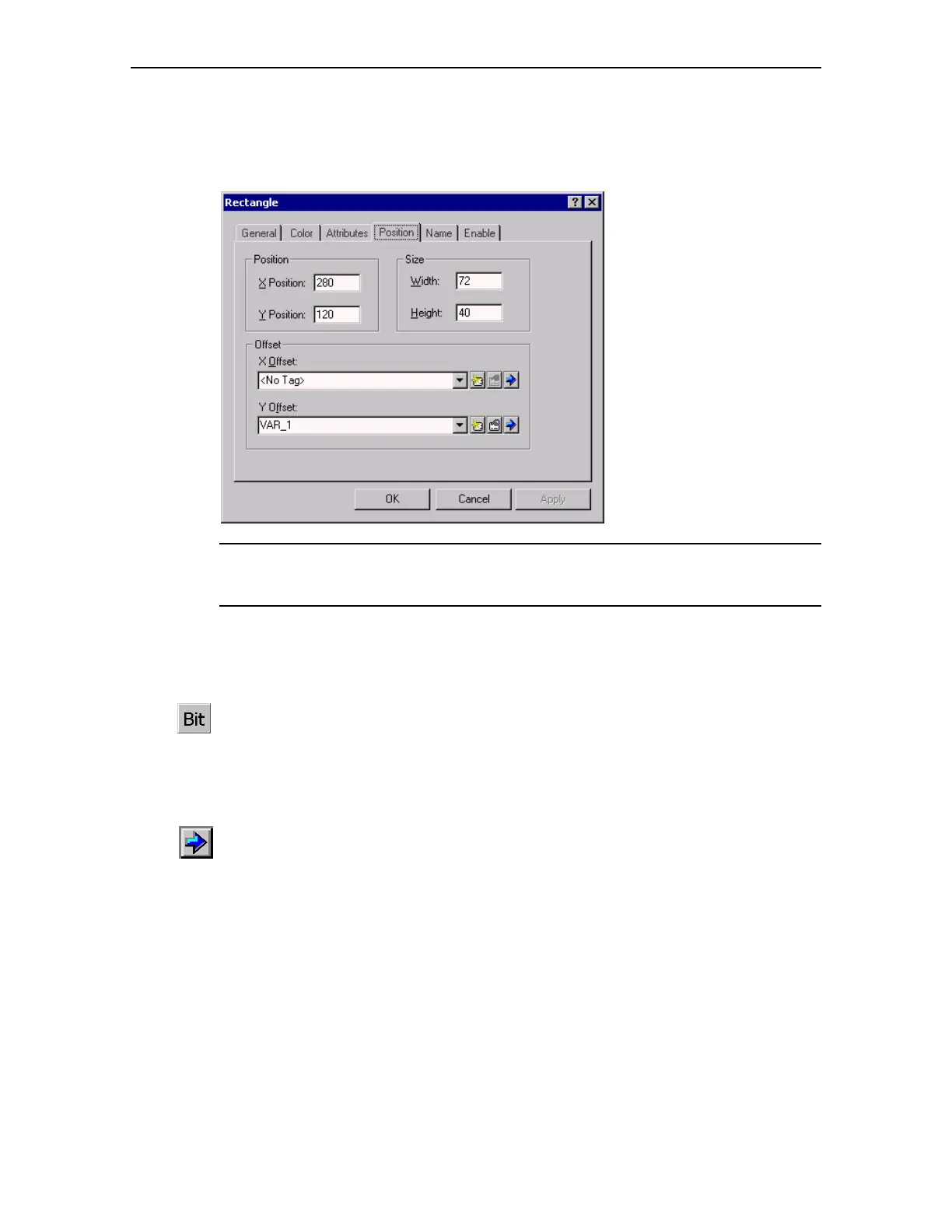

The Y-Offset defines the movement of the rectangle in relation to the starting position
defined in the project.
Note
At this point, the project can be tested using the simulation program. The basic
procedure is described in Section "Testing the Project" (Page 4–1).
5.5 Influencing Bits in the PLC
• Create a Status button, as described on Page 3–5 and label it "Bit", for example.
• In the "Properties" dialog box, click on the "Functions" tab control
• Select "Select Object" and open the folder "Edit Bits"
• Double click on "Invert_bit"
• Click on the context menu icon
• Click on "New" in the context menu in order to create a new tag
• Name the new tag "VAR_2"
• Define the parameters for the tag
• Click on "OK" twice
