Description
2.2 Setup and configuration
SIMATIC RF120C
Operating Instructions, 02/2021, C79000-G8976-C328-03
9
RF120C communications module

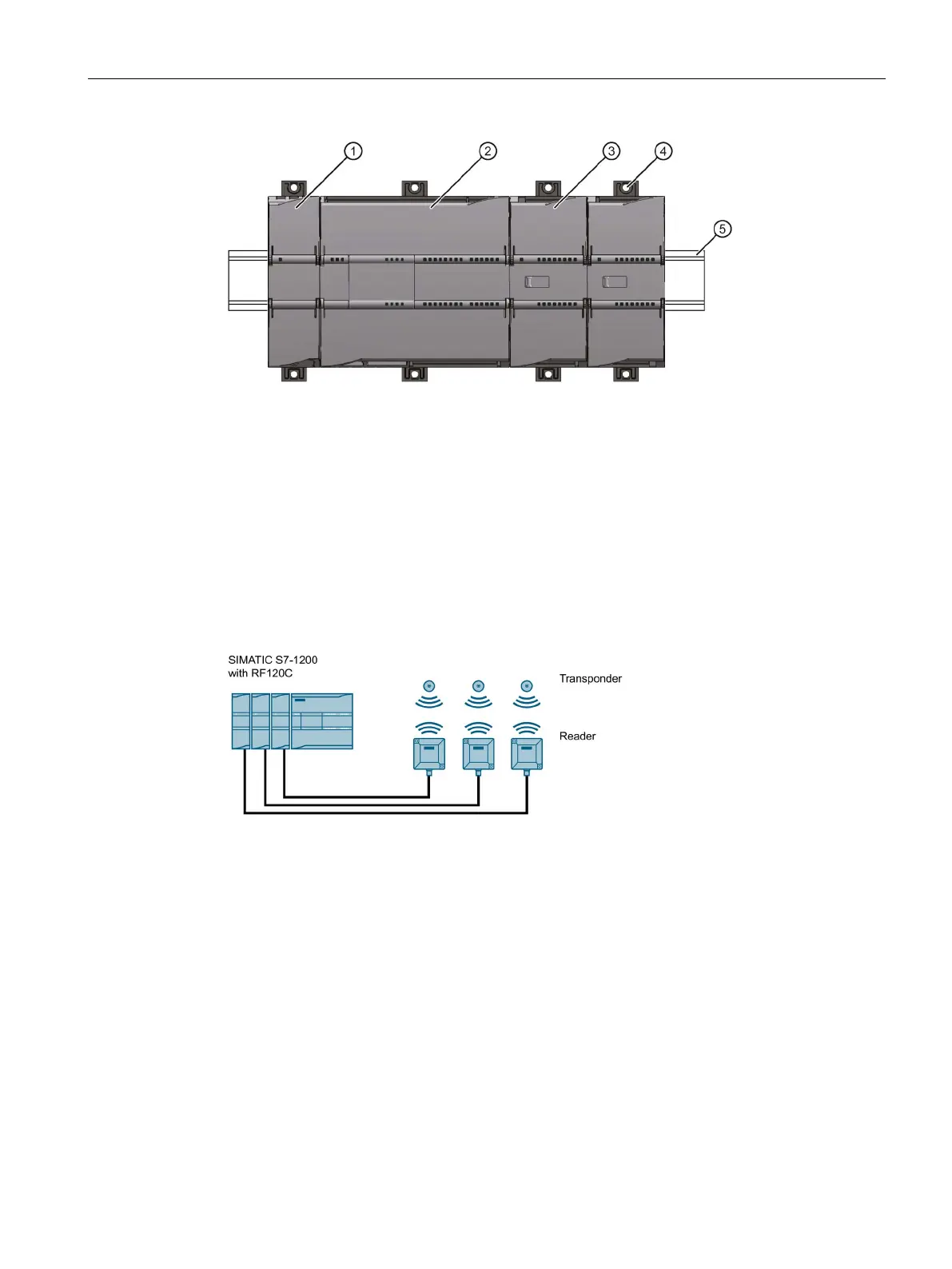

Figure 2-2 SIMATIC S7-1200 with RF120C
Configuration
The following figure shows the SIMATIC S7-1200 with three RF120C communications
modules.
Figure 2-3 Maximum configuration of RF120C with a SIMATIC S7-1200
Extensive configurations are possible using a PROFIBUS/PROFINET setup with various SIMATIC
Ident communications modules.
