Appendix
A.2 Connecting cable
SIMATIC RF120C
44 Operating Instructions, 02/2021, C79000-G8976-C328-03

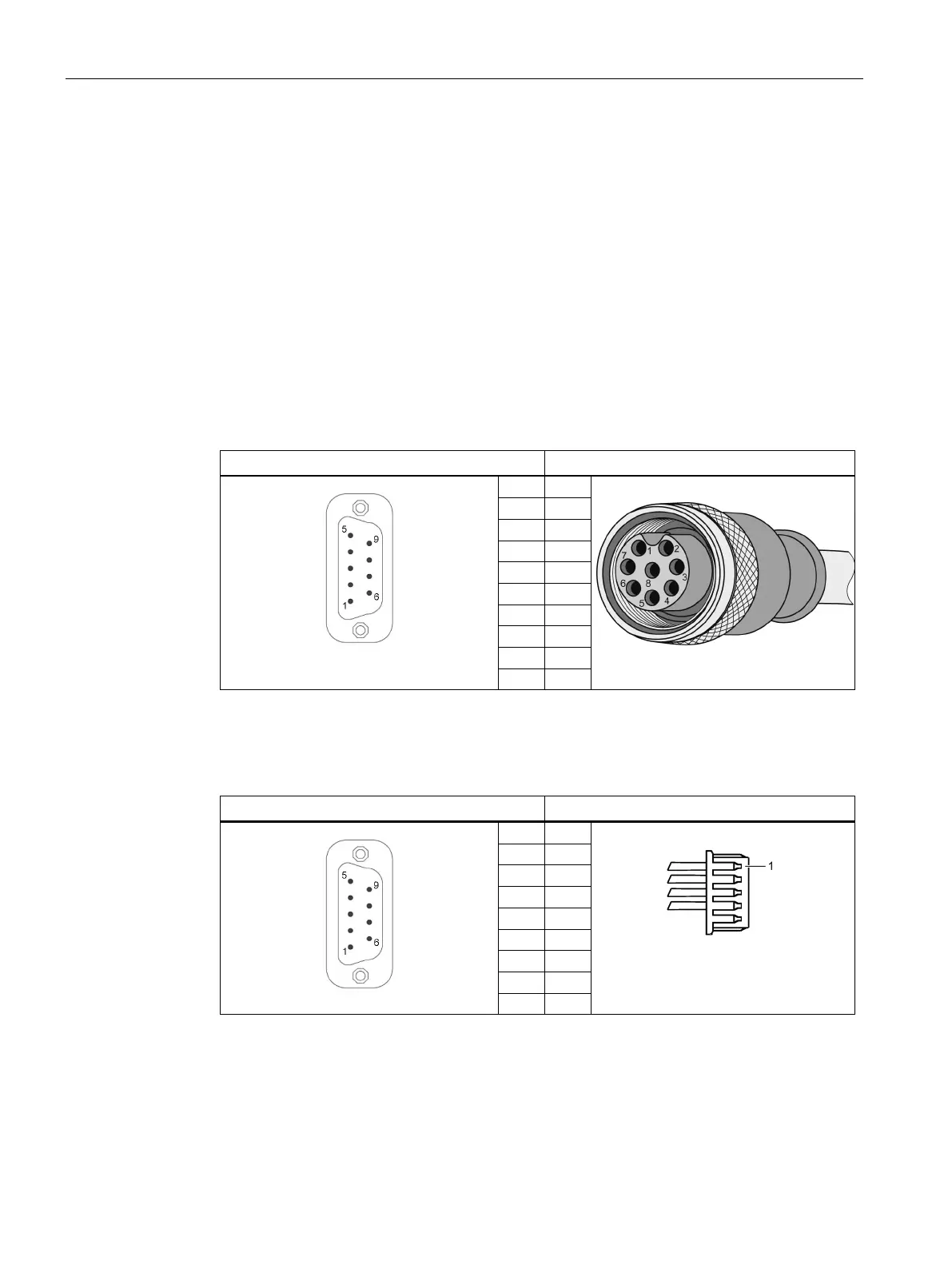

A.2 Connecting cable
A.2.1 Routing of standard cables
You can connect the various readers and optical readers using the following connecting
cables.
• Connecting cable D-sub (RS422) ↔ M12
for RF200, RF300, MV400 and MV500
Length: 2 m, 5 m, 10 m
An additional CM adapter cable (6GF3500-8BA11 or 6GF3500-8BA12) is required to
connect the MV500.
D-sub connector (male)
M12 connector (female)
1
1
2
-
3
-
4
5
5
3
6
2
7
4
8
6
9
8
-
7
• Connecting cable D-sub (RS232) ↔ 5-pin socket housing (PicoBlade)
for RF1000
Length: 2 m
D-sub connector (male)
5-pin socket housing (PicoBlade)
1
-
2
4
3
3
4
1
5
2
6
-
7
-
8
-
9
-
