Siemens SIMATIC Ident Operating Instructions

Appendix
A.2 Connecting cable
SIMATIC RF120C
Operating Instructions, 02/2021, C79000-G8976-C328-03
45

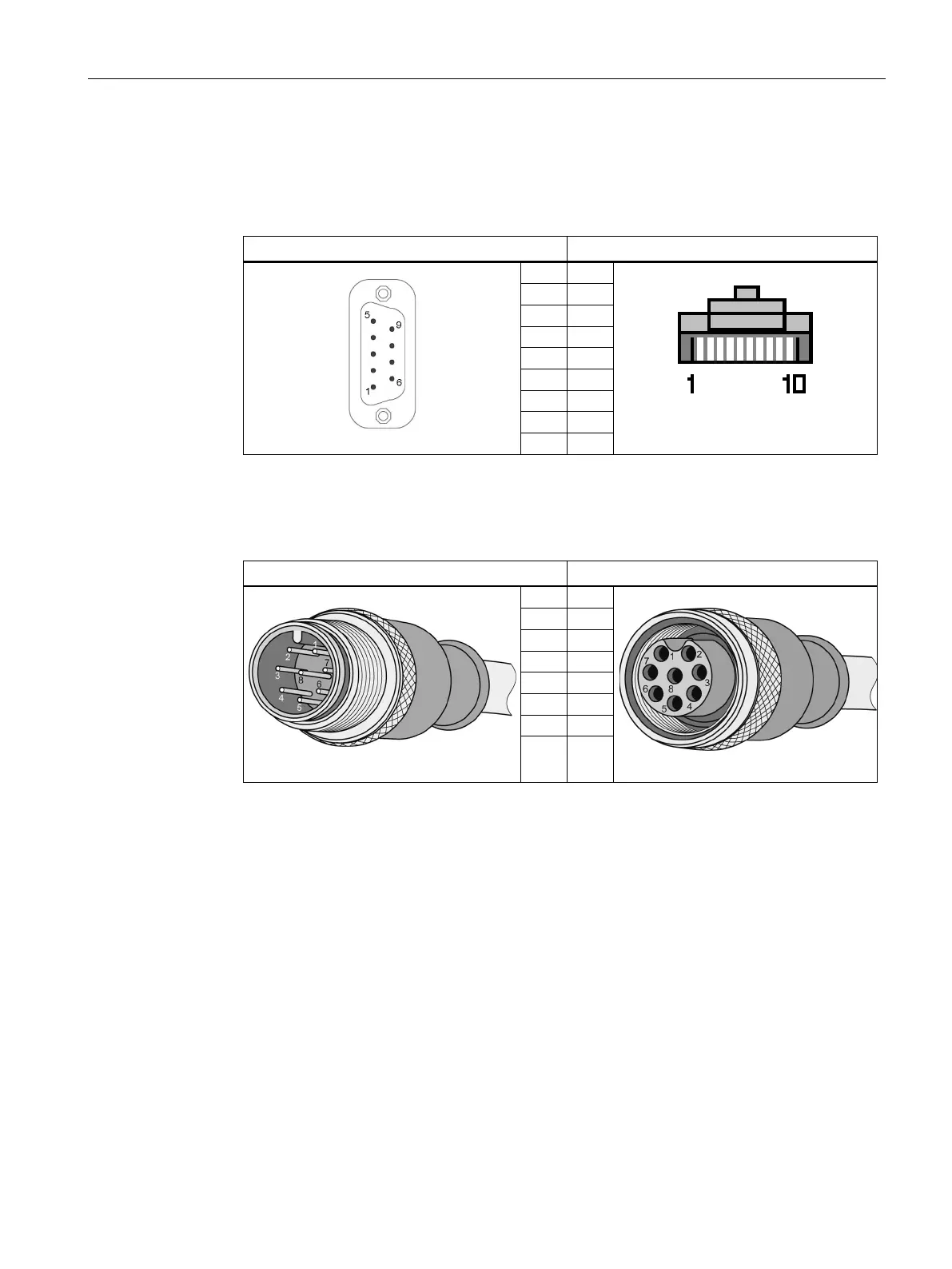

• Connecting cable D-sub (RS232) ↔ RJ50
for MV320
Length: 1.6 m coiled; can be extended to 4.0 m
D-sub connector (male)
RJ50 connector (female)
1
-
2
4
3
6
4
1
5
10
6
-
7
-
8
-
9
-
• Extension cable M12 ↔ M12
for RF200, RF300 and MV400
Length: 2 m, 5 m, 10 m, 20 m, 50 m
M12 connector (male)
M12 connector (female)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
