Siemens SIMATIC Ident Operating Instructions

Appendix
A.2 Connecting cable
SIMATIC RF120C
46 Operating Instructions, 02/2021, C79000-G8976-C328-03

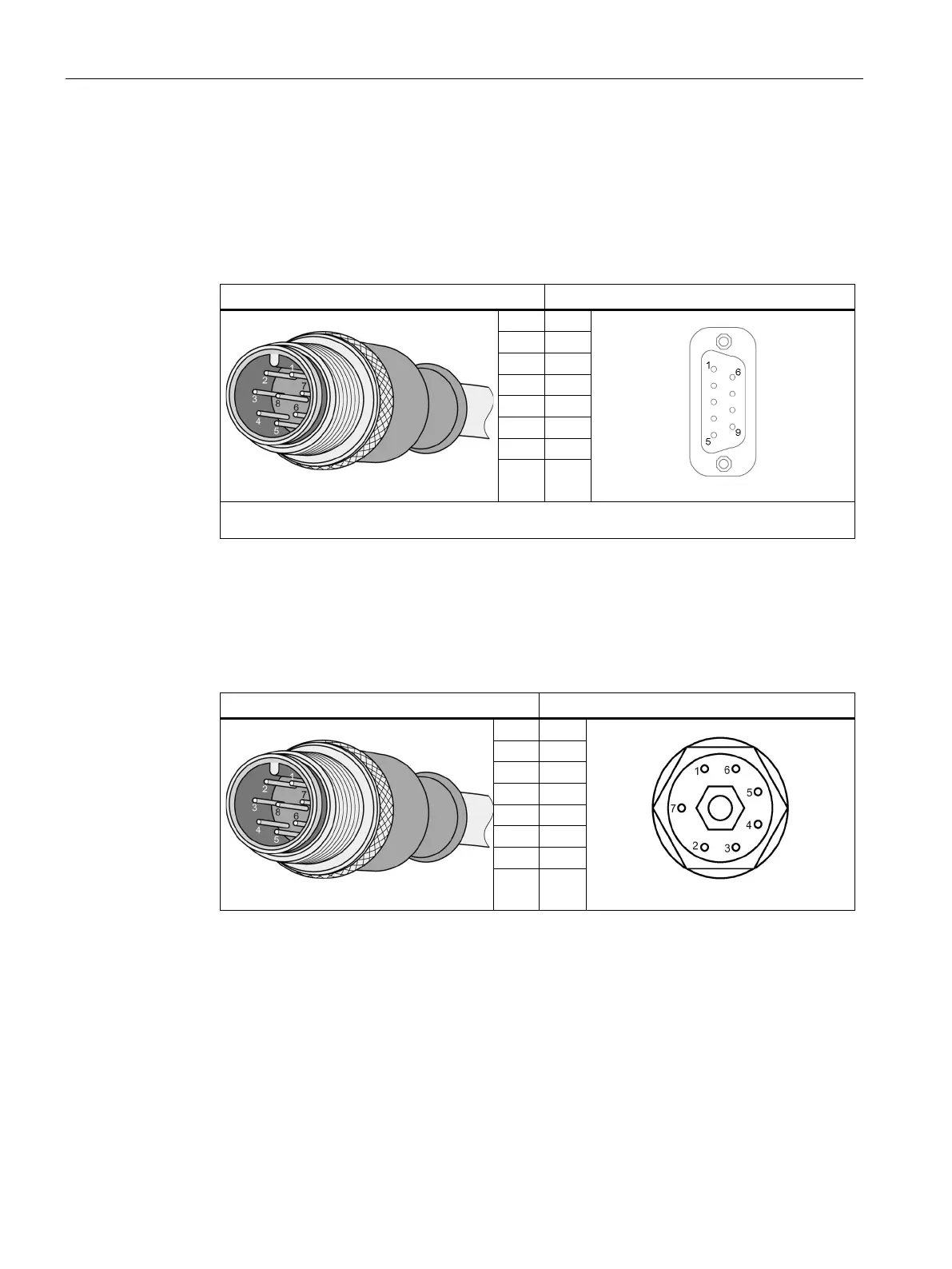

• Connecting cable M12 ↔ D-sub
for MOBY D
Can only be used in conjunction with a connecting cable D-sub-D (RS422) ↔M12
(6GT2091-4Lxxx).
Length: 2 m
M12 connector (male)
D-sub connector (female)
1
-
2
5
3
7
4
3
5
2
6
6
7
-
8
1, 8
Note:
Reader with a D-sub connector must be supplied over an additional connector with 24 V DC.
• Connecting cable M12 ↔ ES175201
for MOBY U
Can only be used in conjunction with a connecting cable D-sub-D (RS422) ↔M12
(6GT2091-4Lxxx).
Length: 2 m, 5 m
M12 connector (male)
ES175201 connector (female)
1
2
2
5
3
3
4
4
5
6
6
1
7
–
8
7
