Mounting and connecting
3.3 Connecting the HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
30 Operating Instructions, 08/2008, A5E01075587-01
3.3 Connecting the HMI device
3.3.1 Connection sequence

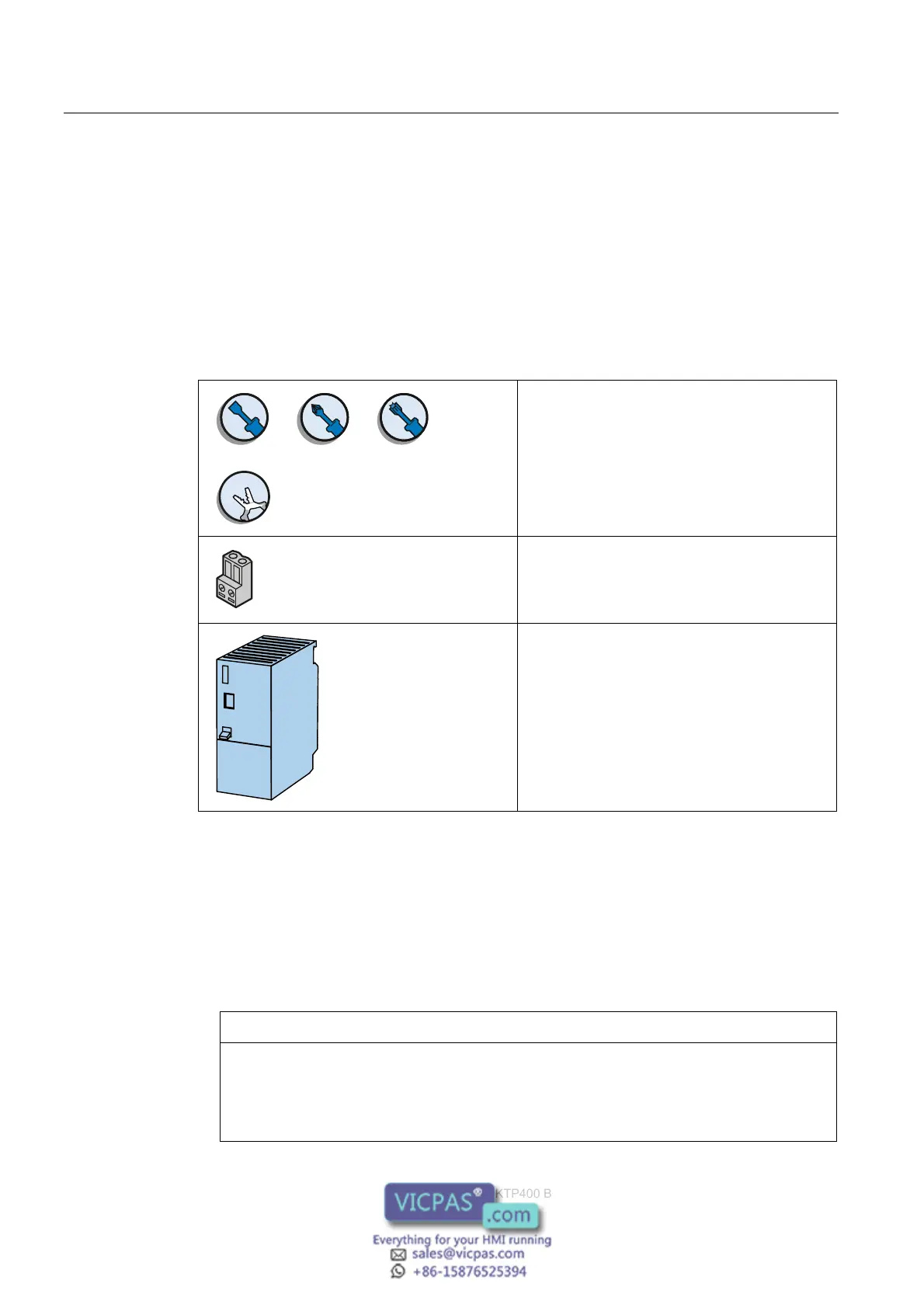

Required tools and accessories
Before beginning the connection of the HMI device, have the following tools and accessories
at hand:
Screwdriver:
• Slotted screwdriver, size 2
• Philips screwdriver, size 3
• Torx screwdriver size 3
Crimp pliers
Mains terminal
24 VDC with sufficient amperage.
See
Specifications (Page 93)
Procedure
Keep to the following sequence of tasks when connecting the HMI device:
1.
Connecting the equipotential bonding circuit (Page 31)
2.
Connecting the power supply (Page 33)
3.
Connecting the configuration PC (Page 35)
4.
Connecting the PLC (Page 38)
NOTICE
Strain relief
Contacts can be broken or wires can be torn off if cables are not provided adequate
strain relief.
Provide adequate strain relief for all cables.
