Mounting and connecting
3.3 Connecting the HMI device
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
34 Operating Instructions, 08/2008, A5E01075587-01
3.3.4 Connecting a programming device
A programming device provides the following options:
● Transferring projects.
● Transferring device images.

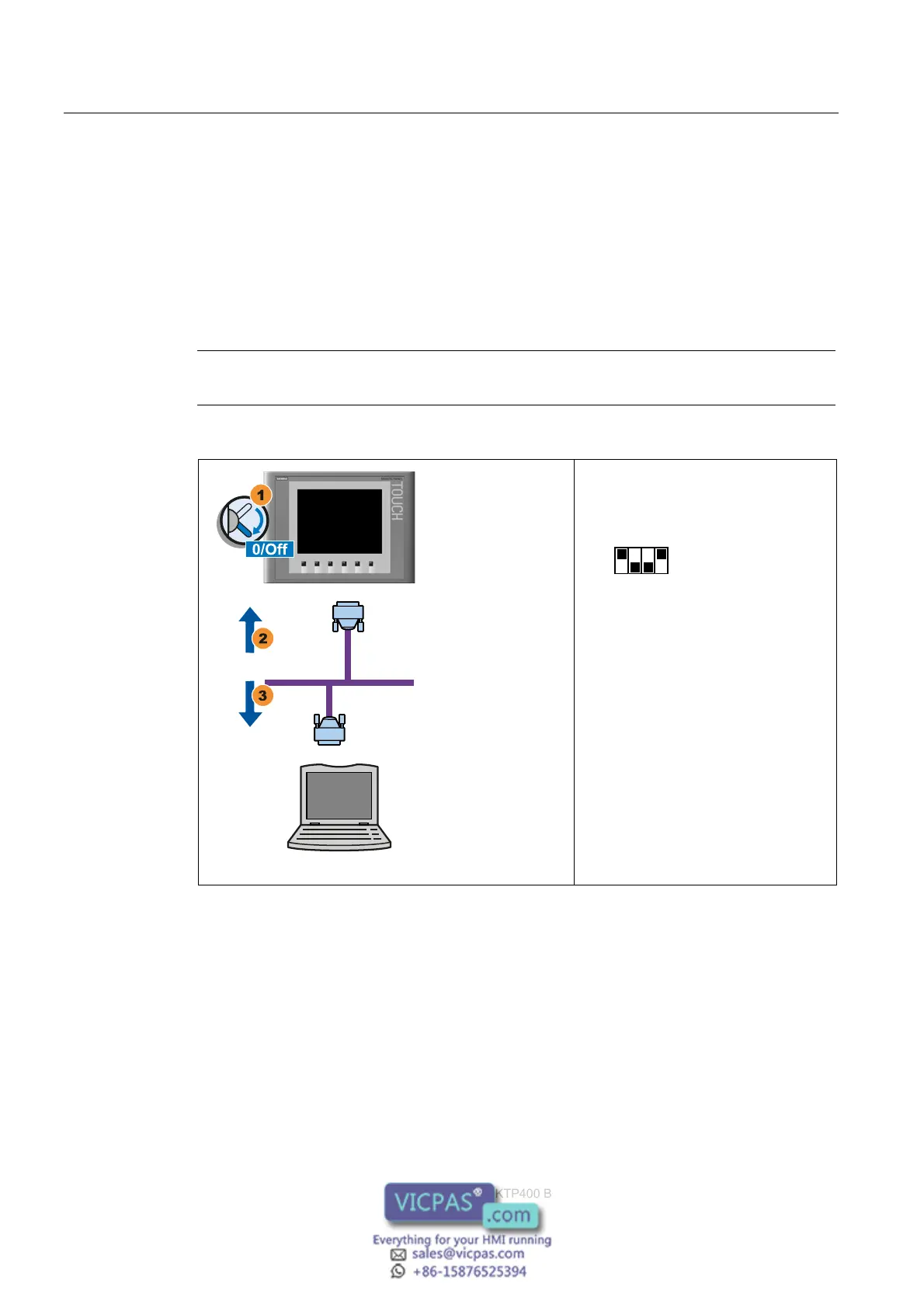

Connecting a programming device to a Basic Panel DP
Note
A programming device cannot be used to reset the HMI device to factory settings.
PROFIBUS
RS 422/ 485
RS 485
PG
1. Shut down the HMI device. Verify
that the DIP switch on the rear panel
of the HMI device is in the following
position:
21
2. Connect an RS 485 PROFIBUS
connector to the HMI device.
3. Connect an RS 485 PROFIBUS
connector to the programming
device.
