Connecting
3
3.1 Terminal assignment
Connection options on the PDC600

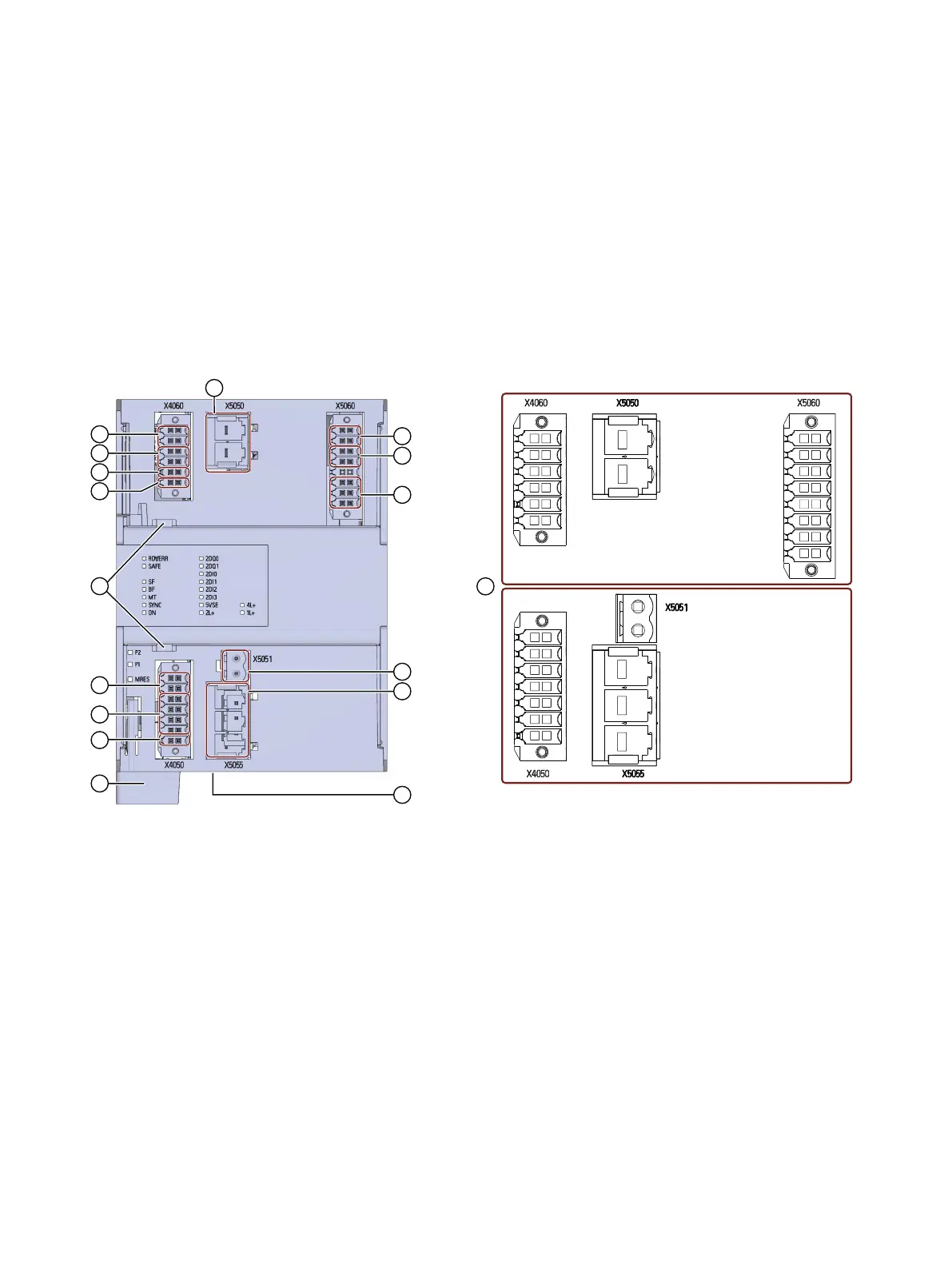

The 󹪝gure below shows the connection options on the PDC600 drive controller.
PDC600
6BK1630-1AA60-0A A0


















 
 




 
 
 




 
 
 
 





① Power supply of power unit (X5050)
② Logic supply of PDC (X5060)
③ Hardware STO (X5060)
④ SSI absolute encoder (X5060)
⑤ External braking resistor (X5051)
⑥ Motor phases (X5055)
⑦ Connection for grounding strap of the functional ground, covered, access from below
⑧ PROFINET Port1 (X2050) and Port 2 (X2060), covered, access from below
⑨ Reference potential of encoder/Hall sensor supply (X4050)
⑩ Incremental encoder (X4050)
⑪ Hall sensor (X4050)
⑫ Wiring duct for connection cables
⑬ Reference potential of digital inputs/outputs (X4060)
⑭ 2 digital outputs (X4060)
PDC600(F)
