Siemens SIMATIC MICRO-DRIVE PDC600 - Page 42

7LQr&
OOBUDWHG
1
0,9
0,8
0,7
0,6
0,5
0,4
0,3
0,2
0,1
0
10 20 30 40 50 600

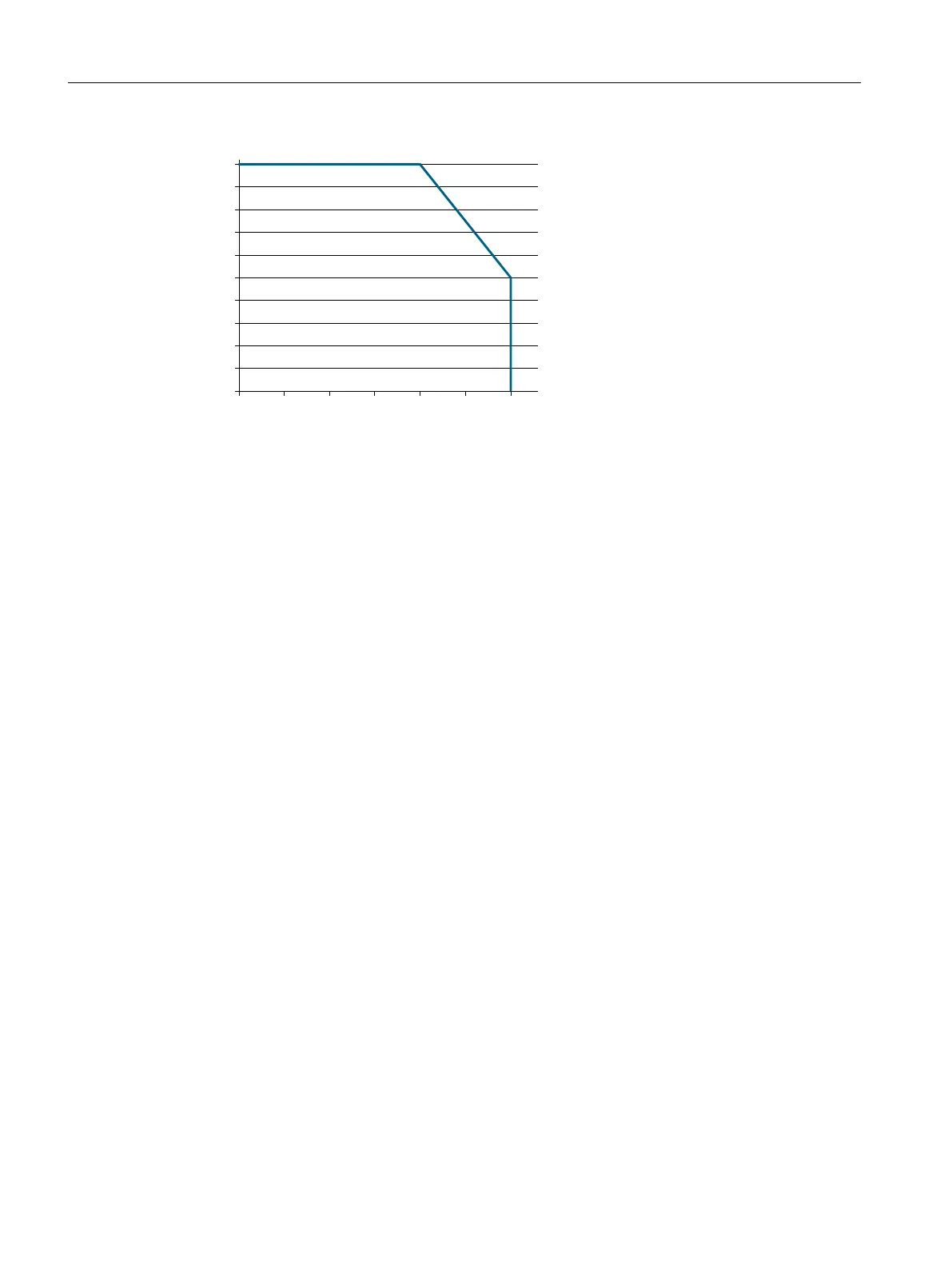

Figure5-2 Derating for PDC600(F) as a function of the ambient temperature
Coincidence factors of inputs/outputs
Also note the permissible coincidence factors of the inputs/outputs.
At ambient temperatures above 40°C, the sum of the output currents of the two outputs
(DQ) must not exceed 1A.
This can be achieved either by operating the two outputs (DQ) alternately or by operating
each of the outputs with a part of the total current of 1A.
All inputs (DI) may be operated simultaneously up to 60°C. No deratings with respect to
ampacity exist as a function of ambient temperature.
Technical speci󹪝cations
5.2Drive controller derating
PDC600(F)
40 Equipment Manual, 12/2023, A5E50502703-AB
