Description of the device
4.4 Device views
SCALANCE SC-600
28 Operating Instructions, 10/2021, C79000-G8976-C453-04
4.4 Device views
4.4.1 Device view of a SCALANCE SC6x2-2C

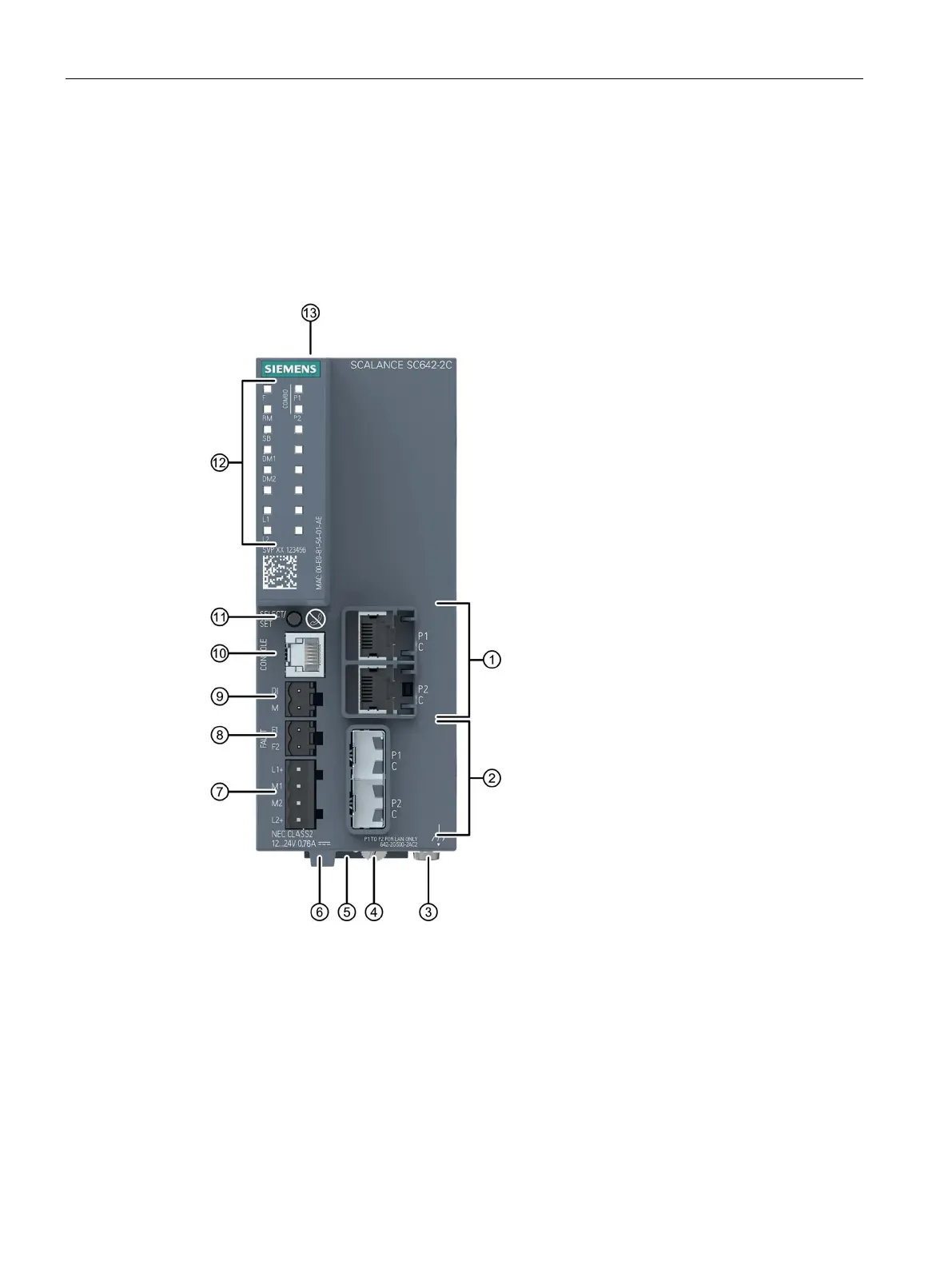

The following figure shows the design of the SC6x2-2C.
①
Electrical ports
⑧
Signaling contact
②
SFP transceiver slots
⑨
Digital input
③
Grounding screw
⑩
Serial interface
④
Knurled screw
⑪
"SELECT / SET" button
⑤
Securing bar
⑫
LED display
⑥
Levering aid for moving the securing bar
with a screwdriver
⑬
Slot for C-PLUG/KEY-PLUG
⑦
Power supply
