Siemens SIMATIC NET SCALANCE SC-600 User Manual

Connecting
6.3 Power supply
SCALANCE SC-600
Operating Instructions, 10/2021, C79000-G8976-C453-04
55
Position and assignment

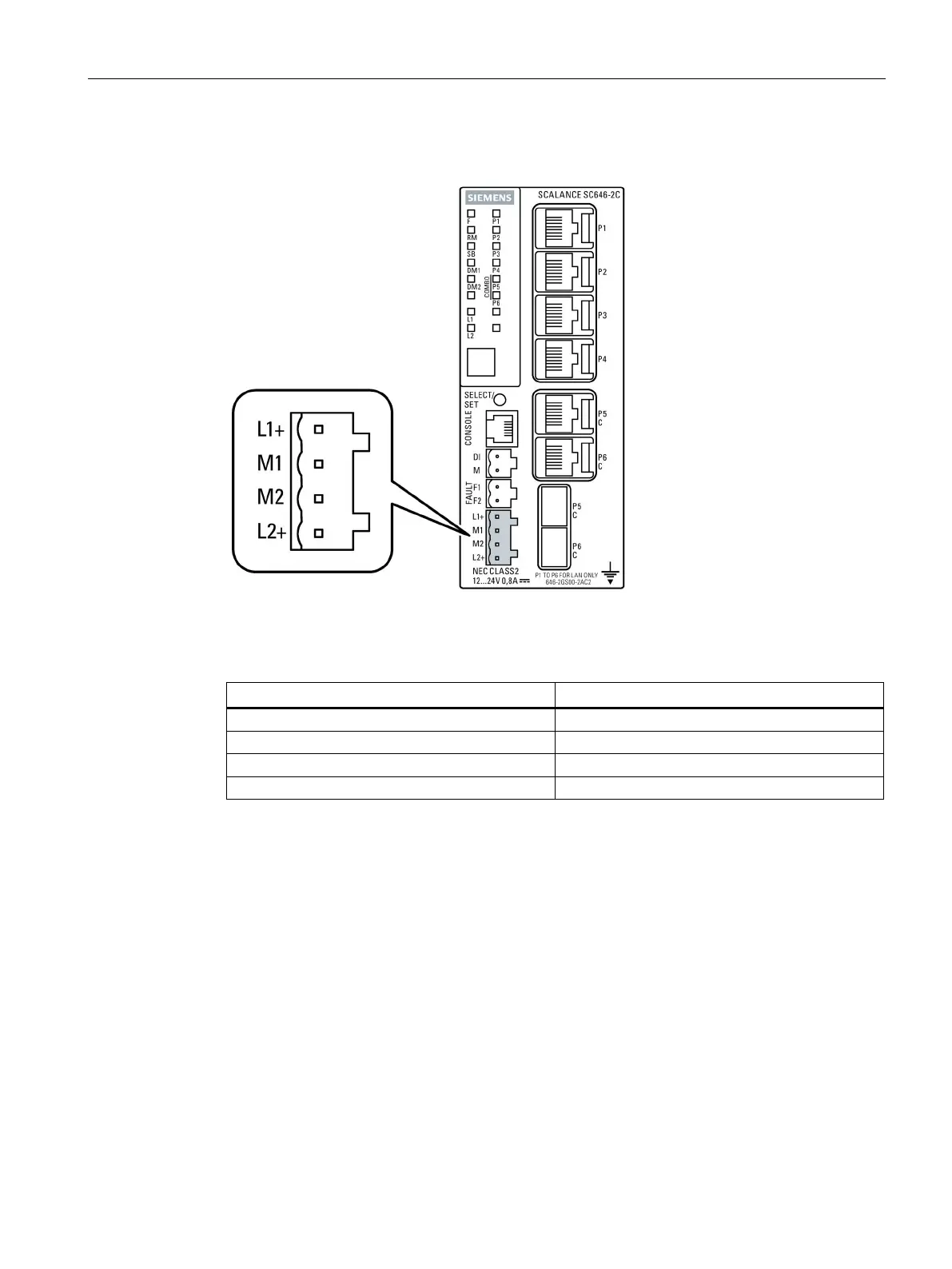

Figure 6-1 Position of the power supply based on the example of the SCALANCE SC646-2C and
the assignment of the terminal block
Contact
Assignment
L1+
24 VDC
M1
Ground
M2
Ground
L2+
24 VDC
