Siemens SIMATIC NET SCALANCE SC-600 User Manual

Connecting
6.4 Signaling contact
SCALANCE SC-600
Operating Instructions, 10/2021, C79000-G8976-C453-04
57
Position and assignment

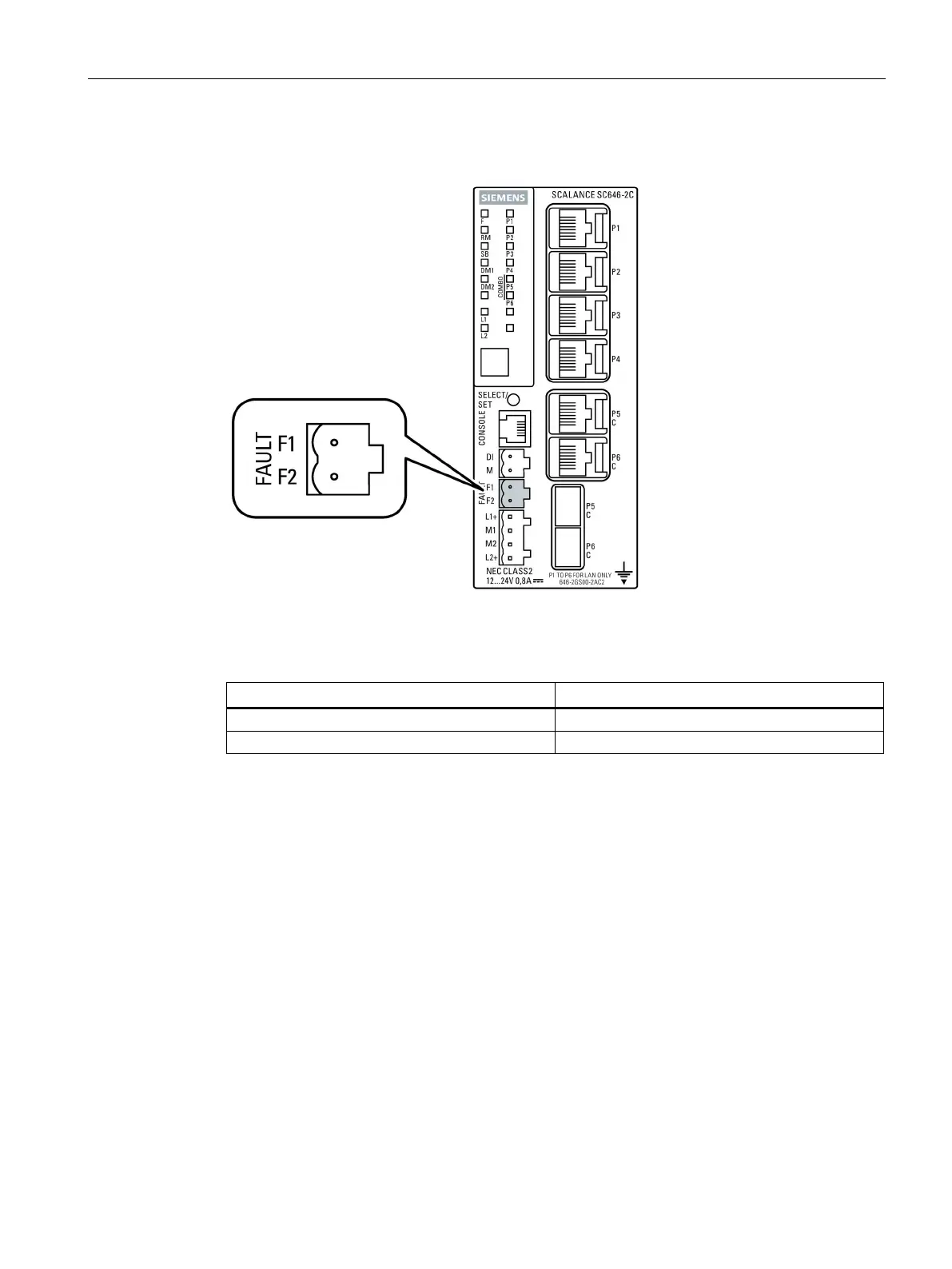

Figure 6-2 Position and assignment of the signaling contact based on the example of the
SCALANCE SC646-2C.
Contact
Assignment
F1
Fault contact 1
F2
Fault contact 2
Signaling of errors at the signaling contact
• The signaling of errors by the signaling contact is synchronized with the fault LED "F",
see section "LED display (Page 30)".
All errors that the fault LED "F" indicates (freely configurable) are also signaled by
the signaling contact.
• If an internal fault occurs, the fault LED "F" lights up and the signaling contact opens.
• If you connect a communications node to an unmonitored port or disconnect it, this
does not cause an error message.
• The signaling contact remains open until one of the following events occurs:
– The problem is eliminated.
– The current status is entered in the fault mask as the new desired status.
