Siemens SIMATIC PCS 7 - Figure 2-2 Overview

Introduction to the CPU 410
2.2 Possible applications
CPU 410 Process Automation/CPU 410 SMART
26 System Manual, 05/2017, A5E31622160-AC

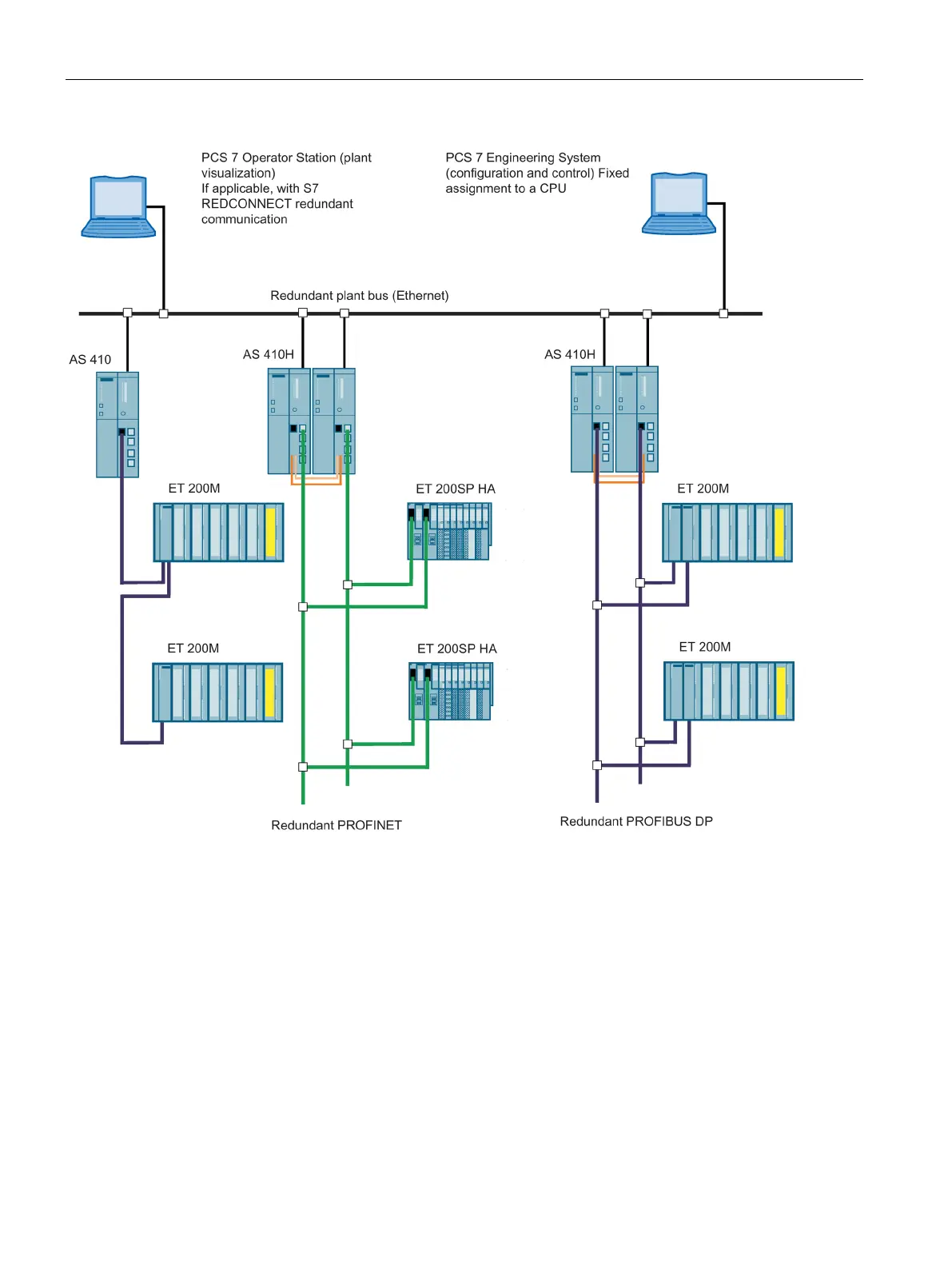

Figure 2-2 Overview
Additional information
The components of the S7–400 standard system are also used in connection with the CPU
410-5H Process Automation. For a detailed description of all hardware components for S7-
400, refer to Reference Manual
S7-400 Automation System; Module Specifications .
