Siemens SIMATIC PCS 7 System Manual

Connection examples for redundant I/Os
C.36 SM332; AO 8 x 0/4...20mA HART, 6ES7 332-8TF01-0AB0
CPU 410 Process Automation/CPU 410 SMART
System Manual, 05/2017, A5E31622160-AC
427
C.36
SM332; AO 8 x 0/4...20mA HART, 6ES7 332-8TF01-0AB0

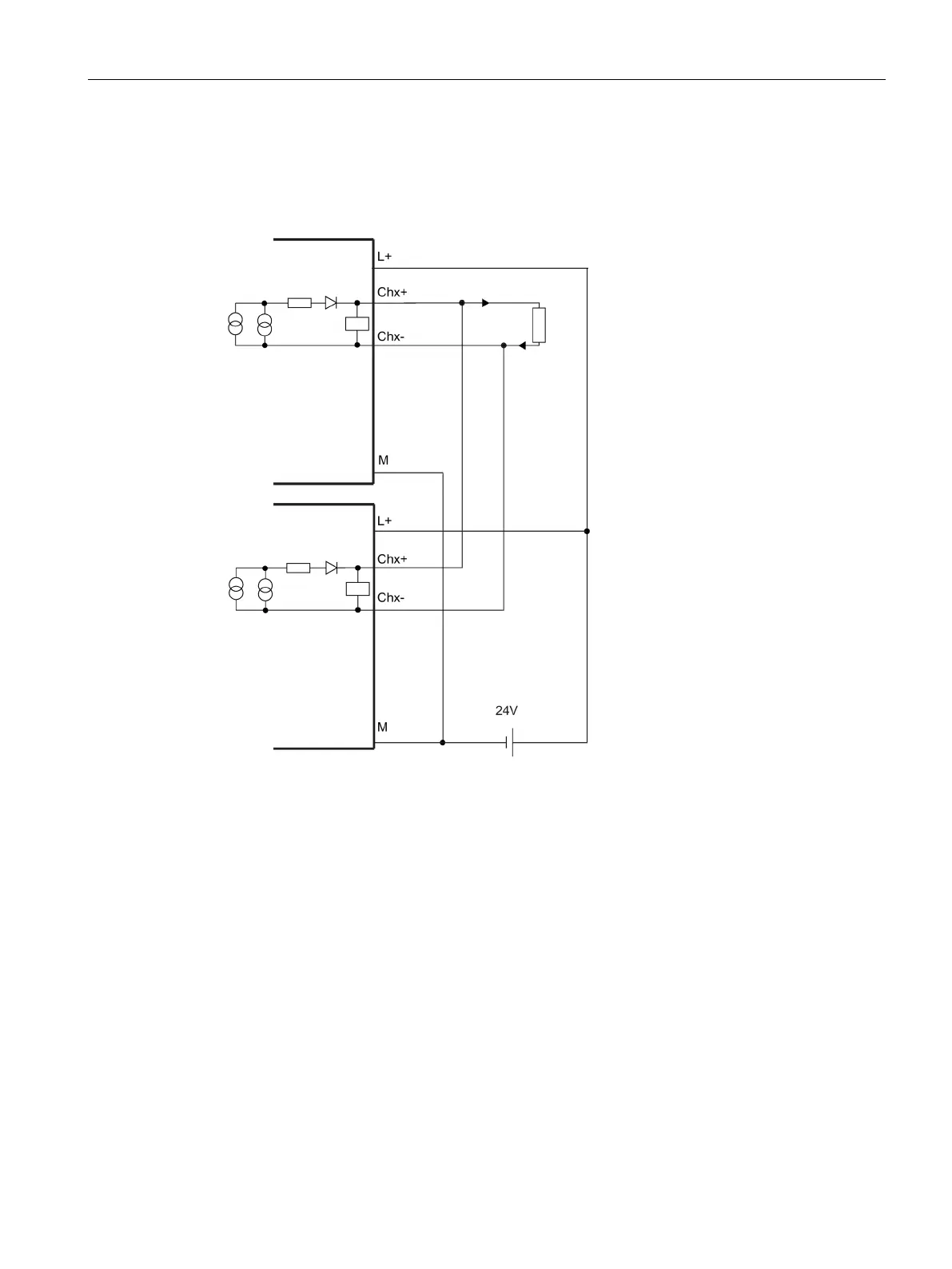

The diagram below shows the connection of an actuator to two SM 332; AO 8 x 0/4...20 mA
HART.
Figure C-35 Interconnection example 3 SM 332; AO 8 x 0/4...20mA HART
