Siemens SIMATIC PCS 7 System Manual

Connection examples for redundant I/Os
C.4 8-channel HART analog output MTA
CPU 410 Process Automation/CPU 410 SMART
394 System Manual, 05/2017, A5E31622160-AC
C.4
8-channel HART analog output MTA

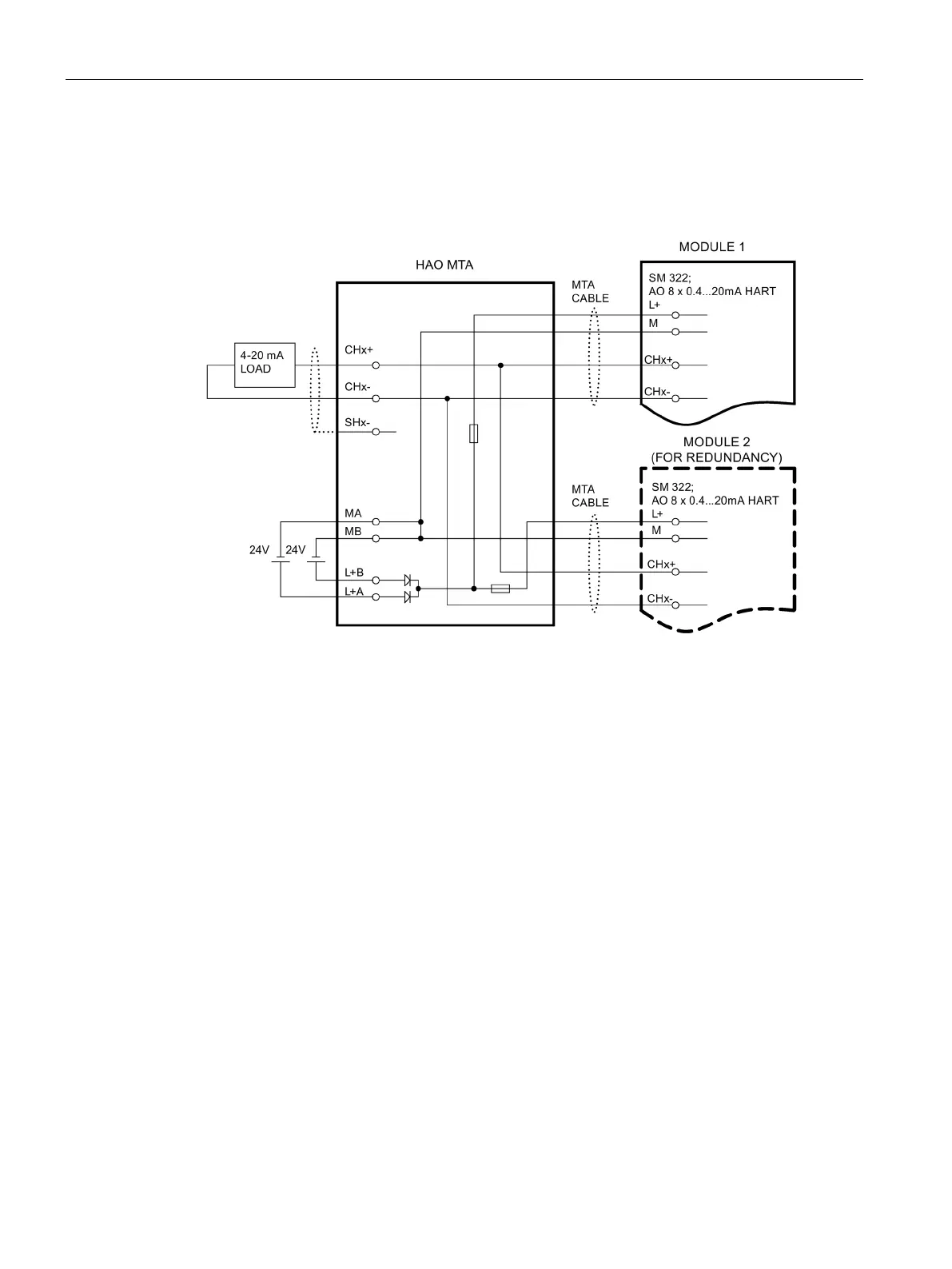

The following figure shows the connection of an encoder to two redundant SM 322; AI 8 x
0/4...20mA HART via an 8-channel HART analog output MTA.
Figure C-2 Interconnection example for SM 322, Al 8 x 0/4...20mA HART
