Connection examples for redundant I/Os
C.11 SM 326; DO 10 x DC 24V/2A, 6ES7 326–2BF01–0AB0
CPU 410 Process Automation/CPU 410 SMART
System Manual, 05/2017, A5E31622160-AC
401
C.11
SM 326; DO 10 x DC 24V/2A, 6ES7 326–2BF01–0AB0

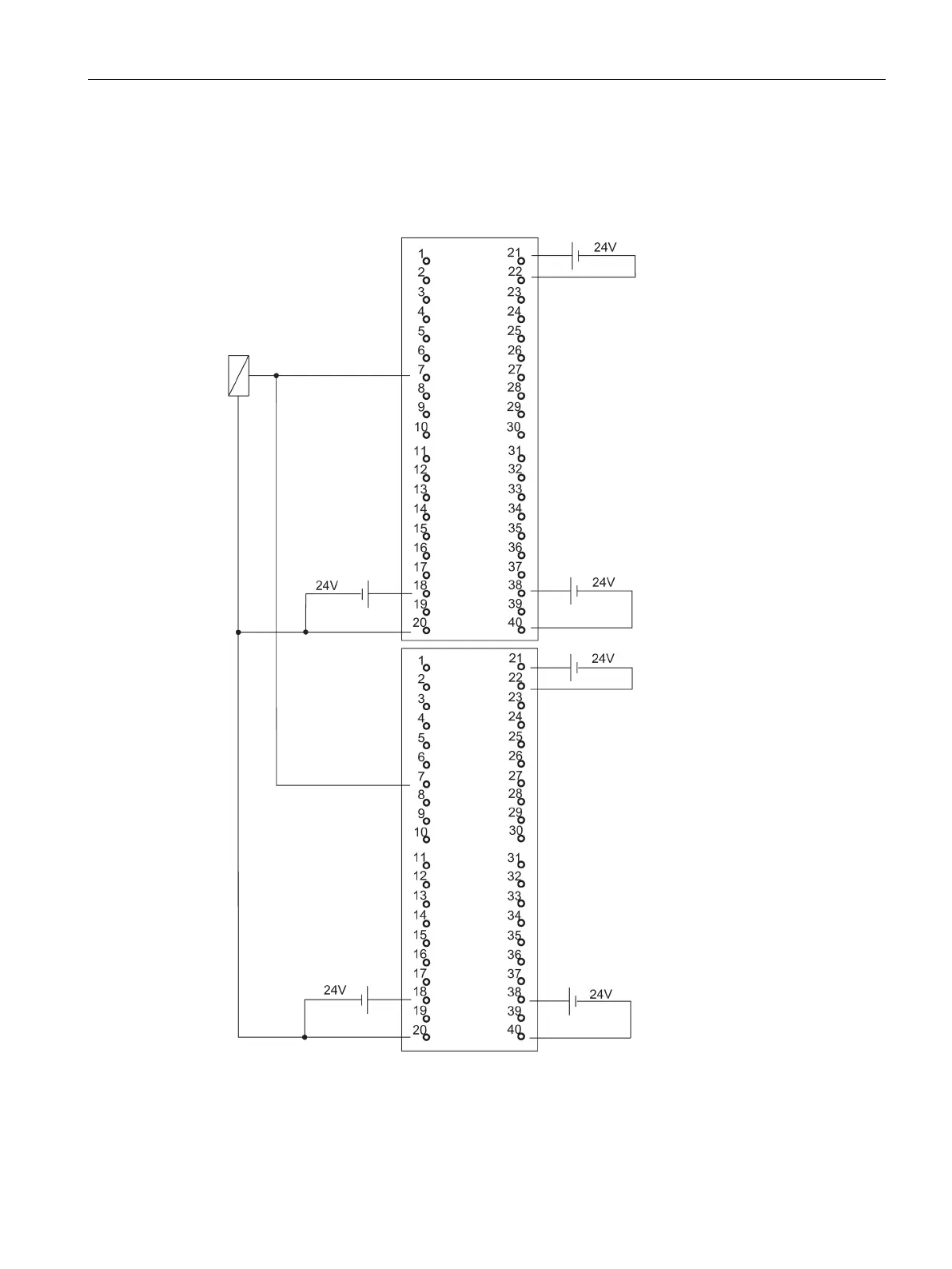

The diagram below shows the connection of an actuator to two redundant SM 326; DO 10 x
DC 24V/2A. The actuator is connected to channel 1.
Figure C-9 Example of an interconnection with SM 326; DO 10 x DC 24V/2A
