1-2
Connecting TM I/O to PCS 7
C79000-G8076-C710-04
1.1 Interface module TPM 478-2
TPM 478-2 is an interface module with the M7-400 technological structure
of the SIMATIC M7 product family. It represents an expansion unit for the
central module FM 456-4, and it is used in the PCS7/TM PLC.
The following functions are integrated in the TPM 478-2 interface module:
• TELEPERM M I/O functionality.
A highly efficient processor controls the access functions to TELE-
PERM M I/O modules via a periodically updated process image. This
process image fetches input process data it writes them to the outputs of
the hardware I/O.
Process image data is transferred from the TPM 478-2 to the user pro-
gram via driver blocks.
• two I/O bus interfaces for the TELEPERM M basic and expansion cabinet
• I/O bus logic supply with a +5 V bus.
The TPM 478-2 interface module interconnects existing TELEPERM M I/O
hardware of the basic and expansion cabinet of an AS 220/230/235 system.
Here, the basic central unit is replaced with a preinstalled module rack - na-
mely the migration rack - which contains a system PCS7/TM and the add-on
components TPM 478-2 and FM456-4.
It provides the I/O bus connections A and B for existing expansion units.
Data are exchanged with existing expansion unit via I/O bus A and B of
TPM 478-2. See Figure 1-1.
PROFIBUS /
Ethernet
PCS7/TM
I/O bus A
I/O bus B
Basic cabinet
Expansion cabinet
TPM478-2
Migration rack
AS 220/230/235
PS
CPU416-2DP
TPM Interface module
PS Power supply module
CPU
Central module
FM456-4
CP443-5 /
CP443-1

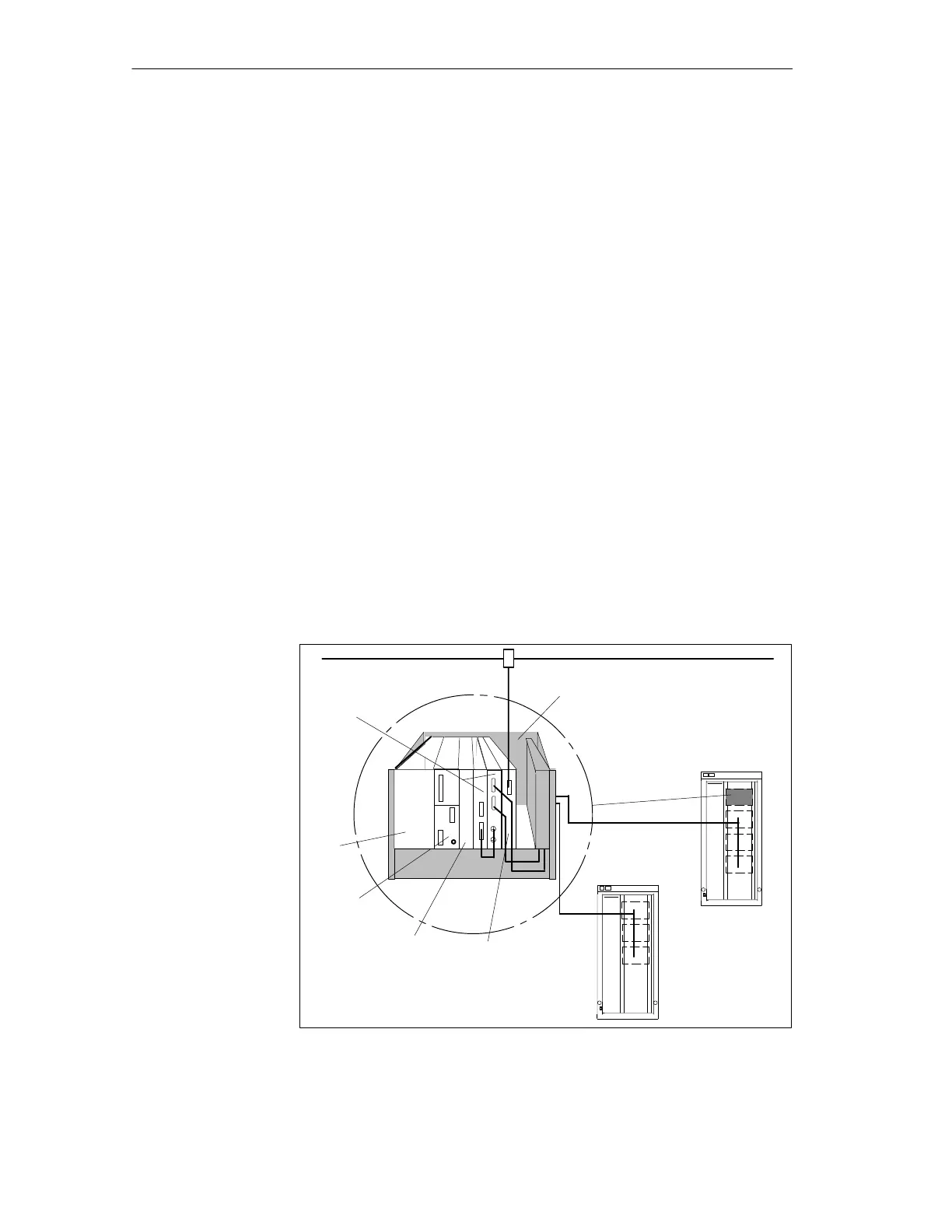

Figure 1-1 TPM 478-2 for the connection of TELEPERM M I/O modules
General
functions
Connecting
TELEPERM M I/O
Hardware structure
