2.1.4 Status displays

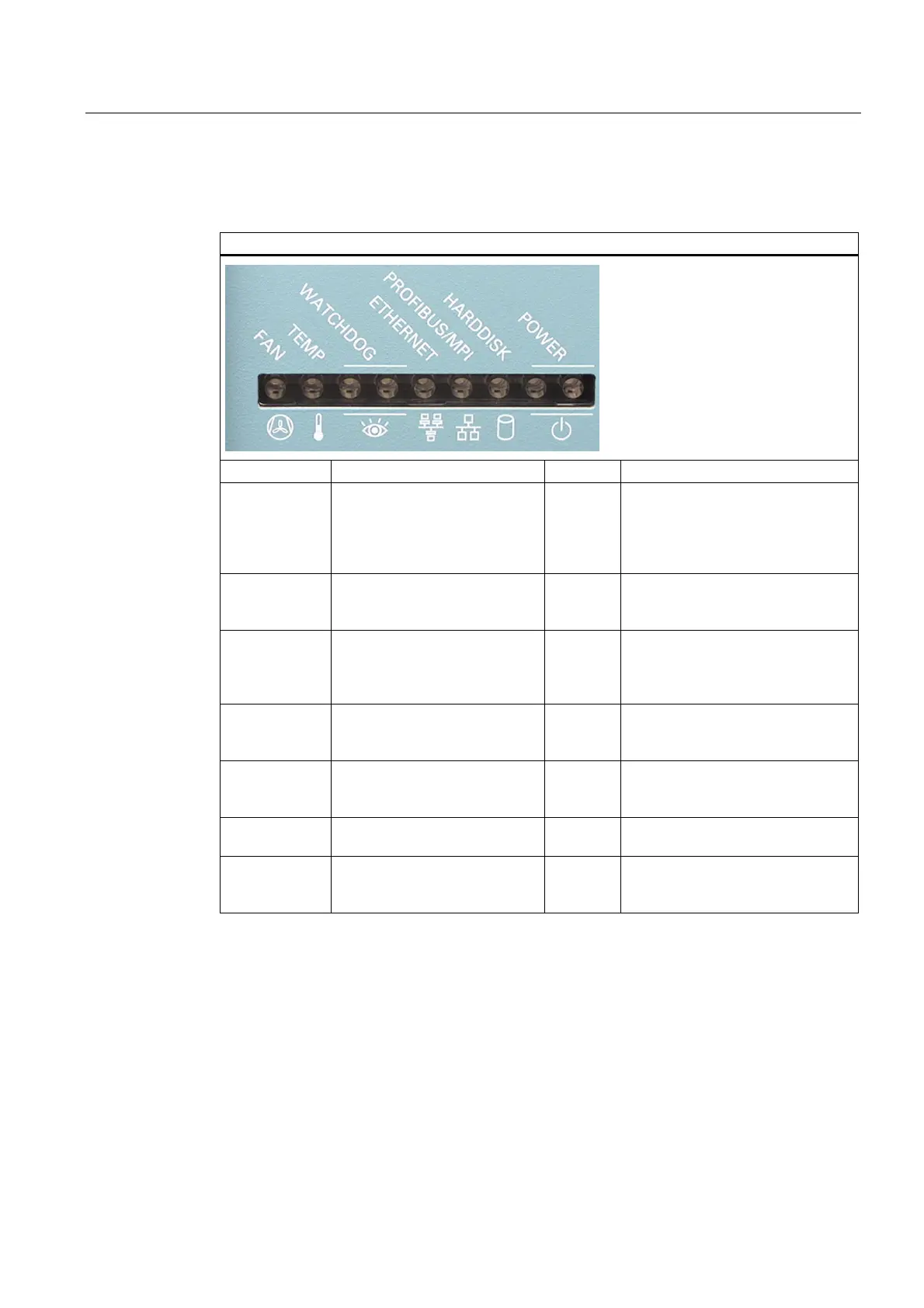

Status displays
Display Meaning LED Description
FAN CPU fan status (available only
with active SOM or DiagMonitor
software)
OFF
RED
-Fan speed OK
-CPU not started
(see error dialog)
-Fan speed too low
(see error dialog)
TEMP Internal temperature monitoring OFF
RED
-Internal temperature OK
-Internal temperature is critical
(see error dialog)
WATCHDOG WATCHDOG status display OFF
GREEN
RED
-WATCHDOG disabled
-WATCHDOG monitoring enabled
-Time-out (see error dialog)
ETHERNET ETHERNET status display OFF
GREEN
-not connected
-no data transfer
-data transfer
PROFIBUS/MPI Display of the communication
status to the S7 or PROFIBUS
OFF
GREEN
-not connected
-no data transfer
-data transfer
HARDDISK Display for hard disk access OFF
GREEN
-no access
-access
POWER PC status display OFF
YELLOW
GREEN
-disconnected from mains
-Standby (hibernate)
-PC in operation
