SIMATIC Rack PC 840 V2
Getting Started, Edition 04/2004, A5E00248069-02
4-1
Installation
4
4.1 Installing the device
Possible areas of installation
The device may be installed in control desks, switching cabinets and 19`` rack systems.
Possible mounting methods
Options of mounting the device
• Mounting on angle brackets
• Mounting with telescopic rails
When telescopic rails are used, the devices can be completely removed from the cabinet
or rack.
Refer to the sections "Technical data of the telescopic rails" and "Dimensional drawing for
the use of telescopic rails" for more detailed information.

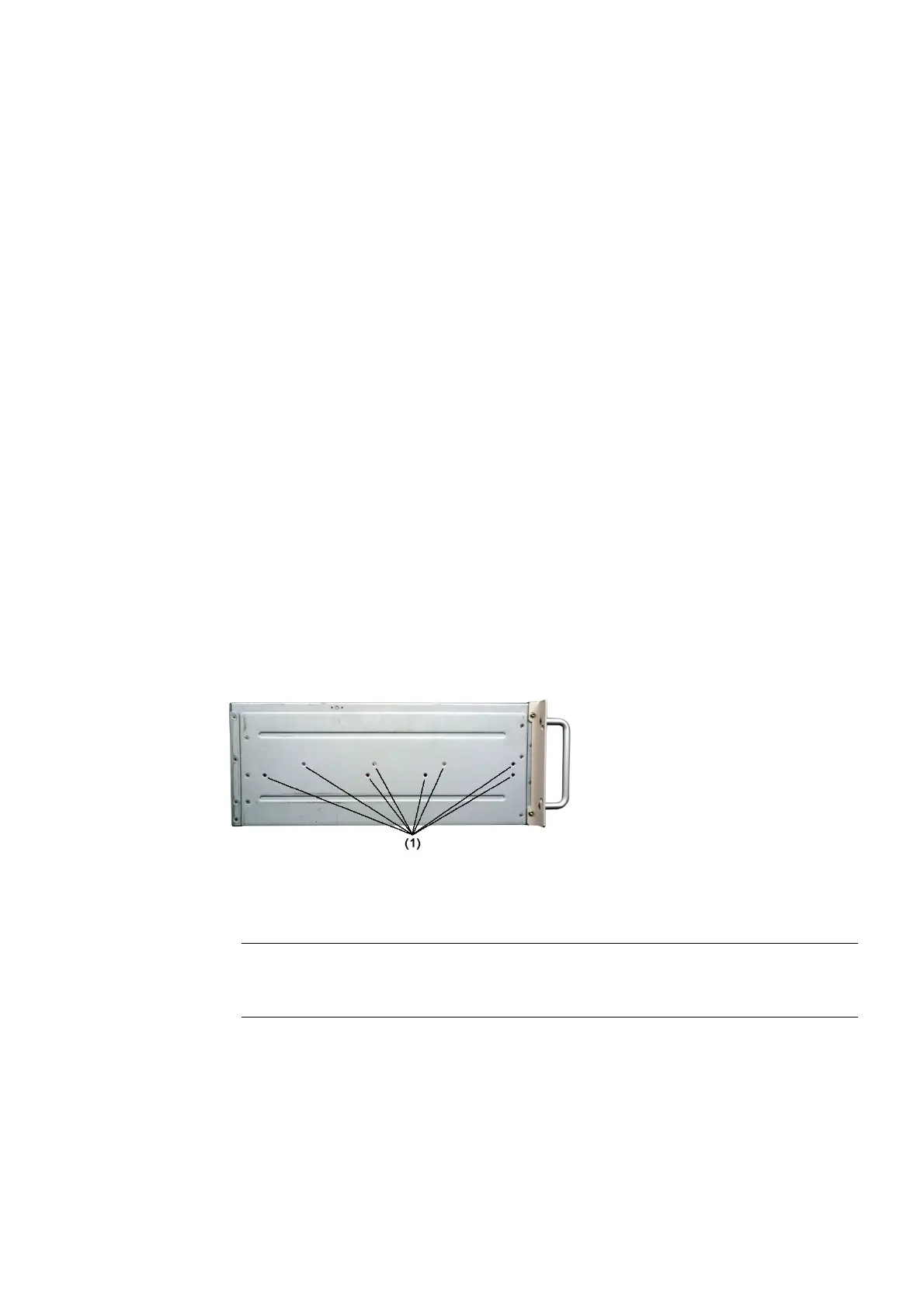

Figure 4-1 Position of the mounting holes for angle brackets or telescopic rails
Caution
The mounting screws of the telescopic rails may not protrude into the enclosure by more
than 5 mm.
