Siemens SIMATIC S7-1500T Safety Programming Guideline

4 Optimizing Safety Programs
Safety Programming Guideline
Entry ID: 109750255, V1.0, 10/2017
40
 Siemens AG 2017 All rights reserved
Recommendation
 Where possible, avoid jumps in the safety program.
 Use state machines instead of jumps in FBs with binary logic.

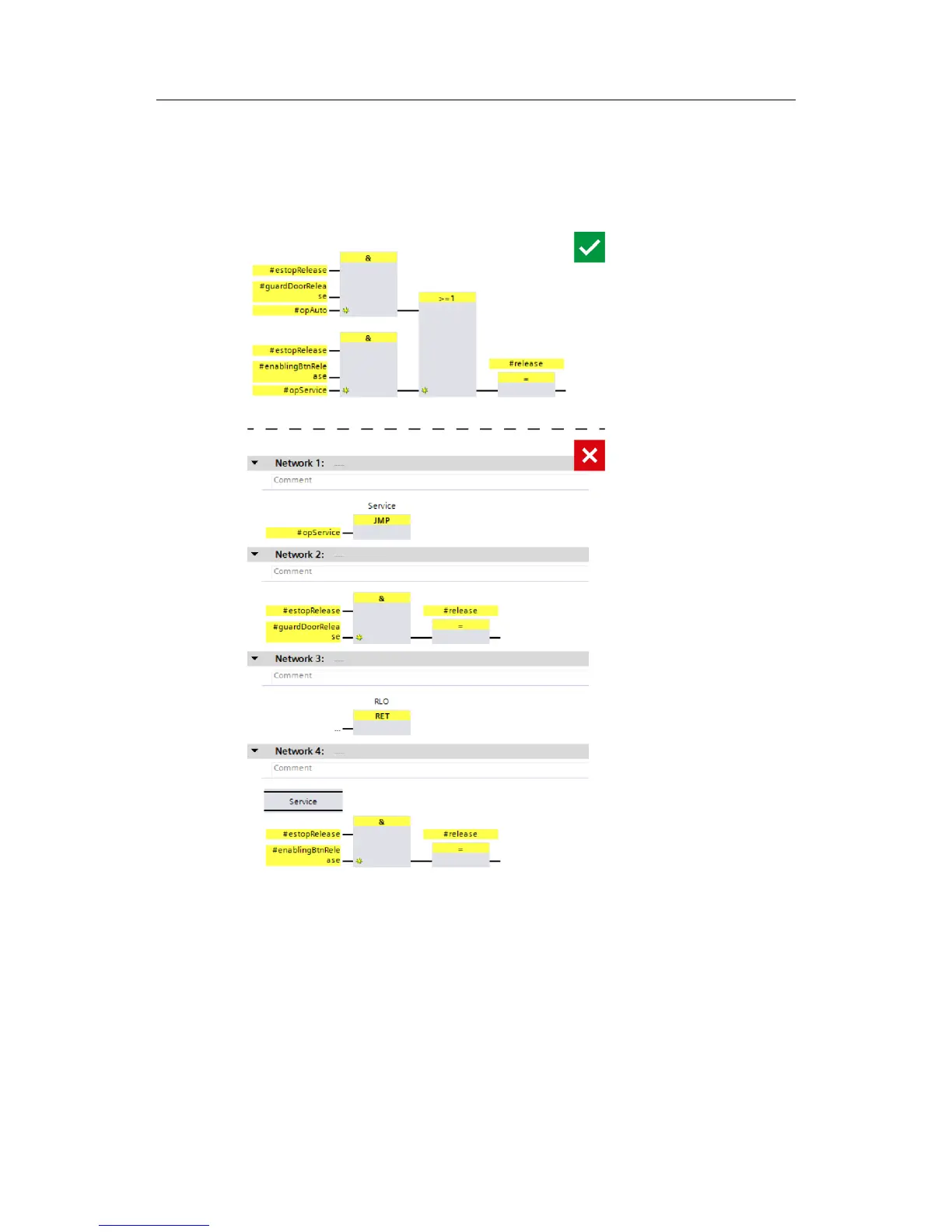

Figure 4-3: Avoiding jumps
