Application and functions
1.8 Configuration examples
CP 443-1 OPC UA
22 Operating Instructions, 01/2017, C79000-G8976-C427-02
Logging process data as OPC UA server
In this configuration as the OPC UA server, the CP makes manufacturing or process data
from S7 stations available to a higher-level system.
Higher level systems can, for example, be PC stations with an OPC UA application,
database systems or HMI systems from third-party manufacturers. They must support the
OPC UA client service "Read".

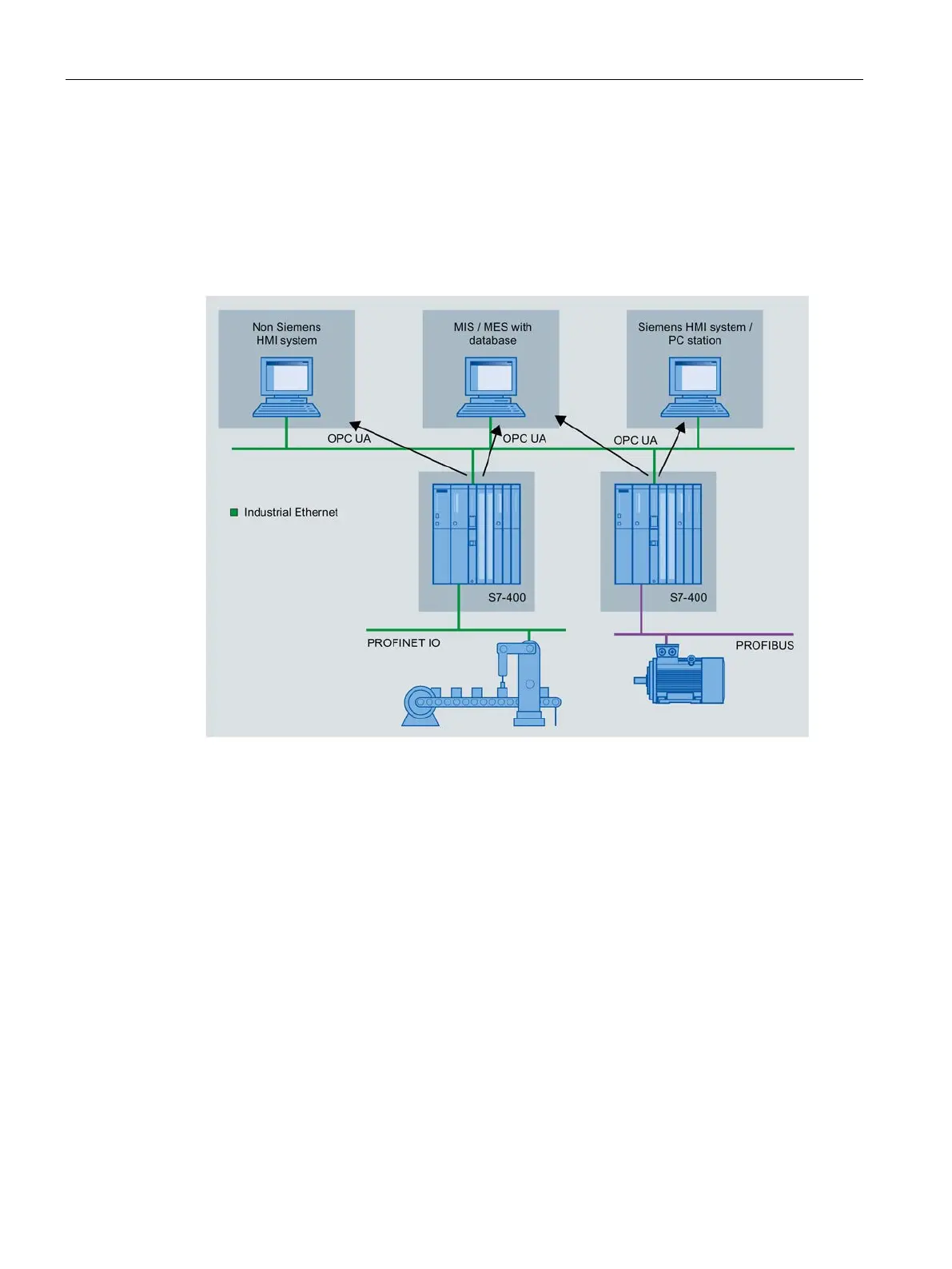

Figure 1-1 CP 443-1 OPC UA as OPC UA server
