3.2.1 Equability test
Parameter description
Parameters for conducting an equability test:
Function Description Type
Name Name of the measurement series
(measurements do not have a name).
INPUT
Channel Selection of the required channel. The channel
defines the possible machine axes in the "Axis"
selection list.
SELECTION
Axis Selection from the possible machine axes that
can be programmed in the selected channel.
SELECTION
Start point The axis position at which the first partial
movement of the measurement begins.
INPUT
End point The axis position at which the first partial
movement of the measurement ends.
INPUT
Feedrate Speed per minute at which the axis is moved. INPUT

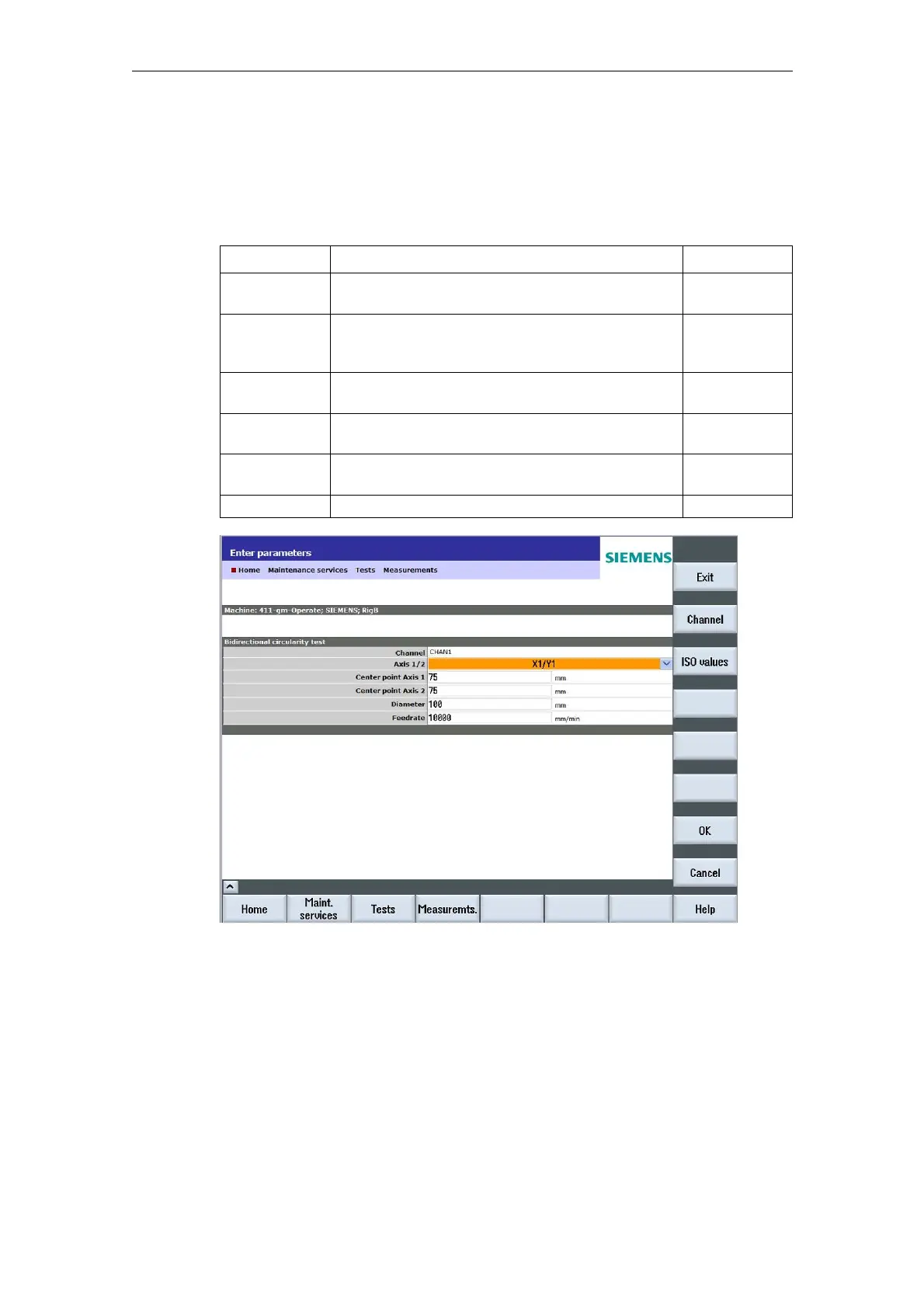

Fig. 3-10: Equability test on the operator panel
