03/2013 2 Machine information
2.1 Machine overview
© Siemens AG 2006-2013 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
2-27
2.1.5 Evaluation of diagnostics data
Function description
SINUMERIK Integrate provides evaluation tools for the data acquired from the
actions. These are either a text viewer (e.g. for machine data) or contain graphic
views (e.g. PLC trace). A comparison tool is available for the machine data, NC
status data, and HMI action log data types of diagnostics data. You can switch
directly between different diagnostics data records of an event.
The following evaluation tools are available for the various diagnostics data:
• Viewing file lists
• Viewing HMI action log
• Viewing machine data
• Viewing NC status data
• Viewing PLC trace (the configurable view provides evaluation functions)
• Viewing PLC data block/list
• Visualize variable monitors
• Saving archives
• Feedback to PLC

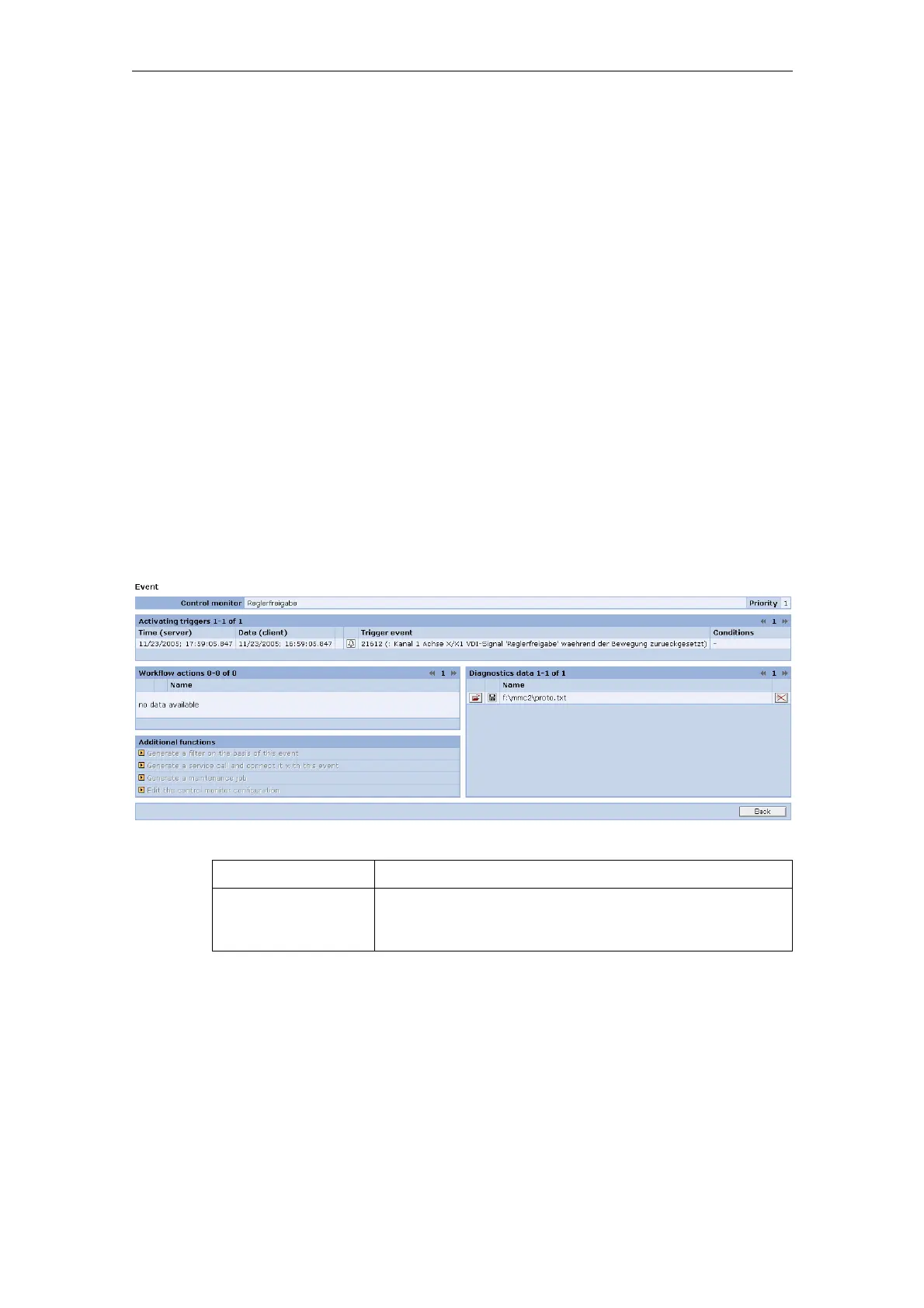

Fig. 2-6: Display of recorded diagnostics data
Function Description
Diagnostics data You can switch directly from viewing data for one action to
viewing data for another, provided that it belongs to the
same machine event.
