Watch – Stopwatch variable DISPLAY
Details All details of the user-defined variable that can
be displayed in the column.
DISPLAY
Last
measurement
Indicates when a value was last determined for
the variable.
DISPLAY
Value Shows the last determined value for the user-
defined variable.
DISPLAY

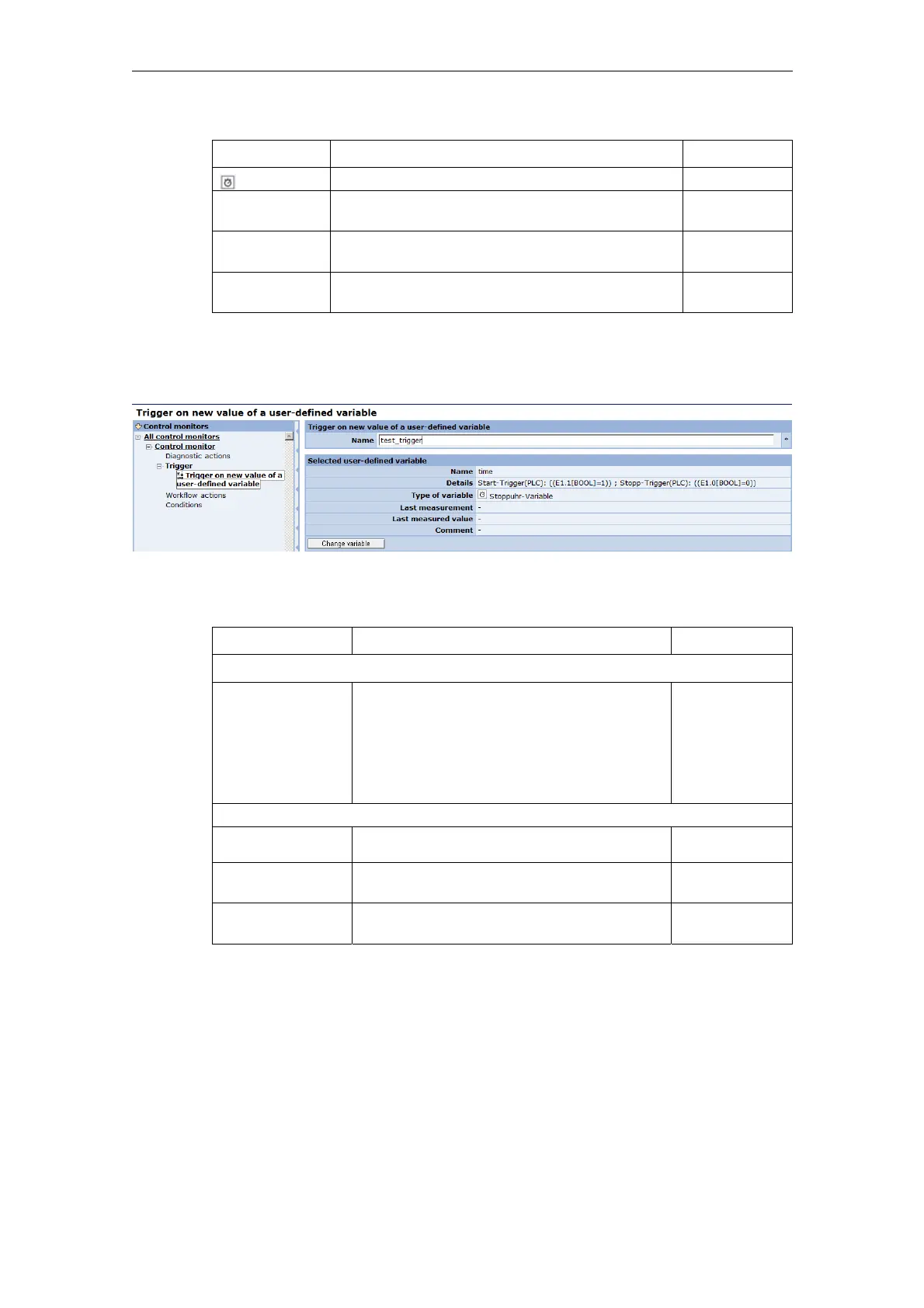

Detailed view of the new value of a user-defined variable
Fig. 3-33: Trigger - Detailed view
Function Description Type
Trigger on a new value of a user-defined variable
Name Name of the trigger: If a name is not
entered, the name of the user-defined
variable is used for the trigger.
DISPLAY
INPUT
(max. 40
characters, all
characters are
permissible)
Selected user-defined variable
Name Name of the user-defined variable. DISPLAY
Details Shows all details of the logic used for
determining the user-defined variable.
DISPLAY
Type of the
variable
The type of the variable, e.g. a stopwatch
variable.
DISPLAY
