3.4 Fault Services
© Siemens AG 2006-2013 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
3-185
Function Description Type
Comment Individual input of a comment to describe the
archive.
DISPLAY
INPUT
(max. 200
alphanumeric
characters)
Archive type
• Series start-
up
Two different archive types can be generated.
A series start-up archive that corresponds exactly
to the operating software and contains NC, PLC,
HMI and drive data.
SELECTION
DISPLAY
• Generic
A generic archive that contains arbitrary
individual files or paths of the control's file
system.

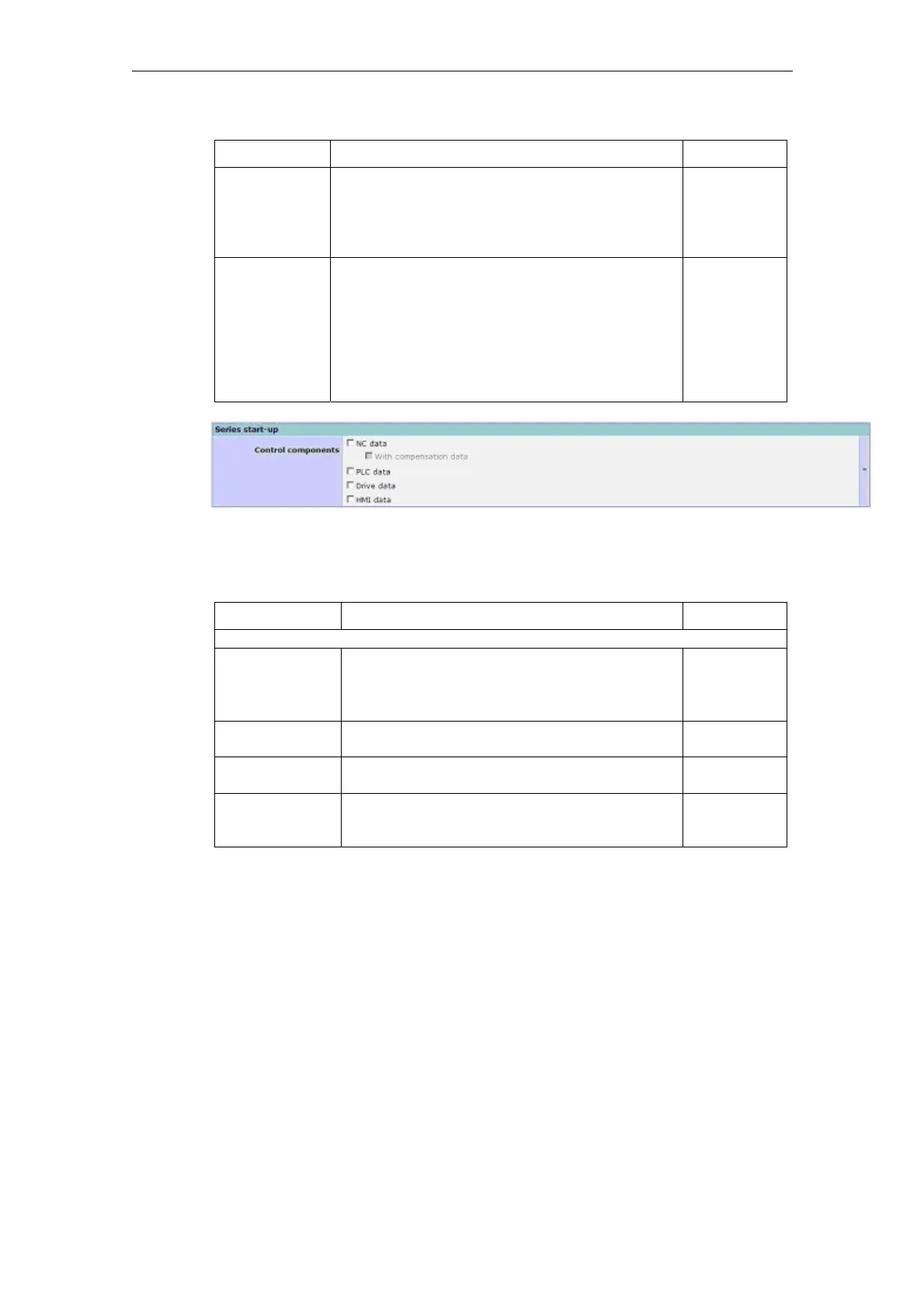

Fig. 3-68: Series start-up archive
The archive components can created and uploaded either individually or together.
If several archives are selected, they are saved as one archive.
Function Description Type
Archive type: Series start-up
• NC data
- With
compensatio
n data
The archive of the NC data contains all the NC
programs and data, optionally with
compensation data.
SELECTION
• PLC data
The archive of the PLC data contains the
complete STEP 7 logic of the PLC.
SELECTION
• Drive data
The archive of the drive data contains the
machine and drive data.
SELECTION
• HMI data
The archive of the HMI data contains the
operating software and screens of a PCU or
TCU.
SELECTION
