5 Statistics/export 03/2013
5.1 Multi-machine views
© Siemens AG 2006-2012 All Rights Reserved
5-244 SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
Click on the "Open" icon in the line concerned to select the measurement series.

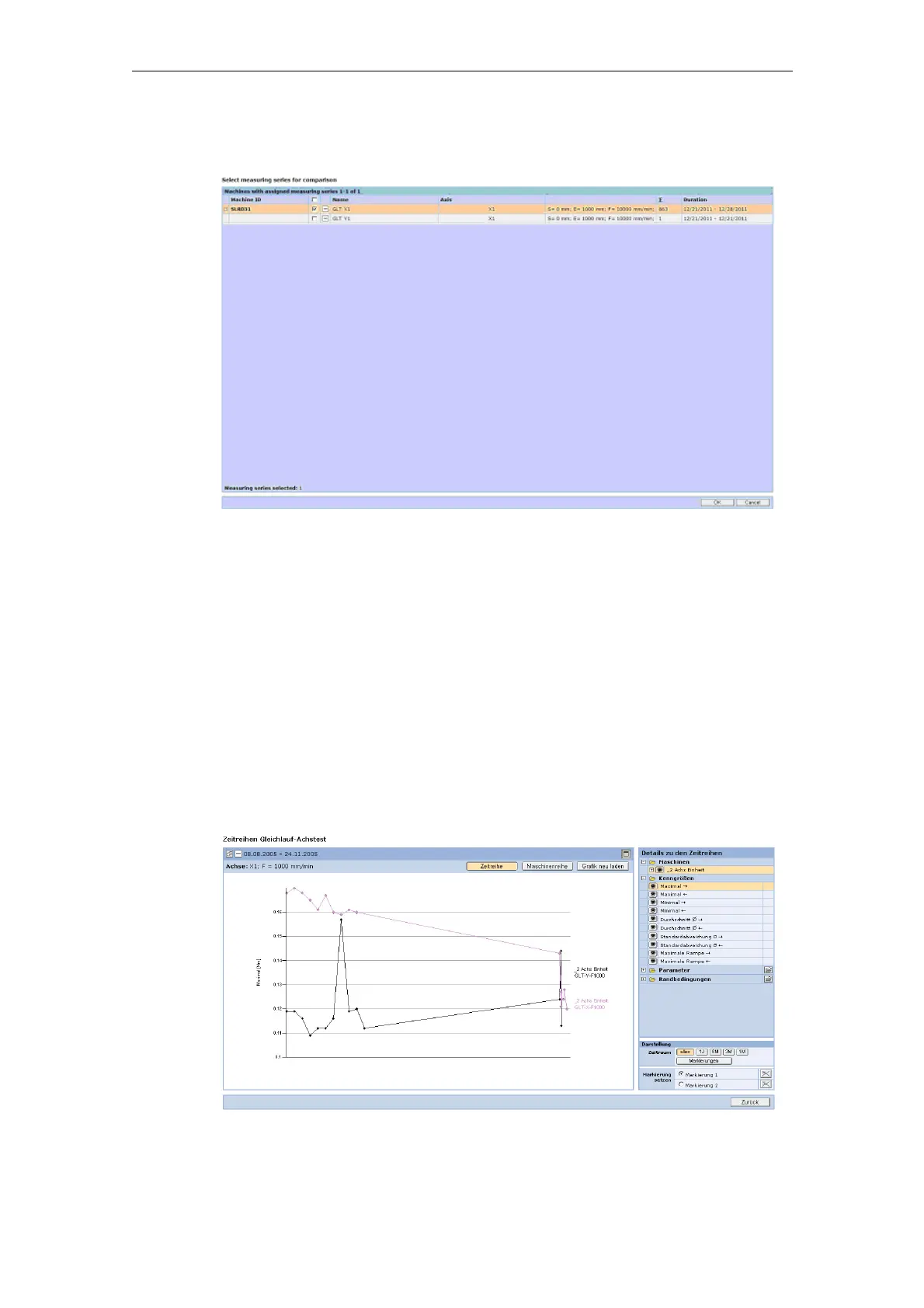

Fig. 5-11: Comparing measurement series of the selected measurement series group
In an overview, the system shows all measurement series examined in one
comparison grouped by machines. In this overview, the selection of the
measurement series to be examined in the comparison function can be changed.
The system makes a preselection, to the effect that from each machine only one
measurement series will be considered for displaying. The criteria for this
preselection is the number of measurements contained in the measurement series.
For each machine, the measurement series with most measurements will be
marked as selected. By selecting, this preselection can be overwritten as required.
Displaying measurement series
In order to display measurement series in a diagram, the machine operator must
select the required characteristic from the table. The system generates a diagram
that shows the progress in time of the selected characteristic for each
measurement series considered in the comparative display. There are various
functions available for changing the diagram or displaying detailed information.
Fig. 5-12: Displaying the measurement series as time series
