Function Description
Depending on the resolution, they can be positioned on a
cycle-specific basis; the minimum level of precision that can
be set is the pixel level, where all cycles appear between the
markings. All cycles between the markings are included.
The PLC trace data can be exported as a file for further
processing.
The PLC trace data can be printed on an installed printer.
The window for the PLC trace display can be
maximized/minimized.

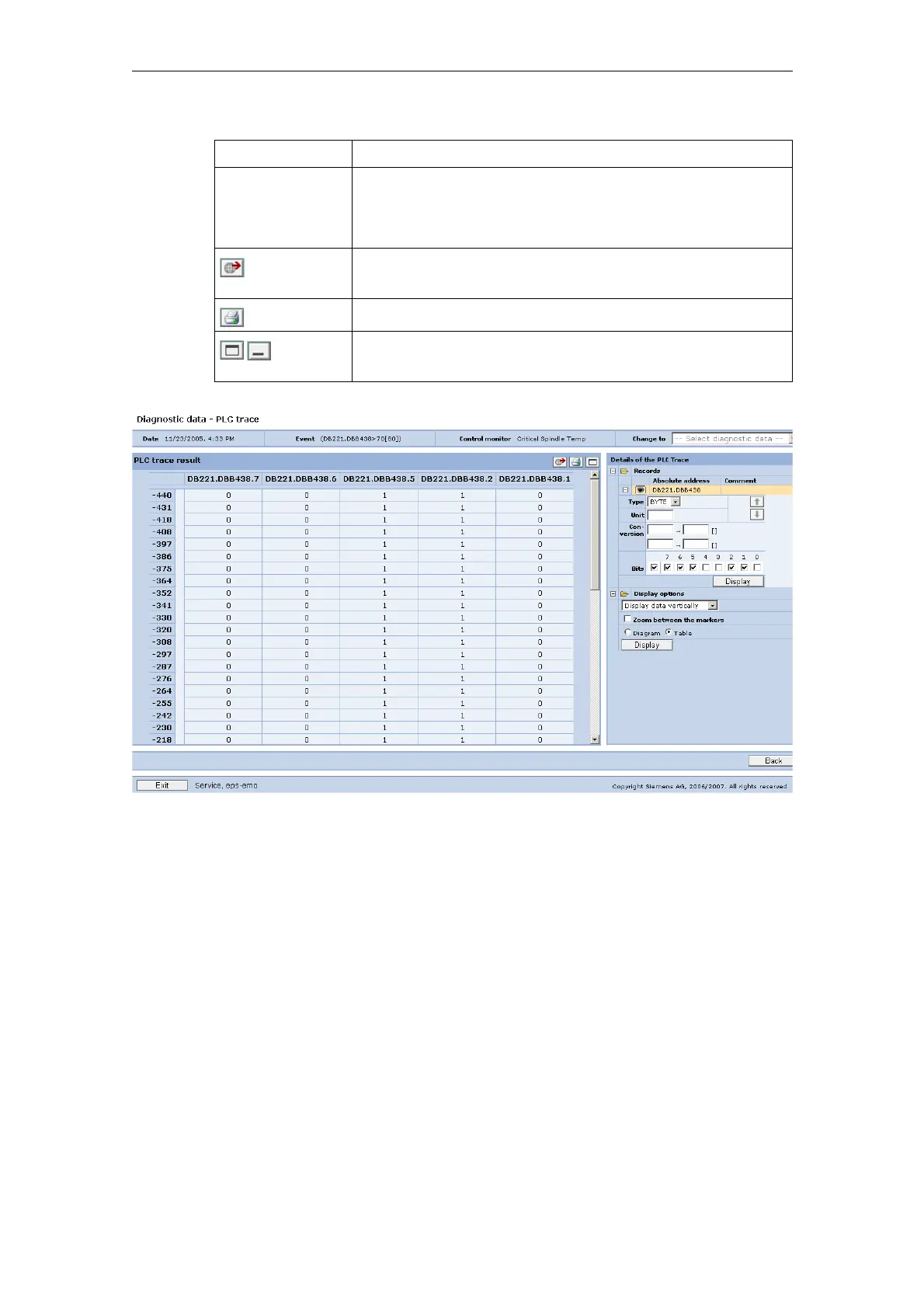

Fig. 2-12: PLC trace values displayed vertically
