2 Machine information 03/2013
2.3 Test series on the machine
© Siemens AG 2006-2013 All Rights Reserved
2-70 SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
Measurement:
Execute the axis test with 100% override and NC automatic, no stop.
Function Description Type
Contour
test
A contour test can be run to check that the
measurement part program is collision-free before
actual measurement.
The contour test can also be carried out with the
function "single block execution" active.
ACTION
Measurem
ent
Selection of the "Measurement type" tab. The
measurement can be performed once the notes
have been read and understood.
ACTION

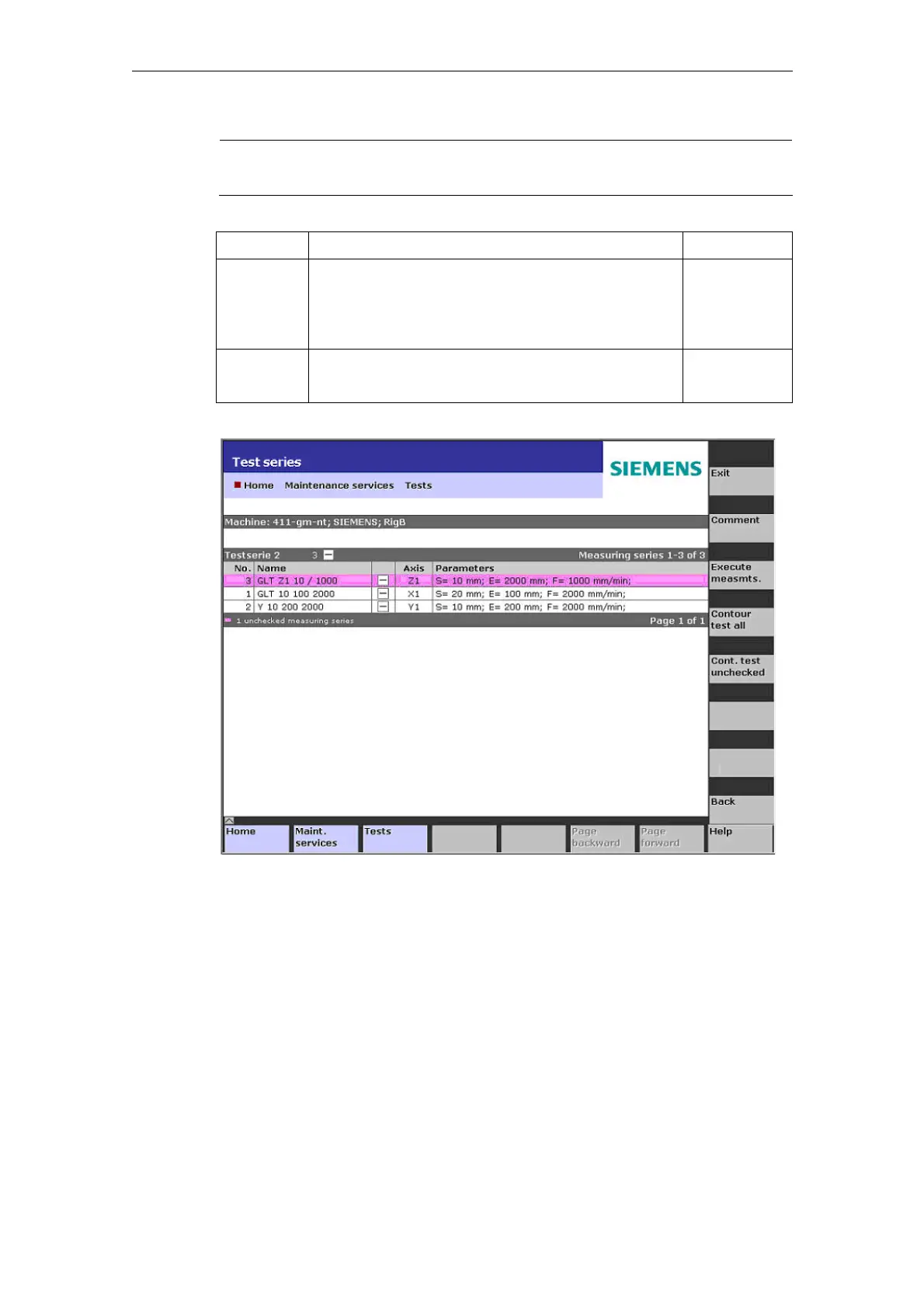

Fig. 2-43: Measurement series of a test series
