1.2 Function overview and differences between 75 W/300 W
1-24
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition

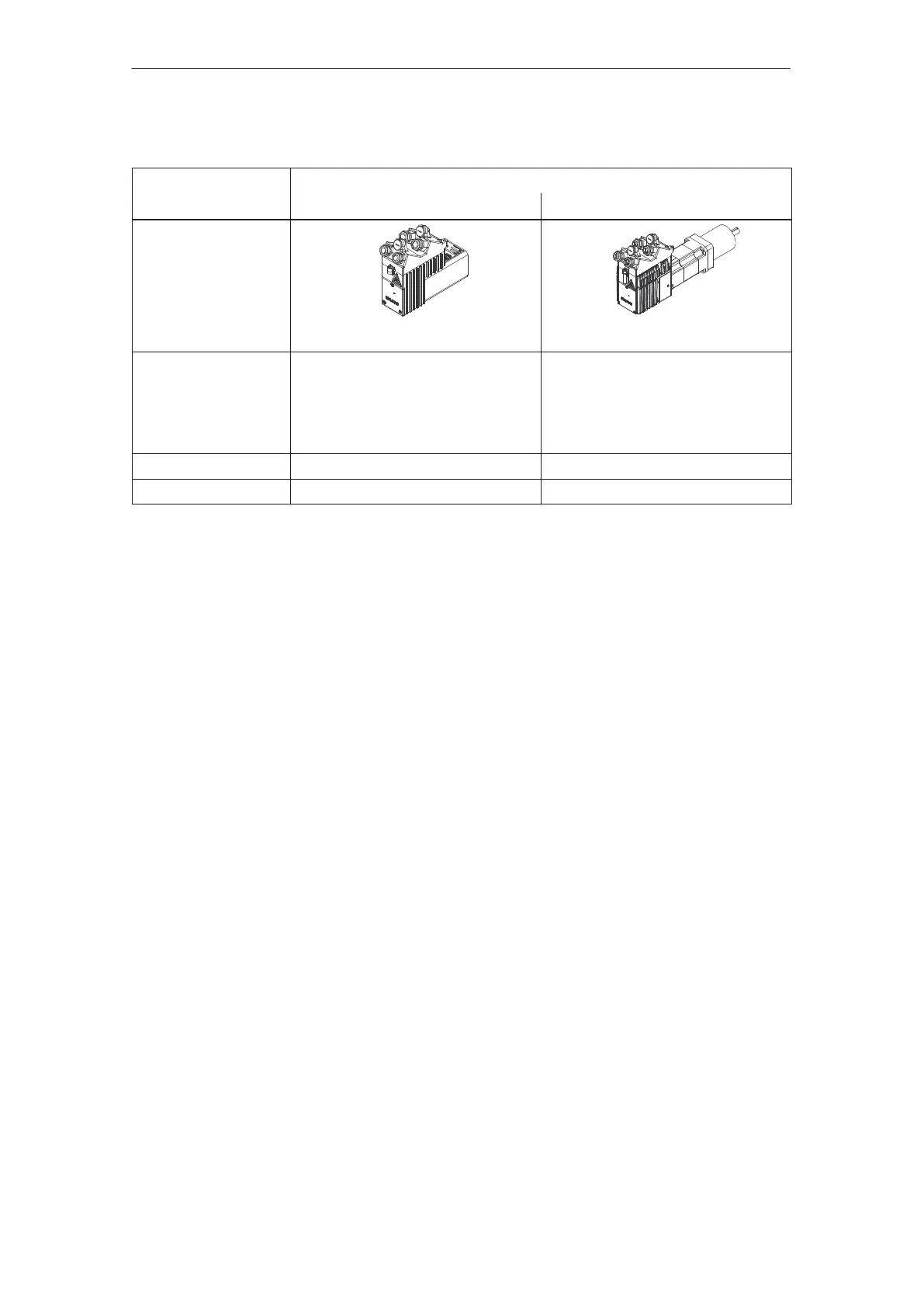

Table 1-1 Difference: POSMO A with 75 W and 300 W, continued
SIMODRIVE POSMO A
Designation 300 W75 W
Dimensions
(without gearbox)
(approximate data)
L
H
W
L
H
W
L = 202, W = 71, H = 163 [mm] L = 254, W = 80, H = 172 [mm]
Weights
(approximate data)
Motor without gearbox: 3.1 kg
Motor with 1–stage gearbox: 3.5 kg
Motor with 2–stage gearbox: 3.7 kg
Motor with 3–stage gearbox: 3.9 kg
Motor with worm gear: 3.5 kg
Motor without gearbox: 3.9 kg
Motor with 1–stage gearbox: 5.1 kg
Motor with 2–stage gearbox: 5.4 kg
Motor with 3–stage gearbox: 8.2 kg
Shaft end (motor) Without keyway Without keyway or with keyway
Technical data ––> Refer to Chapter 2.6.1 ––> Refer to Chapter 2.6.2
