Siemens SIMODRIVE POSMO A User Manual

2
2.6 Technical data
2-67
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
2.6.2 Technical data for SIMODRIVE POSMO A – 300 W

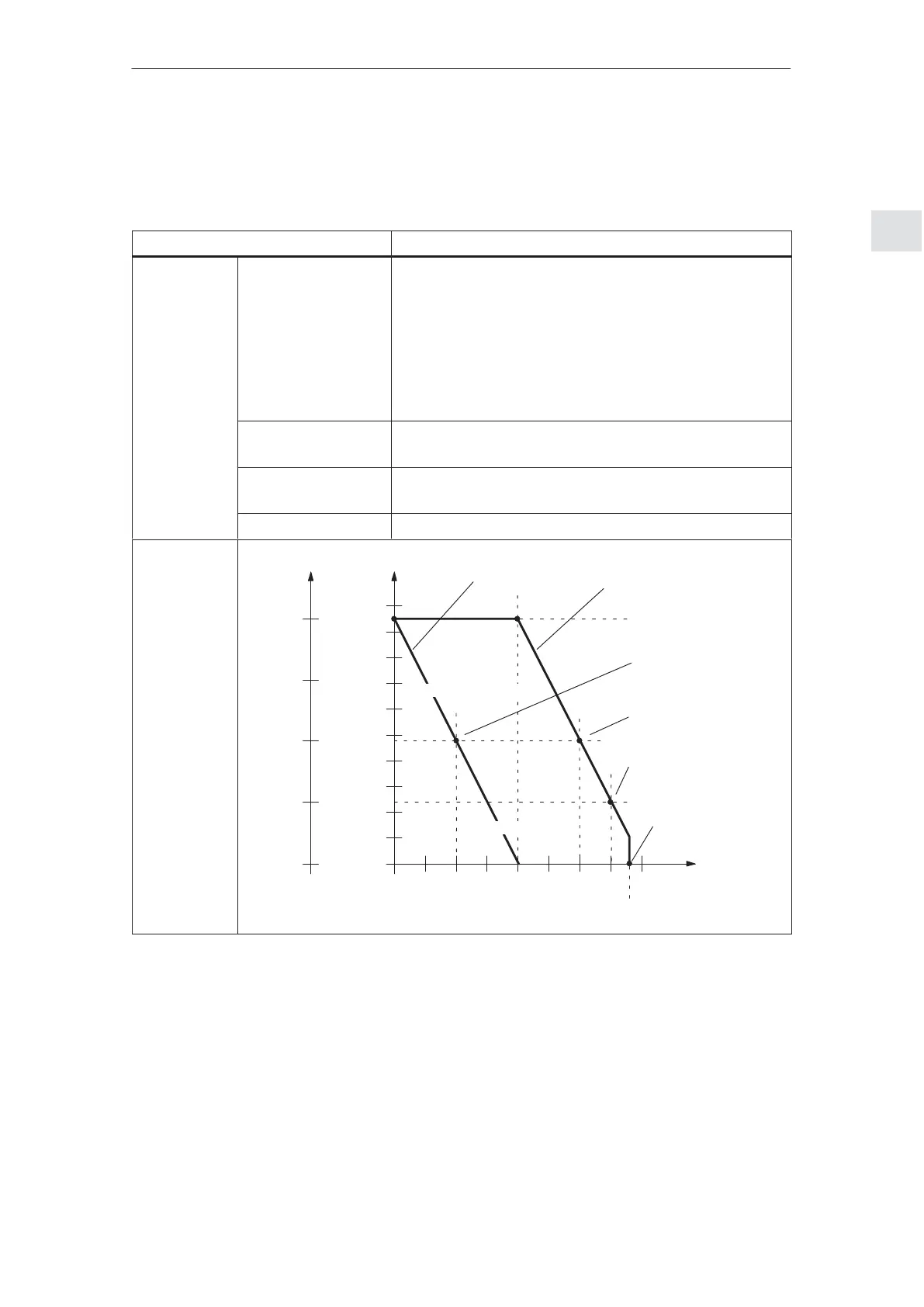

Table 2-7 Technical data for the POSMO A – 300 W positioning motor
Designation
Description
Electrical
data
Load power supply Supply voltage: 48 VDC  20 %
24 VDC  20 % (optional)
Power consumption:  5.25 A (with S1)
Note:
S A supply voltage less than 48 V means:
––> lower speed
S For motors with integrated holding brake, the power supply
voltage must be > 24 V DC.
Electr. power supply
(optional)
Voltage: 24 V DC  20 %
Current drain: 500 mA
Digital inputs Voltage: 24 V DC  20 %
Current drain: 15 mA
Digital outputs Maximum current/output: 100 mA
Torque/speed
characteristic
Motor
M/n
characteristic
Motor without
gearbox
n
[rev/min]
2000
Speed limit = 3800
I [A] M [Nm]
Current limit S3
Rated operating point
48 V, 300 W
21.0
1000 40003000
0.4
0.8
1.2
1.6
2.0
5.25
Current limit S1 (I
2
t)
Voltage limiting
characteristic 24 V
Voltage limiting
characteristic 48 V
Rated operating point
24 V, 100 W
10.5
15.75
0.0 0.0
S3 intermittent duty
S1 continuous duty
Continuous output
176 W
0.95
1.9
No–load
operating point
2 Installing and Connecting–Up
02.9904.01
